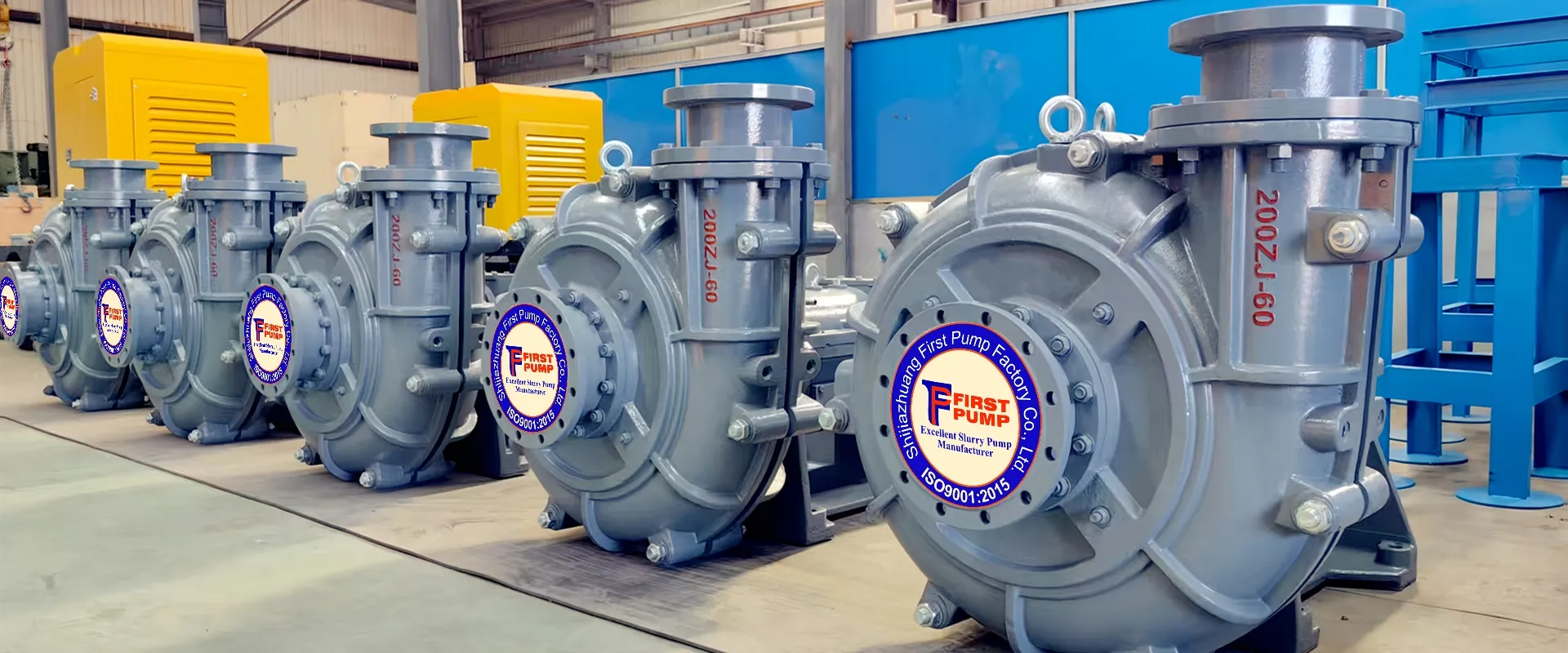

Heavy-duty Slurry Pumps Manufacturer

The lifespan of slurry transfer pumps varies significantly, influenced by multiple factors, ranging from mere hundreds to over 10,000 hours. Key factors determine this:

• Media Properties: Highly abrasive slurries (e.g., ore) or corrosive chemicals drastically shorten life (as low as 300 hours). Milder media extend it.

• Materials: Standard cast iron offers thousands of hours in low-wear applications. Wear-resistant materials like high-chromium alloys (2,000-5,000+ hours) or rubber linings (3,000-8,000 hours) significantly improve durability in harsh conditions.

• Operation: Running outside the design flow/head or at high speeds accelerates wear. Frequent starts/stops also reduce lifespan.

• Maintenance: Regular inspection (every 500-1000 hours), timely replacement of wear parts, and proper lubrication can extend life by 20-50%.

Through science-based selection, optimized operation, and diligent maintenance, achieving 10,000+ hours is possible in favorable conditions.

Selecting the right slurry pump requires a logical process—data collection → parameter calculation → pump type screening → performance verification → supporting component selection → economic/compliance evaluation → on-site adjustment—to match actual working conditions. Here’s the streamlined guide:

• Collect Key Data: Clarify medium details (solid content, particle size/hardness, corrosiveness, temperature/viscosity), operating requirements (rated/max flow, lifting height, pipeline layout), and on-site conditions (installation space/method, suction mode, operation type).

• Calculate Core Parameters: Use rated/max flow as the basis; compute total head (vertical lifting + frictional/local losses + 10-20% safety margin); ensure NPSHr < NPSHa to prevent cavitation.

• Screen Pump Type & Flow Components: Choose materials (high-chromium cast iron for wear, rubber/stainless steel/fluoroplastic for corrosion); impellers (closed for fine particles, semi-open/open for large solids); structure (vertical for limited space, self-priming for poor suction, multi-stage for high head).

• Verify Performance Matching: Align operating point (flow/head) with the pump’s efficient range (70-110% of performance curve); confirm shaft power matches power supply/motor.

• Select Supporting Components: Match motor (frequency conversion preferred for fluctuating conditions); shaft seal (packing for slight leakage, mechanical for tight sealing); add lubrication/flushing systems for high wear.

• Evaluate Economy & Compliance: Opt for the lowest full-life cycle cost (purchase, energy, maintenance); ensure compliance with industry/safety/environmental standards.

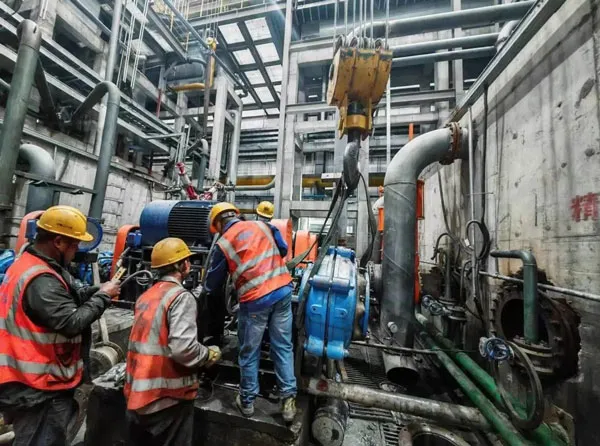

• On-site Verification: Measure actual parameters post-installation; adjust impeller diameter or use frequency conversion to resolve deviations for stable operation.
