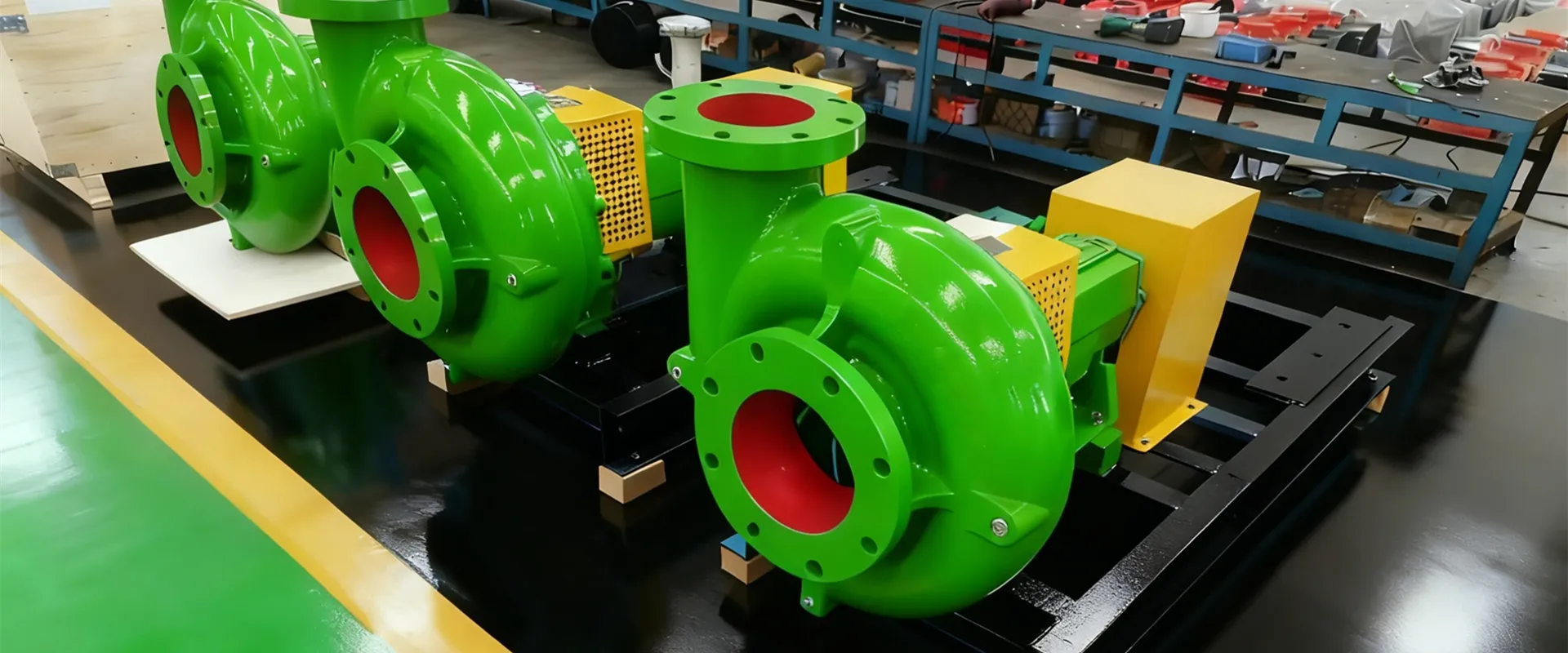

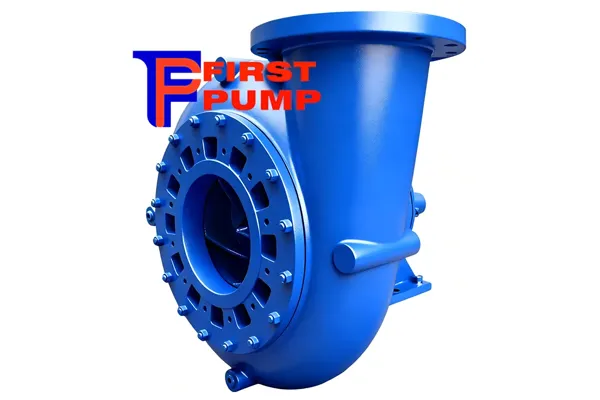

Mission-compatible centrifugal pumps are commonly used for drilling fluid transfer, solids-control equipment charging, mud mixing and frac blender discharge. Because fluid density, solids loading and suction conditions vary between projects, each pump should be selected from the actual duty point rather than from the connection size or model name alone.
First Pump can configure the hydraulic size, impeller diameter, operating speed, wear materials, seal arrangement and drive method according to the application. Final performance and replacement compatibility are confirmed against the pump curve, operating data and installation dimensions before production.

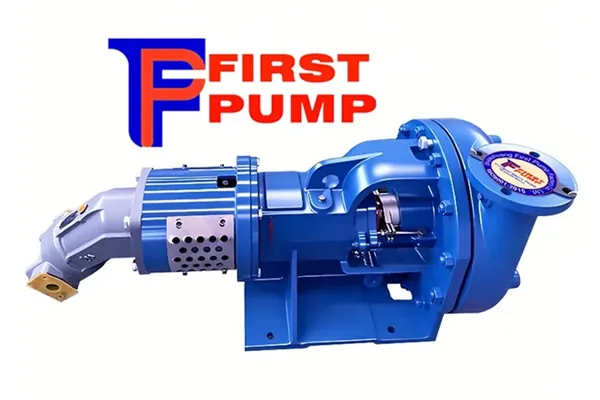

The service life of a Mission-compatible centrifugal pump depends on how well its hydraulic selection, materials, installation and maintenance plan match the actual operating conditions.
Correct Hydraulic Selection: The duty point should be checked against the pump curve. Operating too far from the recommended range can increase internal recirculation, vibration, power consumption and component wear. Available NPSH must also be sufficient to reduce cavitation risk.
Wear Materials and Sealing: Impeller, casing and wear-component materials should be selected according to fluid density, solids concentration, particle size, abrasion, corrosion and temperature. The seal arrangement must also match the operating pressure and maintenance requirements.
Installation and Maintenance: Proper shaft alignment, foundation support, piping arrangement, bearing lubrication and seal inspection help prevent excessive vibration, leakage, shaft deflection and premature bearing failure.

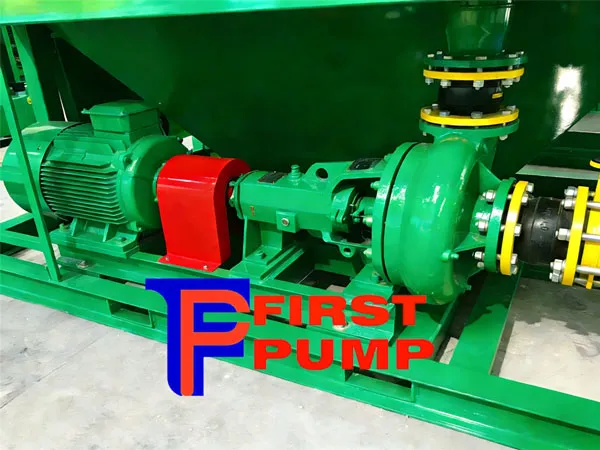

As the power source for drilling fluid solid control equipment (desanders, desilters, etc.), sand pumps also serve as charging/transfer pumps. Key installation and operation guidelines to avoid issues:
Unlike positive displacement pumps, sand pumps maintain constant head at fixed flow, unaffected by fluid density. For correct (model, speed, impeller diameter, motor), predetermine external load, design pipelines by required flow (not flange specs), and calculate head—prioritize lower speeds to reduce wear, or consult professionals.
Critical precautions: Use independent suction lines (no common/parallel setups); install and clean inlet strainers regularly to prevent gas entry. Never alter impellers without professional approval, throttle inlet valves (causes cavitation), or use discharge bypass valves (wastes power)—adjust flow by closing cyclones instead.
For startup: Close discharge valves (run ≤1-2 minutes to avoid fluid boiling), then open gradually until stable. Ensure motor power matches max flow/density demands; keep packing gland leakage at 2-4 drops/min. Lubricate bearings per manual (2-4 annual oil changes for oil-lubricated types).

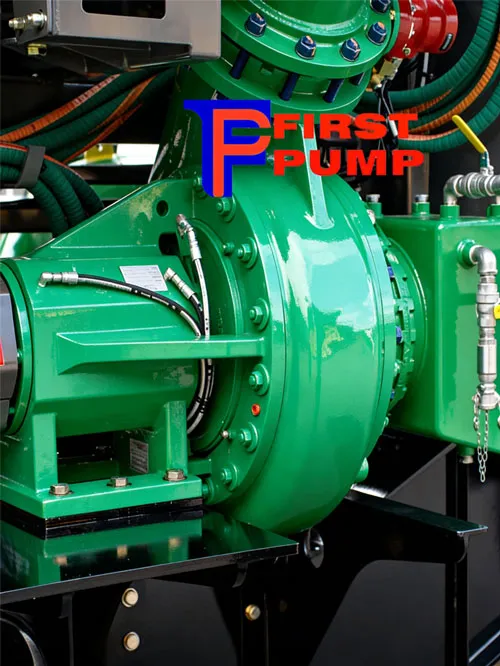

A frac blender discharge pump transfers the mixed proppant slurry from the blender to the suction side of the high-pressure fracturing pumps. It provides the required flow and inlet pressure but does not generate the final wellhead treatment pressure.
Key Selection Requirements
Hydraulic duty: Confirm the required flow, discharge head, operating speed and absorbed power using the actual fluid density.
Suction and solids conditions: Evaluate available NPSH, inlet-pipe arrangement, air entrainment, proppant concentration, particle size and fluid viscosity.
Materials and equipment integration: Select suitable wear materials, sealing and drive arrangements, then verify the mounting dimensions, flange connections and rotation direction.
For model details, review the Mission Magnum XP centrifugal pump or submit your operating data for pump selection.
