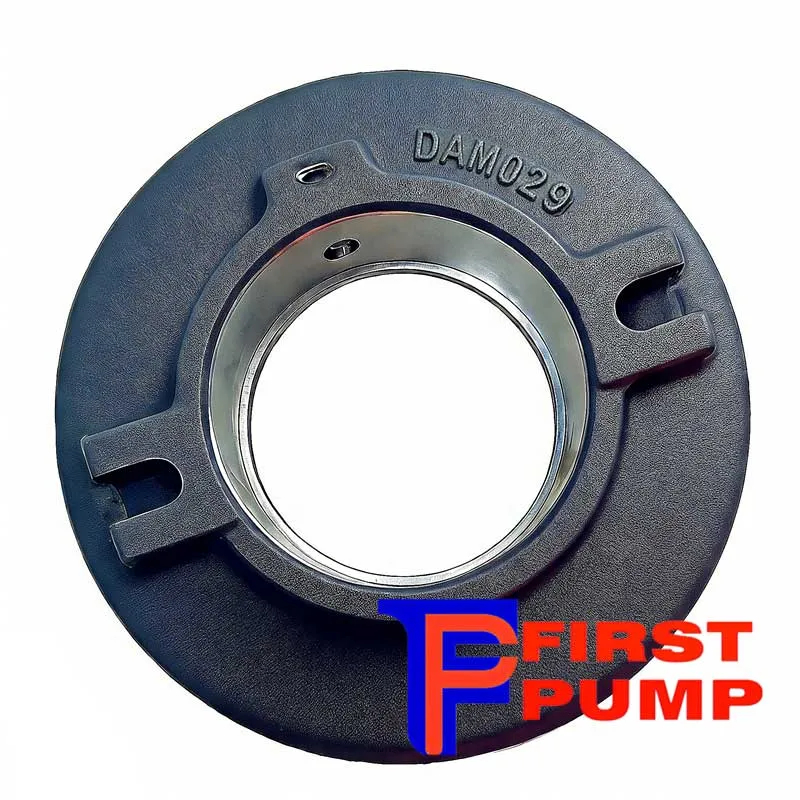

Expeller Ring DAM029G01

DAM029G01

G01

Standard Grey Iron /

Grey Cast Iron (Grade200)

Economical, Easy to Machine, Moderate Wear Resistance

Frame plate, Cover Plate, Expeller, Expeller Ring, Stuffing Box, Bearing House, Base

Expeller Ring DAM029D21

DAM029D21

D21

Ductile Iron

Higher Strength, Better Impact resistance, Alternative to G01

Frame plate, Cover Plate, Expeller, Expeller Ring, Stuffing Box, Bearing House, Base

Expeller Ring DAM029C22

DAM029C22

C22

Stainless Steel 304

Corrosion Resistance, High Temperature resistance, and oxidation resistance

Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt, Expeller, Expeller Ring

Expeller Ring DAM029C23

DAM029C23

C23

Stainless Steel 316

Better Corrosion Resistance, High Temperature Resistance, and Better Oxidation Resistance, Alternative to C22

Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt, Expeller, Expeller Ring

Expeller Ring DAM029A05

DAM029A05

A05

Ultrachrome (27% Cr)

Extremely High Hardness, Extremely Strong Wear Resistance, Corrosion Resistance, Alternative to G01, D21

Volute Liner, Impeller, Throatbush, Frame Plate Liner Insert, Expeller, Expeller Ring, Stuffing Box

1

D138-1E62

Grease Cup Adaptor

ESY7495

E62

1

0.29

2

 D075C21

Shaft Sleeve

ESY2462

C21

1

5.73

3

D003MG01

Base

BSY1140

G01

1

77.50

4

D063C23

Lantern Ring

ESY2641

C23

1

2.21

5

D118C23

Lantern Restrictor

ESY2268

C23

1

2.88

6

D067C23

Neck Ring

ESY2276

C23

1

0.85

7

D044C23

Gland Assembly

CSY1831

C23

1

1.87

8

D109S10

O-ring, Shaft Sleeve

GB3452.1-82

S10

2

9

DAM4032D21

Frame Plate

BSY1136

D21

1

110.00

10

E4013D21

Cover Plate

ESY1138

D21

1

118.00

11

E4147A05

Impeller

BSY1158

A05

1

69.00

12

E4110A05

Volute Liner

A2-16732

A05

1

120

13

E4083A05

Throatbush

BSY1697

A05

1

48.40

14

E4041A05

Frame Plate Liner Insert

ESY4032

A05

1

31.60

15

DAM117C23

Shaft Sleeve Spacer

ESY2288

C23

1

3.49

16

DAM078G01

Stuffing Box

CSY1484

G01

1

21.67

17

E4081E62

Keeper Plate

A4-102884

E62

1

0.33

18

E122S10

Expeller Ring/Stuffing Box Seal

ESY6473

S10

1

19

D108G01

Piston Ring

G01

1

20

DAM028A05

Expeller

A3-102798

A05

1

8.20

21

DAM029A05

Expeller Ring

CSY1827

A05

1

17.60

22

E4015ME65

Cover Plate Bolt W/2 Nuts

A314365

E65

4

3.19

23

F064S10

Impeller Seal O-ring

GB3452.1-82

S10

1

24

E4060S01

Intake Joint Ring

ESY2638

S01

1

25

E4132XLPS01

Discharge Joint Ring

ESY7145

S01

1

26

 E4124S01

Volute Liner Seal

ESY2284

S01

2

27

D004MG01

Bearing Housing

G01

1

35.50

28

DAM073ME05

Shaft

E05

1

40.56

29

D024-10D81

End Cover

D81

2

4.30

30

D046G01

Grease Retainer

G01

2

1.70

31

D062-10E62

Labyrinth

E62

2

2.40

32

D061E62

Labyrinth Locknut

E62

1

0.80

33

D045MC23

Gland Bolt, Nut & Washer

C23

2

0.36

34

D011E62

Clamp Washer

HAB-048-82

E62

4

0.44

35

D001XLME62

Adjusting Screw

SKB049-82

E62

1

0.69

36

E4085E02

Cotter

SKB050-82

E02

2

0.67

37

D039ME62

Frame Plate Stud - 2 Nut

SKB051-82

E62

3

0.97

38

DAM005XLM

Bearing Assembly

A3-105464

1

64.00
