Name: SGH Super-heavy-duty Gravel Pumps
Brand: Shijiazhuang First Pump Factory Co., Ltd.

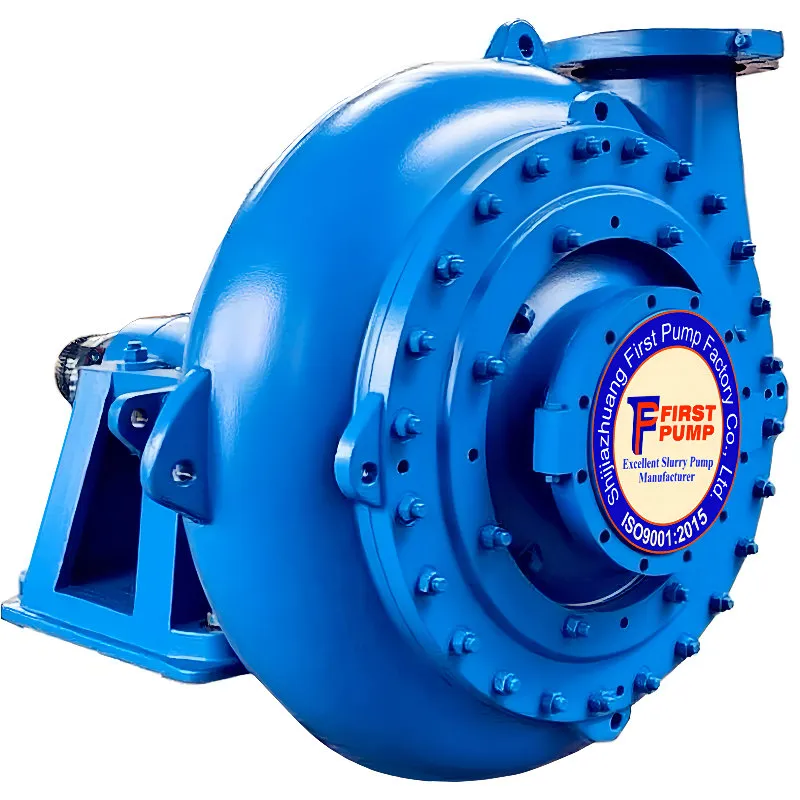

SGH Super-heavy-duty Gravel Pumps

Engineered to handle highly abrasive slurries with particles up to 203mm, the SHG series represents the pinnacle of third-generation hydraulic pump technology. Designed for severe-duty applications in dredging, mining, and industrial sectors, it delivers exceptional efficiency, durability, and operational flexibility.

Key Features of SGH Super-heavy-duty Gravel Pumps

Advanced Hydraulics: High flow rates (180–5800 m³/h) and heads (20–85 m) with maintained wear resistance.
Abrasion-Resistant Construction: Proprietary high-chrome alloys (A05, A61, A14) for extended service life in gravel, sand, and slag.
Unlined Heavy-Duty Design: Enables smooth passage of large solids, eliminating liners and reducing maintenance.
Flexible Configuration: Outlet adjustable in 45° increments; supports multiple drive options and shaft seals.
Efficient Bearing System: Grease-lubricated taper roller bearings eliminate oil recirculation, lowering operating costs.

Technical Specifications of SGH Super-heavy-duty Gravel Pumps

Max Particle Size	203mm
Working Pressure	1150 kPa
Flow Range	180-5800 m³/h
Head Range	20-85 m
Inlet/Outlet Sizes	150-400mm

Operational Benefits of SGH Super-heavy-duty Gravel Pumps

Reduced Ownership Cost: No oil recirculation pumps; minimal gland water consumption.
Easy Maintenance: Removable shaft sleeve, split collar, and quick-adjust impeller for minimal downtime.
Extended Lifespan: Large casing design lowers internal velocity; side sealing vanes prevent solids ingress.

Applications of SGH Super-heavy-duty Gravel Pumps

Ideal for abrasive and large-particle slurry transport in:

Mining & Aggregates (iron ore, coal, gravel, mineral sands)
Dredging (river sand, inland dredging, mining vessels)
Industrial Processing (slag granulation, food production)
Infrastructure (tunnel slurry discharge, hydrotransport)

Backed by over 60 years of expertise, the SHG series offers a reliable, high-performance pumping solution for the most challenging environments. Optional automatic lubrication systems further enhance operational reliability.

First Pump® SHG – Where innovation meets endurance.
