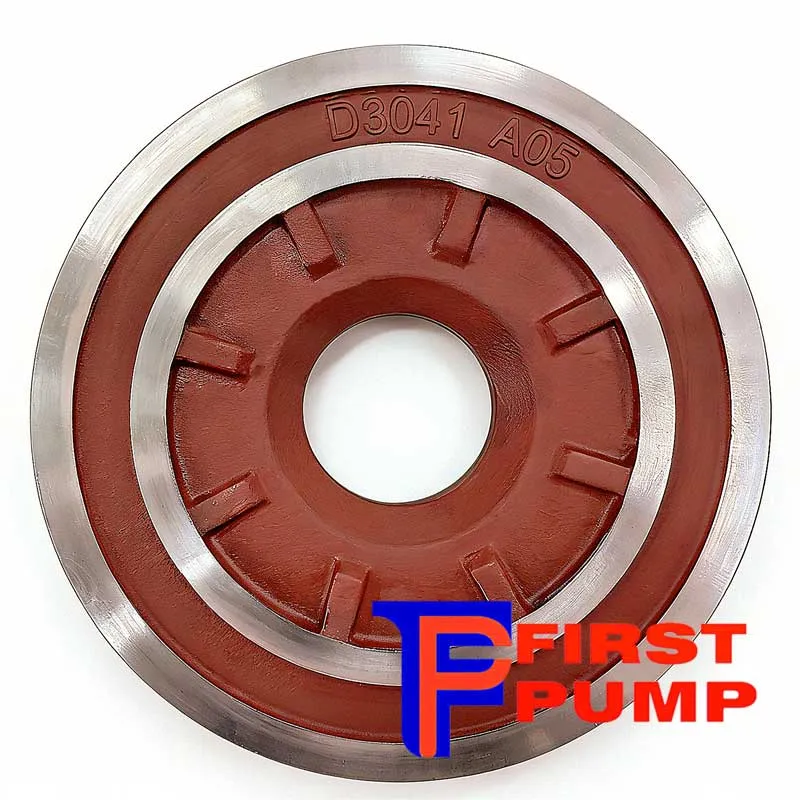

4-3 C-AH Frame Plate Liner Insert D3041A05

Frame Plate Liner Insert D3041 in Various Materials

Part Name	Part No.	Material	Hardness (HRC)	pH Range	Special features	Application Examples
Frame Plate Liner Insert D3041A05	D3041A05	Cr27	58-63	4-12	The anti-scouring performance is second only to A07, and has certain Corrosion resistance.	For corrosion resistant materials with large impact loads Wear, for pH 5-12 working conditions.
Frame Plate Liner Insert D3041A49	D3041A49	Cr30	43	4-14	Has a certain degree of erosion resistance Performance and Low pH Environment Its corrosion resistance and wear resistance Performance is similar to A03.	Suitable for corrosive environments with low pH values Environment, especially suitable for flue gas, Especially suitable for Flue Gas Desulfurization (FGD), for Ph≥ 4 desulfurization device, usually can For use in low acid environments.
Frame Plate Liner Insert D3041A61	D3041A61	Cr30-32	60-67	6-14	Containing 50% chromium carbide. The alloy may provide up to two times the life of Ultrachrome^® A05 alloy	Hypereutectic white iron, suitable for high wear duties. Can effectively be used in the alumina industry, mill discharge applications and tailings pumps, offering a significant life advantage over conventional erosion resistant alloys

Frame Plate Liner Insert of Material A05 Fit AH Slurry Pumps

Part Name	Pump Model
Frame Plate Liner Insert B1041A05	AH 1.5/1 B Frame
Frame Plate Liner Insert B1541A05	AH 2/1.5 B Frame
Frame Plate Liner Insert C2041A05	AH 3/2 C Frame
Frame Plate Liner Insert D3041A05	AH 4/3 C, D Frame
Frame Plate Liner Insert E4041A05	AH 6/4 D, E Frame
Frame Plate Liner Insert F6041A05	AH 8/6 E, F Frame
Frame Plate Liner Insert G8041A05	AH10/8 F, ST Frame
Frame Plate Liner Insert G10041A05	AH 12/10 F, ST Frame
Frame Plate Liner Insert G12041A05	AH 14/12 F, ST Frame
Frame Plate Liner Insert H14041A05	AH 16/14 TU Frame
Frame Plate Liner Insert U18041TL1MA05	AH 20/18 TU Frame

Parts List of 4/3C-AH Slurry Pump

S/N	Part Number	Description	Drg No.	Matl	Qty	Unit Weight
1	D3125R55	Volute Liner Seal O-ring	ESY2910	R55	1
2	C075C21	Shaft Sleeve	ESY2391	C21	1	2.52
3	C003MG01	Base	BSY1088	G01	1	45.00
4	C063C23	Lantern Ring	CSY2387	C23	1	1.15
5	C118C23	Lantern Restrictor	ESY3282	C23	1	1.82
6	C067C23	Neck Ring	BSY3099	C23	1	0.35
7	C044C23	Gland Assembly	CSY1594	C23	1	1.03
8	CAM3032D21	Frame Plate	BSY1168	D21	1	59.00
9	D3013D21	Cover Plate	ESY1283	D21	1	59.00
10	D3147A05	Impeller	A1-13994	A05	1	23.80
11	D3110A05	Volute Liner	ESY1165	A05	1	66.50
12	D3041A05	Frame Plate Liner Insert	ESY1818	A05	1	17.00
13	CAM117C23	Shaft Sleeve Spacer	ESY2730	C23	1	1.87
14	CAM078G01	Stuffing Box	ESY2299	G01	1	9.00
15	CAM029A05	Expeller Ring	CSY1869	A05	1	7.20
16	D015ME65	Cover Plate Bolt W/2 Nuts	A314429	E68	4	1.99
17	C109S10	O-ring, Shaft Sleeve	ESY7494	S10	2
18	D064S10	Impeller Seal O-ring	ESY7494	S10	1
19	D122R55	Expeller Ring/Stuffing Box Seal	ESY2463	R55	1
20	D138-1E62	Grease Cup Adaptor	ESY2899	E62	1	0.29
21	CAM028A05	Expeller	A2-121328	A05	1	3.60
22	D3060S01	Intake Joint Ring	ESY2726	S01	1
23	D3132XLPS01	Discharge Joint Ring	ESY7166	S01	1
24	C004MG01	Bearing Housing		G01	1	21
25	CAM073ME05	Shaft		E05	1	19.46
26	C024-10D81	End Cover		D81	2	2.80
27	C046G01	Grease Retainer		G01	2	0.80
28	C062-10E62	Labyrinth		E62	2	1.70
29	C061E62	Labyrinth Locknut		E62	1	0.49
30	C045MC23	Gland Bolt, Nut & Washer		C23	2	0.19
31	C011E62	Clamp Washer	HAB-048-82	E62	4	0.33
32	C001E62	Adjusting Screw		E62	1	0.51
33	C039ME62	Frame Plate Stud - 2 Nut		E62	3	0.53
34	CAM005M	Bearing Assembly	A1-106009		1	34.00
