Name: WQ Submersible Sewage Pumps
Brand: Shijiazhuang First Pump Factory Co., Ltd.

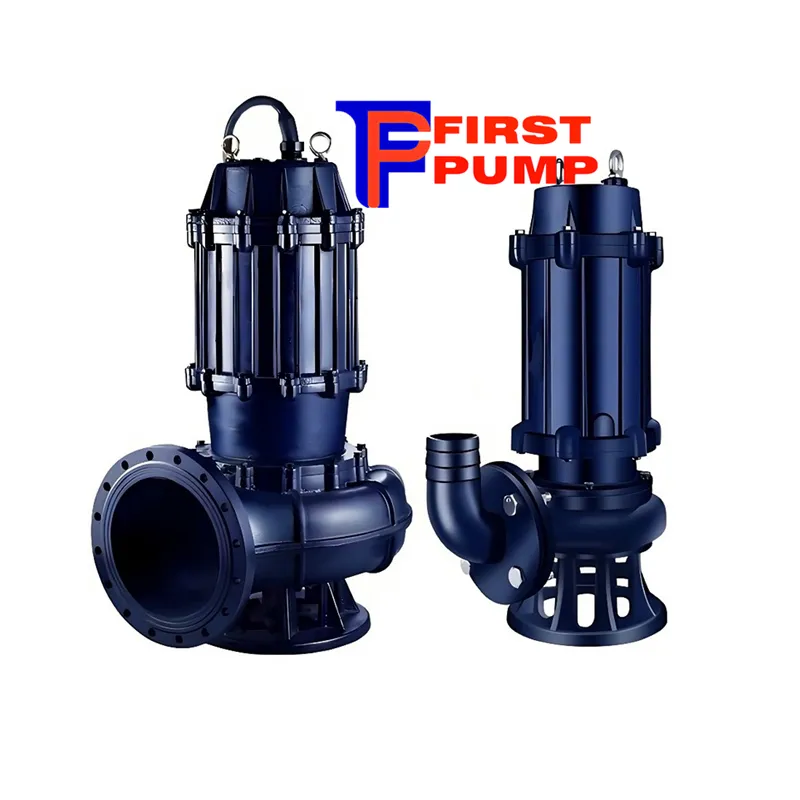

WQ Submersible Sewage Pumps

The WQ Series Submersible Sewage Pump is a high-performance, versatile solution designed for demanding wastewater drainage and transfer applications. Engineered with advanced features to handle challenging media, it is the ideal choice for municipal, industrial, agricultural, and commercial wastewater systems.

Key Features & Advantages of WQ Submersible Sewage Pumps

Superior Clog Resistance: Equipped with a unique single or double-vane impeller, this pump ensures smooth passage of large solids, capable of handling fibrous materials up to 5 times the pump's diameter and solid particles up to 50% of the pump's diameter.
Exceptional Durability: The mechanical seal is made from hardened, corrosion-resistant titanium tungsten, guaranteeing safe and continuous operation for over 8,000 hours.
Compact & Cost-Effective Design: With a compact, quiet, and energy-efficient design, the pump operates fully submerged, eliminating the need for a dedicated pump house and significantly reducing construction costs.
Comprehensive Automatic Protection: Integrated features include a high-precision leak detection sensor and built-in thermal protectors in the motor windings. Optional automatic control cabinets provide full protection against leakage, overload, and overheating, allowing safe operation across the entire head range.

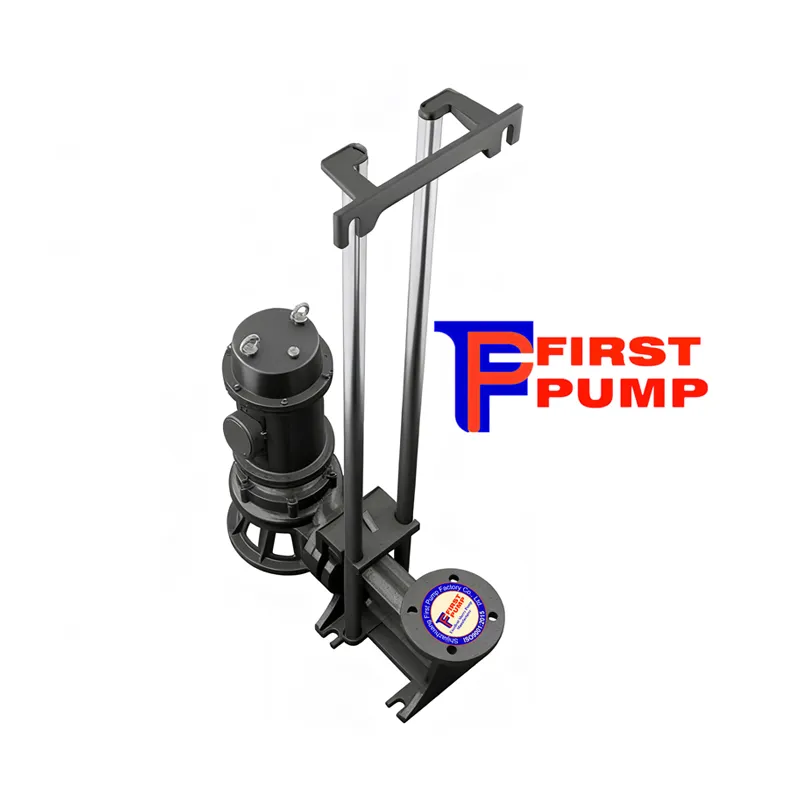

Flexible Installation & Control: The pump can be paired with an optional float switch for automatic start/stop based on liquid level. It offers two installation methods: a fixed, guide-rail coupling system for easy maintenance, or a movable free-installation setup.

Applications of WQ Submersible Sewage Pumps

The WQ pump is expertly crafted to efficiently transport wastewater containing solid particles and long fibers. Its primary applications include:

Wastewater lifting stations and municipal treatment plants
Industrial effluent systems (chemical, textile, mining, leather, etc.)
Agricultural and livestock wastewater management
Commercial and institutional drainage (hospitals, schools)
Septic and sewage systems
Rainwater drainage

Structure of WQ Submersible Sewage Pumps

	1	Signal Cable
	2	Power Cable
	3	Handle Grip
	4	Motor Cover
	5	Seal Ring
	6	Cable Terminal
	7	Upper Lid
	8	Bearing
	9	Stator Assembly
	10	Motor Casing
	11	Float Switch
	12	Motor Bracket
	13	Oil Housing Cover
	14	Impeller
	15	Impeller Nut
	16	Pump Base
	17	Volute Casing
	18	Mechanical Seal
	19	Oil Chamber
	20	Water Leakage Detection Probe
	21	Rotor Assembly
	22	Shaft
	23	Cable Gland
	24	Guide Rail
	25	Mating Flange
	26	Guide Bracket
	27	Fixed Coupling Assembly
	28	Outlet Flange

Technical Specifications & Conditions of WQ Submersible Sewage Pumps

Power Supply	Standard 380V, 50Hz.
Medium Temperature	≤ 40°C (104°F)
Medium Density	≤ 1150 kg/m³
pH Range	5 - 9
Max. Operating Depth	Fully submersible, not exceeding 10 meters.
Material	Primarily cast iron. Not suitable for strongly corrosive or acidic/alkaline media.
