Expeller Ring B029G01

B029G01

G01

Standard Grey Iron /

Grey Cast Iron (Grade200)

Economical, Easy to Machine, Moderate Wear Resistance

Frame plate, Cover Plate, Expeller, Expeller Ring, Stuffing Box, Bearing House, Base

Expeller Ring B029D21

B029D21

D21

Ductile Iron

Higher Strength, Better Impact resistance, Alternative to G01

Frame plate, Cover Plate, Expeller, Expeller Ring, Stuffing Box, Bearing House, Base

Expeller Ring B029C22

B029C22

C22

Stainless Steel 304

Corrosion Resistance, High Temperature resistance, and oxidation resistance

Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt, Expeller, Expeller Ring

Expeller Ring B029C23

B029C23

C23

Stainless Steel 316

Better Corrosion Resistance, High Temperature Resistance, and Better Oxidation Resistance, Alternative to C22

Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt, Expeller, Expeller Ring

Expeller Ring B029A05

B029A05

A05

Ultrachrome (27% Cr)

Extremely High Hardness, Extremely Strong Wear Resistance, Corrosion Resistance, Alternative to G01, D21

Volute Liner, Impeller, Throatbush, Frame Plate Liner Insert, Expeller, Expeller Ring, Stuffing Box

1

B005M

Bearing Assembly

A1-104891

1

34.00

2

B011E62

Clamp Washer

ESY3418

E62

4

0.19

3

B012ME69

Clamp Bolt - 1Nut

ESY7483

E69

4

1.00

4

B217S10

Impeller O-ring

ESY7494

S10

1

5

B1125S01

Volute Frame Seal

ESY7494

S01

1

6

B1032D21

Frame Plate

BSY1720

D21

1

18.50

7

B1110A05

Volute Liner

BSY1467

A05

1

11.50

8

B1132XLPS01

Discharge Joint Ring

ESY7162

S01

1

9

B1060S01

Intake Joint Ring

ESY3328

S01

1

10

B1013D21

Cover Plate

BSY1722

D21

1

15.50

11

B1127A05

Impeller 5VOG

CSY2370

A05

1

3.90

12

B015ME65

Cover Plate Bolt - 2 Nuts

A3-14427

E65

4

1.48

13

B1041A05

Frame Plate Liner Insert

CSY2198

A05

1

3.40

14

B122S51

Expeller Ring/Stuffing Box Seal(Seal Ring)

CYS3308

S51

1

15

Rivet 3*6

GB867-86

H62

4

16

Tag 73*98

HAB020-81-75

1

17

B075C21

Shaft Sleeve

ESY2122

C21

1

1.24

18

B109S10

Shaft O-ring

ESY7494

S10

2

19

B039ME62

Frame Plate Stud - 2Nuts

ESY7224

E62

3

0.35

20

B001ME62

Adjusting Screw(1Bolt, 3Nut, 2Washers)

ESY6245

E62

1

0.28

21

B003MD21

Base

BSY792

D21

1

24.00

22

B044C23

Gland Assembly (2 Piece)

CSY1405

C23

1

0.40

23

B045E62

Gland Bolt - 1Nut - 1Washer

ESY2345

E62

2

0.19

24

Gland Clamp Bolt - 1 Nut

E62

2

25

B111Q21

Packing

ESY7495

Q21

4

26

B078

Stuffing Box

CSY2301

G01

1

3.11

27

B118C23

Lantern Restrictor

ESY2132

C23

1

1.27

28

B117C21

Shaft Spacer

ESY2131

C21

1

0.60

29

A-3

Grease Cup

GB1154-74

A3

1

30

B138-1E62

Grease Cup Adaptor

ESY3423

1

0.11

31

Gland Clamp Bolt -1Nut

E62

2

0.40

32

B111Q21

Packing

ESY7495

Q21

2

33

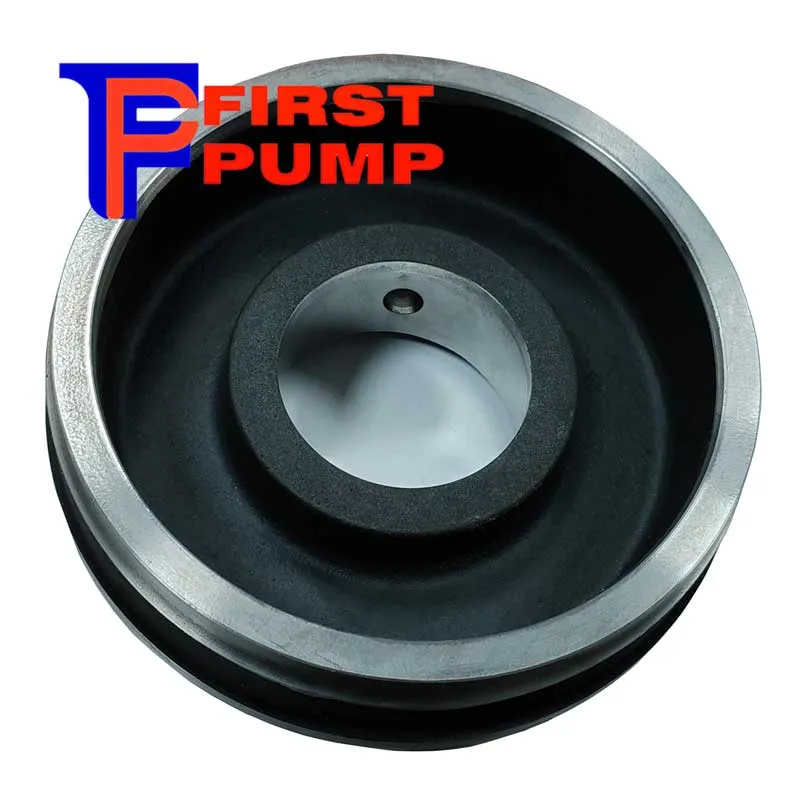

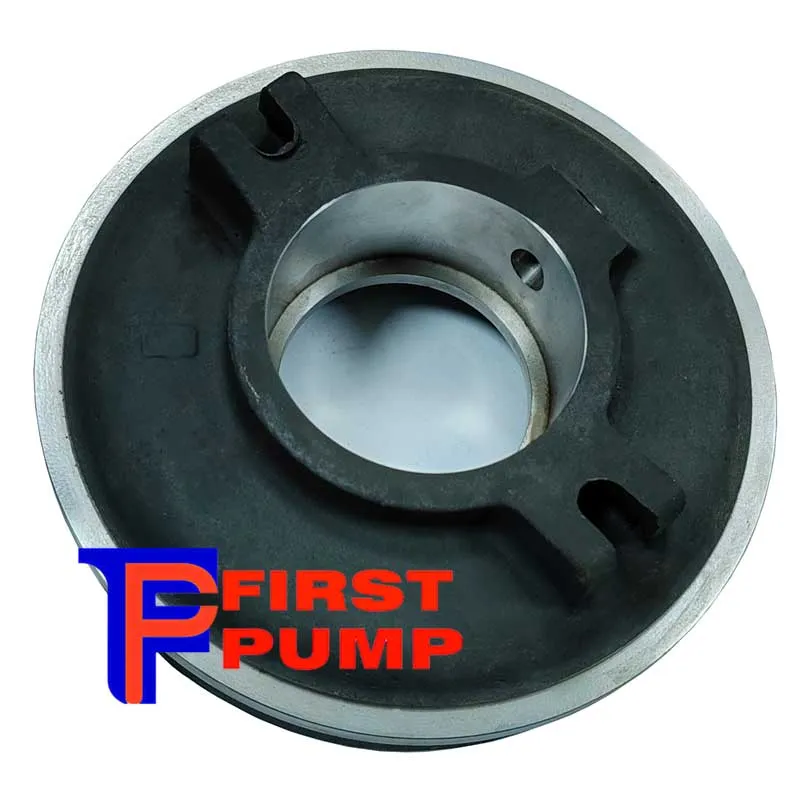

B029A05

Expeller Ring

CSY1402

A05

1

2.80

34

B028A05

Expeller

DSY3025

A05

1

0.70

35

B067C23

Neck Ring

BSY3099

C23

1

0.38

36

B063C23

Lantern Ring

ESY2118

C23

1

0.73

37

B045E62

Gland Bolt - 1Nut - 1Washer

ESY2345

E62

2

0.19

38

B044C23

Gland Assembly(2 Piece)

CSY1405

C23

1

0.40

39

B062-10D81

Labyrinth

A119920

D81

2

0.80

40

B046G01

Grease Retainer

ESY2114

G01

2

0.43

41

B004MG01

Bearing Housing

CSY1399

G01

1

9.80

42

B009

Bearing

ESY7478

2

1.50

43

B025

FS Shim Set

ESY2111

1

0.20

44

B024-10D81

End Cover

CSY1399

D81

2

1.80

45

B073ME05

Shaft

CSY1409

E05

1

7.79

46

B108G02

Piston Ring

A371734

G02

4

0.50

47

B061E62

Labyrinth Locknut

ESY2116

E62

1

0.36

48

B089-10S10

Bearing Seal Ring

A119582

S10

2

0.10

49

B070ME05

Shaft Key

BSY7482

E05

1

0.10
