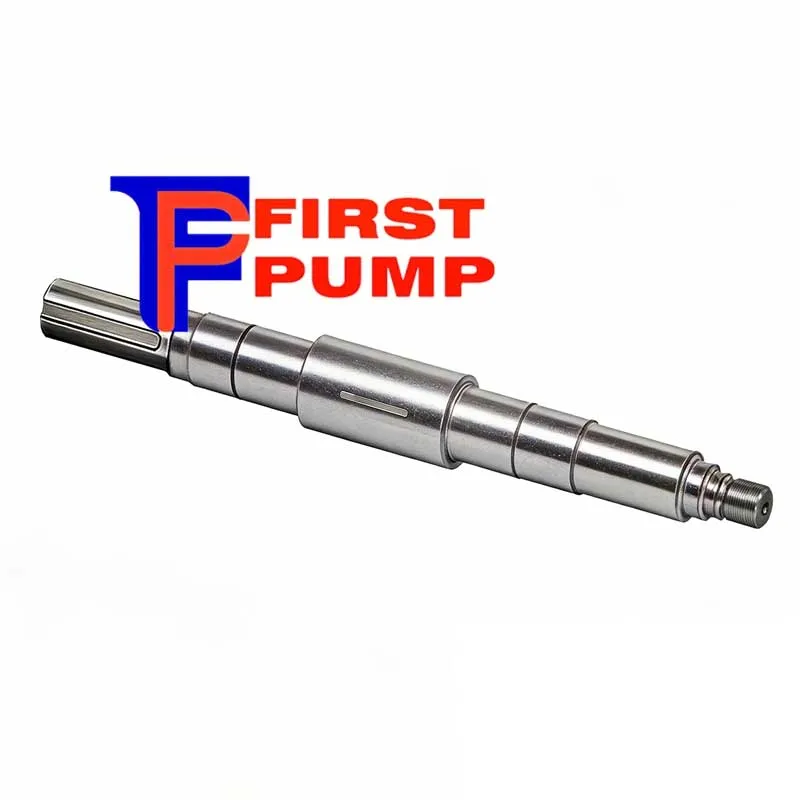

Shaft CAM073ME05 in Various Materials

Part Name	Part No.	Material
Shaft CAM073ME05	CAM073ME05	E05 (Carbon Steel ), 40CrMo, SS316L

Shafts of Material E05 Fit AH Slurry Pumps

Parts List of 4/3C-AH Slurry Pump

S/N	Part Number	Description	Drg No.	Matl	Qty	Unit Weight
1	D3125R55	Volute Liner Seal O-ring	ESY2910	R55	1
2	C075C21	Shaft Sleeve	ESY2391	C21	1	2.52
3	C003MG01	Base	BSY1088	G01	1	45.00
4	C063C23	Lantern Ring	CSY2387	C23	1	1.15
5	C118C23	Lantern Restrictor	ESY3282	C23	1	1.82
6	C067C23	Neck Ring	BSY3099	C23	1	0.35
7	C044C23	Gland Assembly	CSY1594	C23	1	1.03
8	CAM3032D21	Frame Plate	BSY1168	D21	1	59.00
9	D3013D21	Cover Plate	ESY1283	D21	1	59.00
10	D3147A05	Impeller	A1-13994	A05	1	23.80
11	D3110A05	Volute Liner	ESY1165	A05	1	66.50
12	D3041A05	Frame Plate Liner Insert	ESY1818	A05	1	17.00
13	CAM117C23	Shaft Sleeve Spacer	ESY2730	C23	1	1.87
14	CAM078G01	Stuffing Box	ESY2299	G01	1	9.00
15	CAM029A05	Expeller Ring	CSY1869	A05	1	7.20
16	D015ME65	Cover Plate Bolt W/2 Nuts	A314429	E68	4	1.99
17	C109S10	O-ring, Shaft Sleeve	ESY7494	S10	2
18	D064S10	Impeller Seal O-ring	ESY7494	S10	1
19	D122R55	Expeller Ring/Stuffing Box Seal	ESY2463	R55	1
20	D138-1E62	Grease Cup Adaptor	ESY2899	E62	1	0.29
21	CAM028A05	Expeller	A2-121328	A05	1	3.60
22	D3060S01	Intake Joint Ring	ESY2726	S01	1
23	D3132XLPS01	Discharge Joint Ring	ESY7166	S01	1
24	C004MG01	Bearing Housing		G01	1	21
25	CAM073ME05	Shaft		E05	1	19.46
26	C024-10D81	End Cover		D81	2	2.80
27	C046G01	Grease Retainer		G01	2	0.80
28	C062-10E62	Labyrinth		E62	2	1.70
29	C061E62	Labyrinth Locknut		E62	1	0.49
30	C045MC23	Gland Bolt, Nut & Washer		C23	2	0.19
31	C011E62	Clamp Washer	HAB-048-82	E62	4	0.33
32	C001E62	Adjusting Screw		E62	1	0.51
33	C039ME62	Frame Plate Stud - 2 Nut		E62	3	0.53
34	CAM005M	Bearing Assembly	A1-106009		1	34.00
