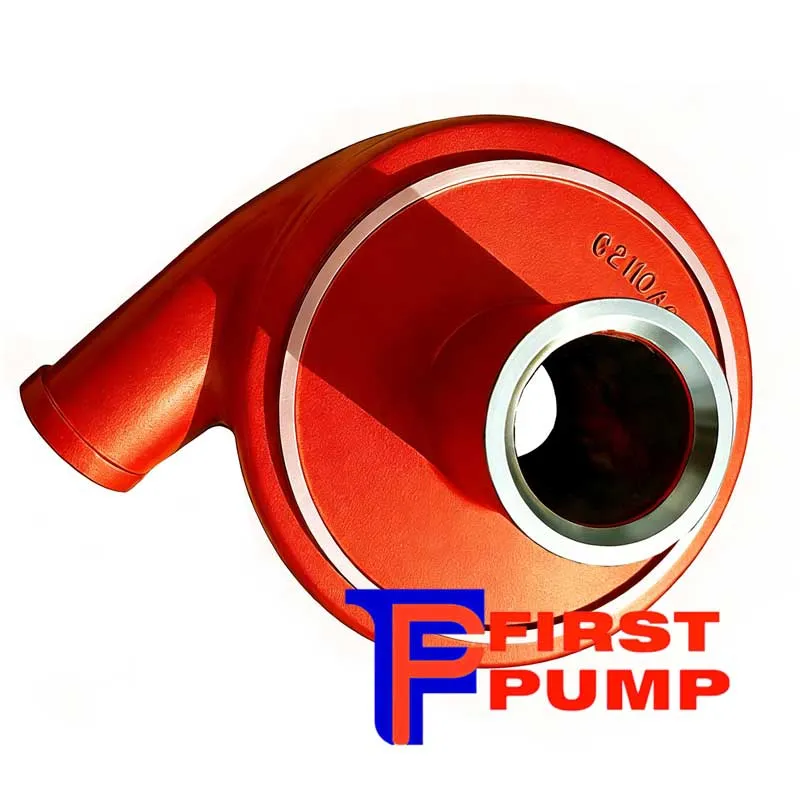

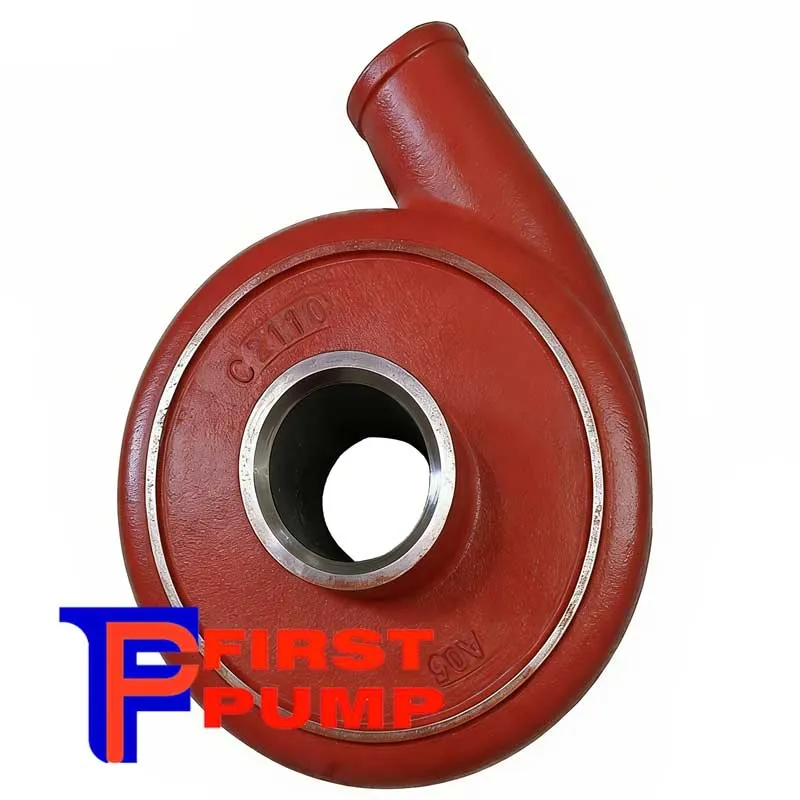

Volute Liner C2110A05

C2110A05

Cr27

58-63

4-12

The anti-scouring performance is second only to A07, and has certain Corrosion resistance.

For corrosion resistant materials with large impact loads Wear, for pH 5-12 working conditions.

Volute Liner C2110A49

C2110A49

Cr30

43

4-14

Has a certain degree of erosion resistance Performance and Low pH Environment Its corrosion resistance and wear resistance Performance is similar to A03.

Suitable for corrosive environments with low pH values Environment, especially suitable for flue gas, Especially suitable for Flue Gas Desulfurization (FGD), for Ph≥ 4 desulfurization device, usually can For use in low acid environments.

Volute Liner C2110A61

C2110A61

Cr30-32

60-67

6-14

Containing 50% chromium carbide. The alloy may provide up to two times the life of Ultrachrome®  A05 alloy

Hypereutectic white iron, suitable for high wear duties. Can effectively be used in the alumina industry, mill discharge applications and tailings pumps, offering a significant life advantage over conventional erosion resistant alloys

Volute Liner B1110A05

AH 1.5/1 B Frame

Volute Liner B15110A05

AH 2/1.5 B Frame

Volute Liner C2110A05

AH 3/2 C Frame

Volute Liner D3110A05

AH 4/3 C, D Frame

Volute Liner E4110A05

AH 6/4 D, E Frame

Volute Liner EP4110A05

AHP 6/4 E Frame

Volute Liner F6110A05

AH 8/6 E, F Frame

Volute Liner G8110A05

AH10/8 F, ST Frame

Volute Liner G10110A05

AH 12/10 F, ST Frame

Volute Liner G12110A05

AH 14/12 F, ST Frame

Volute Liner H14110A5

AH 16/14 TU Frame

Volute Liner U18110TL1A05

AH 20/18 TU Frame

1

C075C21

Shaft Sleeve

ESY2391

C21

1

2.52

2

C003MG01

Base

BSY1088

G01

1

45.00

3

C063C23

Lantern Ring

CSY2387

C23

1

1.15

4

C118C23

Lantern Restrictor

ESY3282

C23

1

1.82

5

C067C23

Neck Ring

BSY3099

C23

1

0.35

6

C044C23

Gland Assembly

CSY1594

C23

1

1.03

7

C2032D21

Frame Plate

BSY1910

D21

1

29.50

8

C2013D21

Cover Plate

BSY1552

D21

1

31.00

9

C2147A05

Impeller

CSY1339

A05

1

17.00

10

C2110A05

Volute Liner

A1-16476

A05

1

36.00

11

C2041A05

Frame Plate Liner Insert

CSY1699

A05

1

7.00

12

C117C23

Shaft Sleeve Spacer

ESY2487

C23

1

1.03

13

C078D21

Stuffing Box

CSY2301

D21

1

6.60

14

C028A05

Expeller

DSY3026

A05

1

3.40

15

C029A05

Expeller Ring

CSY2068

A05

1

5.50

16

C015ME65

Cover Plate Bolt W/2 Nuts

A3-14427

E65

4

1.47

17

C109S10

O-ring, Shaft Sleeve

ESY7494

S10

2

18

C217S50

Impeller Seal O-ring

ESY7494

S50

1

19

C2060S01

Intake Joint Ring

ESY3309

S01

1

20

C2132XLPS01

Discharge Joint Ring

ESY7163

S01

1

21

C2125S10

Volute Liner Seal O-ring

ESY7494

S10

1

22

C122R55

Expeller Ring/Stuffing Box Seal

ESY2463

R55

1

23

C108HG02

Piston Ring

G02

1

0.67

24

C109S10

O-ring, Shaft Sleeve

ESY7494

S10

2

25

C138-1E62

Grease Cup Adaptor

ESY2899

E62

1

0.29

26

C004MG01

Bearing Housing

G01

1

21

27

C024-10D81

End Cover

D81

2

2.80

28

C046G01

Grease Retainer

G01

2

0.80

29

C062-10E62

Labyrinth

E62

2

1.70

30

C073ME05

Shaft

E05

1

16.42

31

C061E62

Labyrinth Locknut

E62

1

0.49

32

C045MC23

Gland Bolt, Nut & Washer

C23

2

0.19

33

C011E62

Clamp Washer

HAB-048-82

E62

4

0.33

34

C001E62

Adjusting Screw

E62

1

0.51

35

C039ME62

Frame Plate Stud - 2 Nut

E62

3

0.53

36

C005M

Bearing Assembly

A1-104755

1

35.00
