Name: ANDRITZ Double-Suction Split Case Pumps FP Series
Brand: Shijiazhuang First Pump Factory Co., Ltd.

ANDRITZ Double-Suction Split Case Pumps FP Series

The ASP Series Split Case Pumps are designed for industrial fluid handling, combining hydraulic efficiency with robust engineering. Their modular and axial split case design delivers reliable performance and operational economy across a wide range of demanding applications, from water utilities to complex industrial processes .

Key Features of ANDRITZ Double-Suction Split Case Pumps FP Series

This series meets high customer requirements through several core engineering principles:

High Efficiency & Energy Savings: These pumps operate at efficiencies exceeding 90%, which helps in significantly reducing energy consumption and operational costs. This is supported by a double-flow radial impeller that optimizes hydraulic performance.

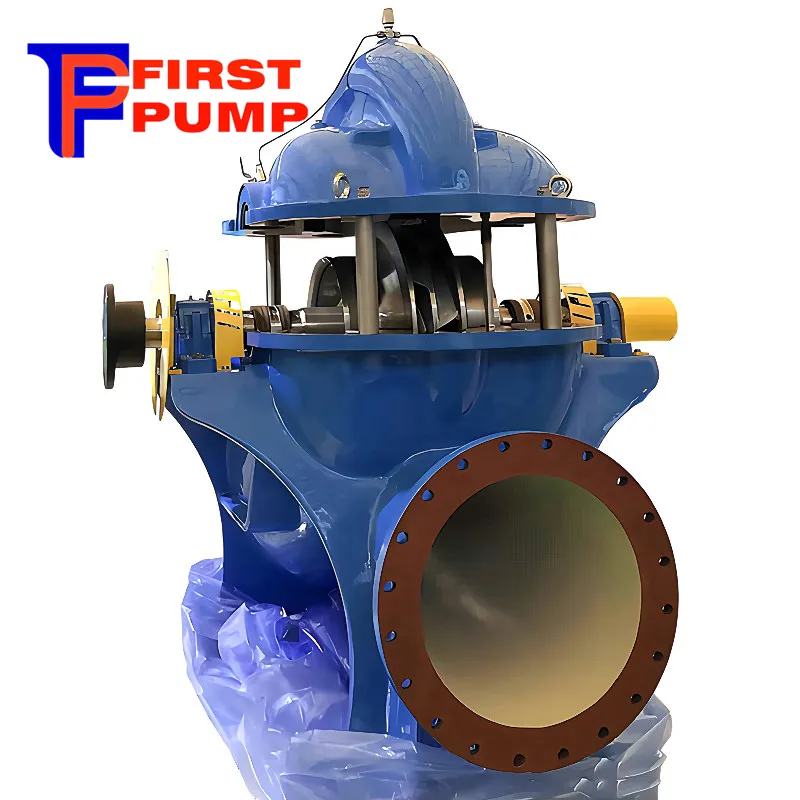

Axial Split Case Design: The pump casing is split axially, allowing for quick and easy access to internal components for inspection and maintenance without disturbing the piping or motor.
Installation & Configuration Flexibility: The pumps can be installed either horizontally or vertically. In horizontal installations, the motor can be positioned on either the left or right side, providing adaptability to various plant layouts.
Robust Construction for Longevity: Designed to withstand all load conditions encountered during its service life, the pump features a rigid construction. This ensures long-term reliability in abrasive and corrosive environments.
Favorable NPSH Characteristics: The double-flow radial impeller design contributes to excellent Net Positive Suction Head (NPSH) values, ensuring reliable operation even under challenging suction conditions.

Technical Specifications of ANDRITZ Double-Suction Split Case Pumps FP Series

Feature	Specification
Flow Rate	Up to 40,000 m³/h
Head	Up to 250 m
Pressure	Up to 25 bar
Power Capacity	Up to 7,000 kW
Liquid Temperature	Up to 80 °C
Fluid Consistency	Up to 2% (for pulp & paper applications)

Versatile Industrial Applications of ANDRITZ Double-Suction Split Case Pumps FP Series

The ASP Series is built to serve a broad spectrum of industries, demonstrating its versatility and reliability.

Water and Utilities: Critical for water treatment plants, public water supply systems, irrigation, flood control, and seawater desalination facilities.
Energy and Power Generation: Commonly used as cooling water or circulation pumps in power stations, industrial plants, and district heating networks.
Pulp and Paper Industry: Excels in critical roles such as headbox and cleaner pumps, where its low-pulsation flow is essential for handling stock suspensions.

Operational and Maintenance Advantages of ANDRITZ Double-Suction Split Case Pumps FP Series

The design philosophy of the ASP Series prioritizes user-friendly operation and cost-effective maintenance. The axial split case design is a key feature, enabling rapid servicing and minimizing system downtime. Furthermore, the pumps are engineered with a strict design calculation to withstand all potential load scenarios throughout their operational life, ensuring durability and reducing the total cost of ownership.

The ASP Series Split Case Pumps represent a blend of proven hydraulic engineering and practical design, offering a reliable and efficient solution for high-performance fluid handling in the most demanding environments.
