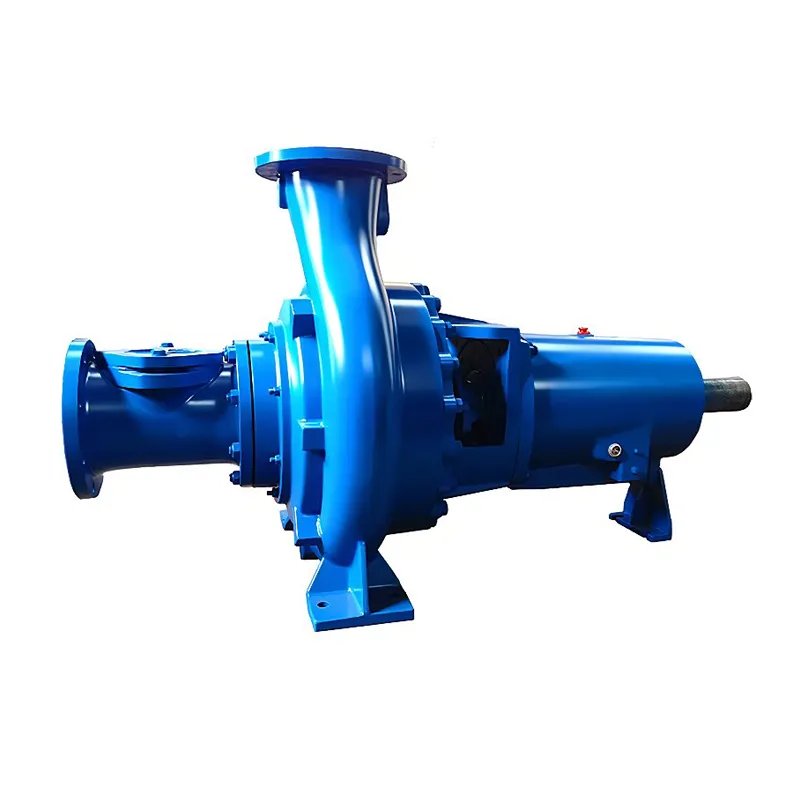

KSB KWP Non-clogging Centrifugal Pumps

First Pump supplies dry-installed KWP-type non-clogging centrifugal pump alternatives for pre-treated sewage, industrial wastewater, pulp stock and other solids-containing process fluids. The horizontal, single-stage configuration can be supplied with different impeller, material and shaft-seal arrangements. Final selection is based on the required flow, total dynamic head, solids and fibre content, maximum particle size, fluid temperature, corrosion conditions and available NPSH.

Key Design Features of KWP-Type Non-Clogging Centrifugal Pumps

KWP-type non-clogging centrifugal pumps use a horizontal, dry-installed configuration for handling industrial wastewater, pulp stock and other solids-containing process fluids. The final impeller, material, shaft seal and drive arrangement should be selected according to the actual fluid and duty conditions.

Dry-Installed Horizontal Configuration

The pump is installed outside the tank or sump and connected to a separate motor or driver. It should not be confused with a submersible sewage pump.

Back Pull-Out Maintenance

The back pull-out arrangement allows the rotating assembly to be removed from the drive side without dismantling the main suction and discharge piping.

Multiple Impeller Options

Closed multi-channel, open multi-vane and vortex or free-flow impeller options may be evaluated according to solids content, fibre length, gas content, required free passage and efficiency.

Materials for Abrasion and Corrosion

Casing, impeller, wear plate and shaft-protection materials can be selected according to abrasion, corrosion, temperature and chemical compatibility. Available materials must be confirmed for the selected pump size.

Configurable Shaft Sealing

Mechanical seal and gland-packing arrangements can be considered according to the liquid, operating pressure, temperature, leakage requirements and available flushing system.

Duty-Based Pump Selection

Pump size, impeller diameter, speed and motor power are selected from the required flow, total dynamic head, fluid density and suction conditions rather than from the connection size alone.

Configuration note: Impeller types, materials, sealing arrangements and maintenance features vary by pump size and operating conditions. Confirm the final technical configuration and pump curve before ordering.

Applications of KWP-Type Non-Clogging Centrifugal Pumps

KWP-type non-clogging centrifugal pumps are designed for dry-installed transfer of pre-treated sewage, industrial wastewater, pulp stock and other solids-containing process fluids. For buyers evaluating KSB KWP non-clogging centrifugal pumps, the following applications provide an initial guide. Final suitability depends on the fluid, solids, required duty point, impeller and construction materials.

Industry	Typical Fluids	Main Selection Factors
Industrial wastewater treatment	Pre-treated sewage, process effluent and solids-containing wastewater	Solids concentration, fibre content, gas content, free passage and corrosion
Paper and pulp processing	Pulp stock, white water and fibrous process liquids	Pulp concentration, fibre length, impeller type and wear resistance
Chemical and petrochemical processing	Contaminated process liquids and chemically aggressive wastewater	Chemical composition, pH, chlorides, temperature, material and seal compatibility
Sugar, food and beverage processing	Wash water, process wastewater and solids-containing production liquids	Fluid composition, cleaning requirements, temperature and material suitability
FGD, power and coal processing	Abrasive process water, slurry and solids-containing plant effluent	Abrasion, solids size, density, corrosion and expected component wear
Municipal wastewater systems	Screened or pre-treated sewage and wastewater	Ragging risk, maximum solids size, free passage, gas content and installation layout

Application note: KWP-type pumps are dry-installed pumps. Applications involving highly abrasive slurry, untreated sewage, large fibrous solids, high temperature or severe corrosion require a separate engineering review before selection.

KWP Impeller Selection Guide

The impeller should be selected from the characteristics of the fluid rather than from the industry name alone. Solids size, fibre length, sand content, gas content and required free passage directly affect clogging risk, efficiency and wear.

Impeller Type	Suitable Fluid Conditions	Main Advantage	Selection Limitation
Closed Multi-Channel Impeller	Pre-treated wastewater and process liquids with limited fibres and controlled solids	Good hydraulic efficiency when matched to suitable fluid conditions	Requires careful review when long fibres, rags or coarse solids are present
Open Multi-Vane Impeller	Pulp stock and industrial liquids containing suspended solids	Easier access for inspection and clearance adjustment	Wear clearance must be monitored to maintain hydraulic performance
Vortex or Free-Flow Impeller	Wastewater containing fibres, entrained gas or relatively large solids	Larger free passage and reduced direct contact between solids and the impeller	Hydraulic efficiency may be lower than a channel impeller at a comparable duty

Impeller codes and available configurations vary by manufacturer and pump size. Confirm the actual impeller drawing, free-passage dimension and performance curve before ordering.

Materials and Shaft Seal Options

Material and seal selection must account for abrasion and corrosion together. A material that performs well in clean chemical service may not provide suitable wear life in wastewater containing sand or hard particles.

Construction Materials

Available construction may include cast iron, ductile iron, stainless steel or wear-resistant alloy components. Final availability must be confirmed for the selected pump size.

Mechanical Seals

Mechanical seal arrangements can be evaluated for applications requiring controlled leakage. Seal faces and elastomers must match the liquid, temperature and operating pressure.

Gland Packing

Gland packing may be considered where controlled leakage and regular adjustment are acceptable. Flushing requirements should be confirmed from the actual fluid and sealing arrangement.

Performance, Dimensions and Testing

KWP-type pumps cover multiple hydraulic sizes and configurations, so one maximum flow, head, temperature or nozzle range should not be applied to every pump. First Pump confirms the following information for the selected configuration.

Technical Item	Confirmation Method
Flow, head and efficiency	Confirmed on the model-specific pump curve at the selected speed and impeller diameter
Working pressure and temperature	Confirmed from casing design, material, flange rating and seal arrangement
Connection and installation dimensions	Confirmed on the approved dimensional drawing before production
Materials and coating	Confirmed in the quotation, technical agreement and material documentation
Inspection and testing	Hydrostatic, dimensional, balancing, material and performance testing can be specified where required

Testing note: If performance testing to ISO 9906 or another standard is required, include the requested standard and acceptance grade in the inquiry. Testing requirements must be agreed before production.

How to Select a KWP Non-Clogging Pump

Reliable pump selection starts with the system duty and fluid data. Provide the following information so the hydraulic size, impeller, material, seal and motor can be reviewed together.

Required flow: Normal, minimum and maximum operating flow.
Total dynamic head: Static lift, discharge pressure and piping losses.
Fluid details: Name, composition, specific gravity, pH and temperature.
Solids information: Concentration, maximum particle size, hardness and shape.
Fibres and rags: Type, length and expected concentration.
Gas and sand content: Required for impeller and suction-system selection.
Suction conditions: Liquid level, suction pipe layout and available NPSH.
Materials and seal: Abrasion, corrosion, leakage and flushing requirements.
Drive information: Motor frequency, voltage, speed and power limitations.
Operating schedule: Continuous, intermittent, standby or variable-flow service.

KWP vs. Submersible and Self-Priming Sewage Pumps

The correct sewage pump type depends on where the pump is installed and how liquid reaches the suction inlet. A KWP-type pump should not be described as a submersible pump.

Pump Type	Installation	Typical Use
KWP-Type Non-Clogging Pump	Horizontal, dry-installed	Industrial wastewater, pulp stock and solids-containing process liquids
WQ Submersible Sewage Pump	Wet-installed with the pump and motor submerged	Sumps, sewage stations, wastewater tanks and applications requiring submerged installation

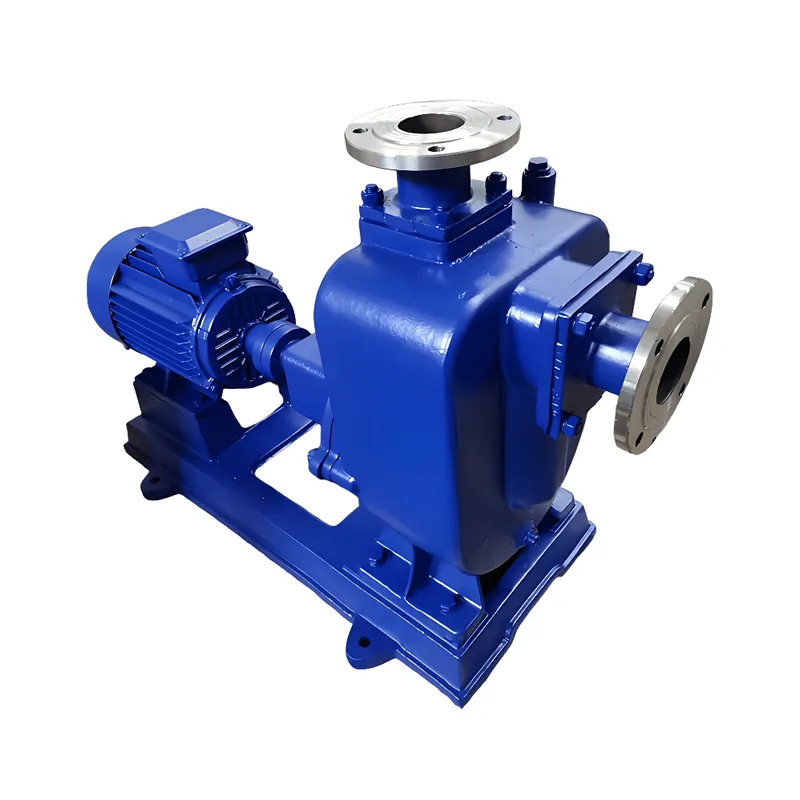

ZW Self-Priming Sewage Pump	Surface-mounted with self-priming capability	Wastewater transfer where the pump is located above the liquid level

KWP Replacement and Compatibility Confirmation

A KWP model name alone is not sufficient to confirm interchangeability. For replacement selection, provide the existing pump information and operating data listed below.

Existing Pump Information

Complete model and nameplate photo
Pump and impeller size
Speed and rotation direction
Material and shaft seal
Motor and coupling details

Project and Installation Data

Required flow and total head
Fluid and solids information
Foundation and installation drawing
Flange and connection dimensions
Available installation space

Replacement compatibility must be confirmed from the hydraulic duty, dimensions, materials, impeller design and seal arrangement rather than from the KWP model name alone.

Frequently Asked Questions

Is a KWP pump submersible?

No. A standard KWP-type pump is a horizontal, dry-installed centrifugal pump. If the pump and motor must operate submerged, consider a dedicated submersible sewage pump.

What fluids can a KWP non-clogging pump handle?

Depending on its impeller and materials, it can handle pre-treated sewage, industrial wastewater, pulp stock and other solids-containing process liquids. Maximum solids size, fibre content, abrasion, corrosion and temperature must be reviewed before selection.

Which impeller is suitable for fibrous wastewater?

A vortex or free-flow impeller may provide better free passage for wastewater containing long fibres, rags or entrained gas. However, the final choice must balance clogging resistance, hydraulic efficiency, solids size and expected wear.

Can First Pump supply a replacement for an existing KSB KWP pump?

First Pump can evaluate a KWP-type replacement after reviewing the original model, pump curve, dimensions, impeller, material, seal, driver and operating conditions. Compatibility should not be assumed until the technical data and drawings have been approved.

What information is needed for a pump quotation?

Provide the required flow, total head, fluid name, density, temperature, solids concentration, maximum particle size, fibre content, suction conditions, material requirement, seal preference, motor data and installation drawing.

Need Help Selecting a KWP-Type Non-Clogging Pump?

Send your pump model, operating data and installation drawing for a technical review and model-specific quotation.

Request Pump Selection

KSB is a trademark of KSB SE & Co. KGaA. First Pump is an independent pump manufacturer and is not affiliated with or endorsed by KSB. References to KSB and KWP are used solely to identify application requirements and replacement compatibility. Final hydraulic performance, materials and dimensions must be confirmed before ordering.
