FMCR Slurry Pumps

Model 1: First Pump^® MC-R Rubber-Lined Mill Circuit Slurry Pump

The MC-R Rubber-lined Mill Circuit Slurry Pump is a rubber-lined variant optimized for cost-effective wear resistance in coarse-to-fine abrasive slurries. It balances high resilience with structural safety, making it a top choice for mill discharge and cyclone feed applications where particle impact (e.g., ball scats) is common.

Key Features & Materials

• Dual-Layer Construction: Thick, high-resilience elastomer liners housed within a ductile iron outer casing. The outer casing ensures structural integrity and high-pressure containment, while the rubber liner absorbs impact and resists abrasion.

• Versatile Components: Equipped with a metal impeller (for strength) and optional elastomer or metal throatbush/frame plate liner inserts—allowing customization for specific slurry characteristics.

• Safety-Centric Design: Split outer casing enables safe shutdowns in case of liner failure, preventing catastrophic leaks or spills.

Core Benefits

• Extended Wear Life: Advanced elastomer compounds resist cutting, gouging, and particle abrasion, outperforming traditional materials in fine-to-coarse slurry environments.

• Cost & Safety Efficiency: Rubber liners are lighter than metal alternatives, reducing maintenance labor and injury risks during component replacement. They also lower material costs compared to heavy metal liners.

• Maximized Uptime: Liners can be fully worn down before replacement (no premature casing removal), and quick access to internals simplifies inspections.

Ideal Applications

• Mill discharge and cyclone feed (especially with ball scats or coarse mineral particles).

• Slurry transfer in gravel dredging, coal processing, and non-extreme pressure mineral circuits.

Technical Specifications

• Discharge Size Range: 125mm to 760mm (5” to 30”).

• Core Materials: Elastomer liners (standard high-resilience rubber) + ductile iron outer casing + metal impeller.

Model 2: First Pump^® MC-M Metal-Lined Mill Circuit Slurry Pump

The MC-M Metal-lined Mill Circuit Slurry Pump is an all-metal variant designed for high-pressure, high-abrasion environments where slurry containment and safety are paramount. It is ideal for plants prioritizing durability in overflow scenarios or aggressive mineral processing duties.

Key Features & Materials

• Dual-Layer Metal Protection: High-chrome white iron liners (exceptional abrasion/erosion resistance) housed within a robust ductile iron outer casing. The liners handle coarse particle impact (e.g., from ball mills), while the outer casing prevents leaks even if liners crack.

• All-Metal Components: Metal impeller, throatbush, and frame plate liner insert—ensuring uniform wear resistance and compatibility with high-pressure surges.

Core Benefits

• Superior Pressure Handling: Built to withstand high-pressure mill discharge and cyclone feed operations without compromising performance or safety.

• Catastrophe Prevention: Dual-layer containment (liner + outer casing) eliminates risks of sudden casing breakage, a critical advantage for plants prone to mill ball overflow.

• Long-Lasting Durability: High-chrome iron liners resist extreme abrasion from dense, coarse slurries, extending component life and reducing replacement frequency.

Ideal Applications

• High-pressure mill circuits (e.g., SAG mill cyclone feed with dense slurries).

• Mineral processing plants where ball mill overflow or high solids concentration is common.

Technical Specifications

• Discharge Size Range: 125mm to 760mm (5” to 30”).

• Core Materials: High-chrome white iron liners + ductile iron outer casing + all-metal internals.

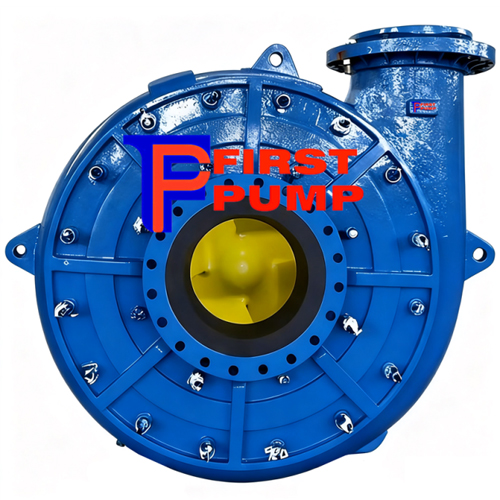

Model 3: First Pump^® MC-U Unlined Mill Circuit Slurry Pump

The MC-U Unlined Mill Circuit Slurry Pump is a rugged, unlined variant engineered for the most demanding large-particle applications. Its single-wall, all-metal design eliminates liners entirely, delivering unmatched structural integrity for coarse, abrasive slurry handling.

Key Features & Materials

• Single-Wall All-Metal Construction: Thick-sectioned high-chrome white iron casing and components (impeller, throatbush, frame plate liner). No liners mean no risk of liner detachment or premature wear points.

• Optimized for Large Particles: Streamlined internal passages and heavy-duty metal components handle oversized solids and dense slurries without clogging or damage.

Core Benefits

• Maximum Structural Resilience: Eliminates liner-related failures (e.g., liner shifting, tearing) and withstands extreme impact from large particles (e.g., coarse ores, gravel).

• Low Lifecycle Costs: Simplified design reduces part replacement needs (no liners to swap) and lowers maintenance time. Energy-efficient hydraulics further cut operational costs.

• Reliable Uptime: Robust construction minimizes unscheduled downtime, making it ideal for continuous-duty applications like tailings management or coarse mineral transport.

Ideal Applications

• Large-particle slurry transport (e.g., coarse ore processing, gravel dredging).

• Rugged environments where liners would be impractical (e.g., high-impact, high-solids mineral circuits).

Technical Specifications

• Discharge Size Range: 125mm to 650mm (5” to 25”).

• Core Materials: Fully unlined high-chrome white iron (casing + all internals).

Shared Core Advantages Across All MC Models

While each MC variant is tailored to specific needs, all share industry-leading design innovations that drive performance and efficiency:

Advanced Wear Reduction:

• XA Throatbush: Adjustable wear components with 80–100% material utilization, minimizing recirculation and extending service life.

• Pre-Swirl Vanes: Patented throatbush design reduces particle impact velocity at the impeller leading edge, cutting wear by optimizing slurry flow direction.

Reduced Downtime:

• Quick Wet-End Change-Out: Replace liners, impellers, and throatbush in hours (vs. days for traditional pumps), minimizing mill shutdowns.

• Two-Piece Cover Plate: Easy access to internals for rapid inspections and component swaps.


Operational Efficiency:

• High-Efficiency Impellers: Large-diameter, low-speed design optimizes energy use (reducing power costs) and lowers slurry turbulence (cutting wear).

• Low-Flow Stuffing Box: Cuts gland water consumption by 50% and extends packing life, reducing operational costs.

Flexible Plant Integration:

• Reversible Casing: Discharge orientation can be configured for clockwise (CW) or counterclockwise (CCW) layouts, adapting to plant space and pipeline designs.

• Heavy-Duty Bearings: Robust roller bearings (housed in removable cartridges) handle heavy loads, ensuring long-term reliability under continuous use.
