Bearing Housing C004M in Various Materials

Part Name	Part No.	Material Code	Material	Material Performance Characteristics	Material Application Examples
Bearing Housing C004MG01	C004MG01	G01	Standard Grey Iron / Grey Cast Iron (Grade200)	Economical, Easy to Machine, Moderate Wear Resistance	Frame plate, Cover Plate, Expeller, Expeller Ring, Stuffing Box, Bearing House, Base
Bearing Housing C004MD21	C004MD21	D21	Ductile Iron	Higher Strength, Better Impact resistance, Alternative to G01	Frame plate, Cover Plate, Expeller, Expeller Ring, Stuffing Box, Bearing House, Base
Bearing Housing C004MC23	C004MC23	C23	Stainless Steel 316	Better Corrosion Resistance, High Temperature Resistance, and Better Oxidation Resistance, Alternative to C22	Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt, Expeller, Expeller Ring

Parts List of 3/2C-AH Slurry Pump

S/N	Part Number	Description	Drg No.	Matl	Qty	Unit Weight
1	C075C21	Shaft Sleeve	ESY2391	C21	1	2.52
2	C003MG01	Base	BSY1088	G01	1	45.00
3	C063C23	Lantern Ring	CSY2387	C23	1	1.15
4	C118C23	Lantern Restrictor	ESY3282	C23	1	1.82
5	C067C23	Neck Ring	BSY3099	C23	1	0.35
6	C044C23	Gland Assembly	CSY1594	C23	1	1.03
7	C2032D21	Frame Plate	BSY1910	D21	1	29.50
8	C2013D21	Cover Plate	BSY1552	D21	1	31.00
9	C2147A05	Impeller	CSY1339	A05	1	17.00
10	C2110A05	Volute Liner	A1-16476	A05	1	36.00
11	C2041A05	Frame Plate Liner Insert	CSY1699	A05	1	7.00
12	C117C23	Shaft Sleeve Spacer	ESY2487	C23	1	1.03
13	C078D21	Stuffing Box	CSY2301	D21	1	6.60
14	C028A05	Expeller	DSY3026	A05	1	3.40
15	C029A05	Expeller Ring	CSY2068	A05	1	5.50
16	C015ME65	Cover Plate Bolt W/2 Nuts	A3-14427	E65	4	1.47
17	C109S10	O-ring, Shaft Sleeve	ESY7494	S10	2
18	C217S50	Impeller Seal O-ring	ESY7494	S50	1
19	C2060S01	Intake Joint Ring	ESY3309	S01	1
20	C2132XLPS01	Discharge Joint Ring	ESY7163	S01	1
21	C2125S10	Volute Liner Seal O-ring	ESY7494	S10	1
22	C122R55	Expeller Ring/Stuffing Box Seal	ESY2463	R55	1
23	C108HG02	Piston Ring		G02	1	0.67
24	C109S10	O-ring, Shaft Sleeve	ESY7494	S10	2
25	C138-1E62	Grease Cup Adaptor	ESY2899	E62	1	0.29

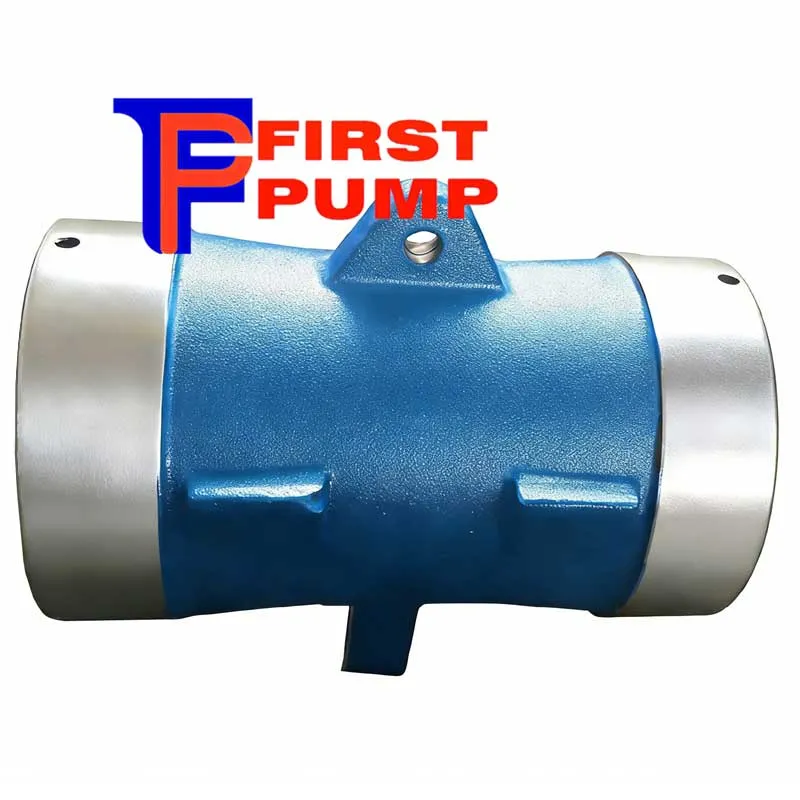

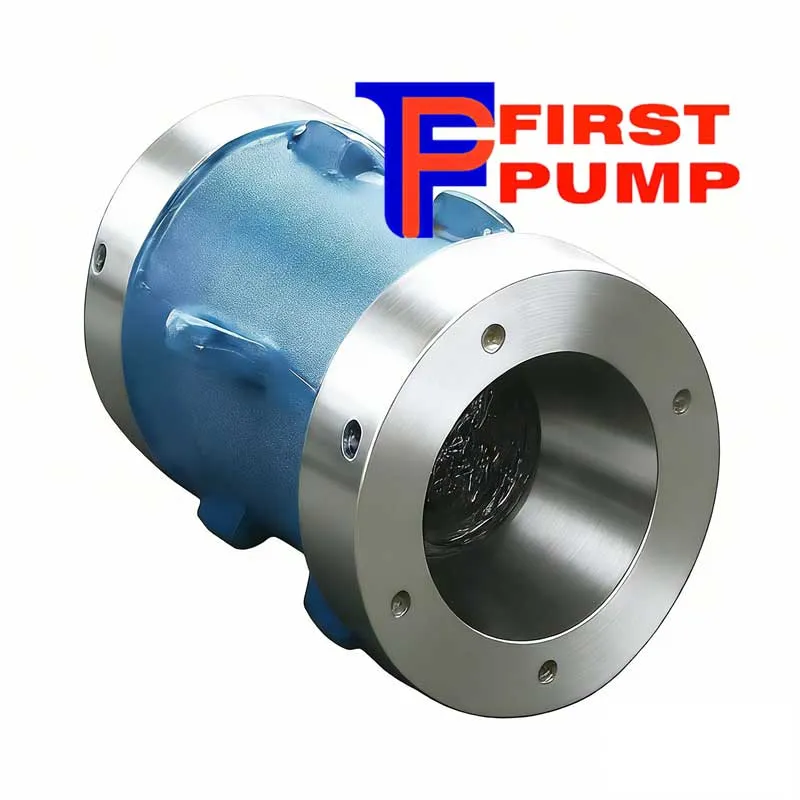

26	C004MG01	Bearing Housing		G01	1	21
27	C024-10D81	End Cover		D81	2	2.80
28	C046G01	Grease Retainer		G01	2	0.80
29	C062-10E62	Labyrinth		E62	2	1.70
30	C073ME05	Shaft		E05	1	16.42
31	C061E62	Labyrinth Locknut		E62	1	0.49
32	C045MC23	Gland Bolt, Nut & Washer		C23	2	0.19
33	C011E62	Clamp Washer	HAB-048-82	E62	4	0.33
34	C001E62	Adjusting Screw		E62	1	0.51
35	C039ME62	Frame Plate Stud - 2 Nut		E62	3	0.53
36	C005M	Bearing Assembly	A1-104755		1	35.00
