Name: KSB Etanorm Dry-installed Pump
Brand: Shijiazhuang First Pump Factory Co., Ltd.

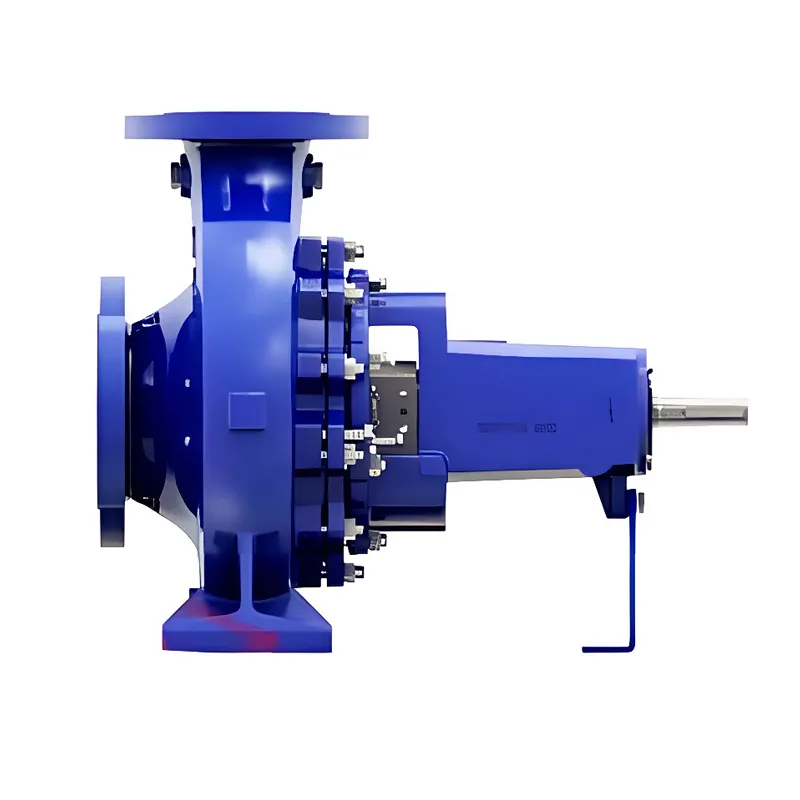

KSB Etanorm Dry-installed Pump

Engineered for extreme thermal duty, the KSB Etanorm dry-installed pump is a high-performance circulation solution built for reliability and efficiency in demanding industrial processes. These pumps are designed to ensure stable and safe operation in heat transfer systems across industries such as petroleum, chemicals, plastics, textiles, and electronics.

The flagship ETANORM SYT/RSY series combines cutting-edge hydraulic engineering with robust construction to handle media temperatures up to 350°C and working pressures up to 16 bar, setting the benchmark for critical thermal fluid applications.

Key Features & Benefits of KSB Etanorm Dry-installed Pump

Optimized for Energy Savings: Features an advanced hydraulic system with a hydrodynamically refined impeller for maximum efficiency and low NPSH requirements. Combined with IE4/IE5-class KSB SuPremE motors and optional PumpDrive variable speed control, energy consumption is significantly reduced.
Robust and Easy to Maintain: The classic back pull-out design allows for full disassembly of the rotating assembly without disturbing the pump casing or pipelines. Key components like wear rings and split bearing brackets are designed for simplified replacement, minimizing downtime.
Guaranteed Safety and Containment: Equipped with high-quality, German-manufactured Burgmann mechanical seals (single or double, compliant with EN 12756) to ensure zero leakage. Explosion-proof (ATEX) models are available for operation in hazardous environments.
Durable Construction for Long Service Life: Built with premium materials including a nodular cast iron casing, a grey cast iron impeller, and a quenched & tempered stainless-steel shaft. The bearing system, utilizing durable graphite or silicon carbide, is lubricated by the pumped medium for extended operational life.
Smooth, Quiet Operation: An advanced VenJet venting profile ensures optimal air removal and cavitation-free performance, while a low-vibration design contributes to exceptionally smooth and quiet running.

Technical Specifications of KSB Etanorm Dry-installed Pump

Parameter	Specification
Flow Rate	Up to 1,900 m³/h
Head	Up to 102 m
Temperature Range	-30 °C to +350 °C
Speed	1,450 / 2,900 rpm (50/60 Hz)
Power Range	2.2 – 110 kW

Model Range (ETANORM SYT Series)

SYT 032-160, SYT 040-160, SYT 032-200, SYT 040-200, SYT 050-160, SYT 050-200, SYT 050-250, SYT 065-160, SYT 065-200, SYT 065-250, SYT 080-160, SYT 080-200, SYT 080-250, SYT 100-200, SYT 100-250, SYT 125-200.

Primary Applications of KSB Etanorm Dry-installed Pump

Closed-circuit circulation of thermal oils and heat transfer fluids (Compliant with DIN 4754, VDI 3033).
High-temperature hot water circuits (Compliant with DIN 4752).
Industrial process systems: reactors, heat exchangers, chemical reactors, and textile heating systems.
