ELS Electrical Submersible Slurry Pumps

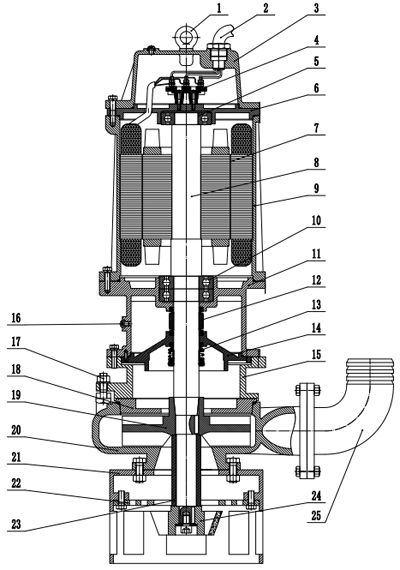

Key Structure of ELS Submersible Slurry Pumps

Unmatched Durability: Crafted to Endure

At the core of the ELS pump's resilience is its proprietary chrome alloy construction, available in three grades (High-chrome A05, Super-chrome A61, Ultra-chrome A14) to match specific wear and corrosion needs.

• Hardness exceeding 60HRC ensures resistance to even the most abrasive slurries, significantly extending service life.

• Customizable material options (including cast iron, SS304, and SS316L) let you tailor the pump to your unique operational conditions, minimizing replacement costs and downtime.

Innovative Features for Uninterrupted Performance

The ELS series integrates cutting-edge design to eliminate common pump pain points and keep operations running smoothly:

• Advanced Solids Handling: Optimized via state-of-the-art solids modeling and finite element stress analysis, it efficiently manages coarse solids (up to 60mm) and viscous slurries, reducing blockages and downtime.

• Double Mechanical Seal System: Sealed within an oil reservoir, silicon carbide faces prevent slurry ingress into the motor, while minimal exposed wear areas extend seal life.

• Anti-Cavitation Technology: Integrated winding thermostats monitor motor temperature (triggering alarms or shutdowns during overheating), and optional cooling jackets enable safe operation in low-fluid conditions.

• Agitator & Clog-Free Design: Two agitator configurations premix thick slurries to boost pumping efficiency; an optional suction saver stops blockages from oversized solids—critical for sump clean-up and thickener drains.

• Proactive Protection & Rapid Maintenance: Moisture detectors alert to fluid intrusion in real time, temperature sensors guard against overheating, and T-bolt construction allows swift disassembly for inspections or part replacements.

Powerful Performance Specifications of ELS Electrical Submersible Slurry Pumps

The ELS pump delivers consistent power across diverse applications, with key specs including:

Versatile Applications & Compatible Accessories

Ideal Use Cases

The ELS pump excels in aggressive environments across industries:

• Mining & Quarrying: Ore slurry, tailings, sump clean-up, red mud recovery

• Industrial Processing: Clarifier sludge, fly ash sumps, seawater/sand slurry transport

• Dredging & Waste Management: Sand, gravel, corrosive slurry pumping

• Coal washing, ash handling, and construction site dewatering

It is specially suited for feed materials like frac sand, mineral concentrates, pulp/paper slurries, and water with heavy solids.

Compatible Accessories

• Wear-Resistant Excavators: Attach to the pump to form an autonomous system for compacted soil, boosting dredging solid production significantly.

• Cutting Heads: Equipped with two-piece wear-resistant teeth (prevents breakage, loss, and protects locking systems) for uninterrupted operation.

• JET-RING: A high-pressure water jet ring for compact, dry, or clayey materials—works with electric/hydraulic pumps, either as a substitute for excavators or in tandem with other equipment.

Why the ELS Pump Stands Out

• Extended Wear Life: High-chrome alloys and smart design cut replacement costs and downtime.

• Adaptability: Handles variable fluid levels, abrasive feeds, and corrosive chemicals with ease.

• Total Support: Backed by a full suite of mining hoses, slurry valves, pipes, and wear-resistant spare parts.

When failure is not an option, the First Pump® ELS Submersible Slurry Pump delivers relentless performance. Contact our team today to design a tailored solution for your application's unique demands.

First Pump® – Powering Reliability, Defying Extremes.
