Name: FSP/FSPR Vertical Centrifugal Sump Pumps
Brand: Shijiazhuang First Pump Factory Co., Ltd.

FSP/FSPR Vertical Centrifugal Sump Pumps

The First Pump^® FSP/FSPR Vertical Slurry Pumps are engineered for exceptional performance in the most challenging sump, tank, and pit applications. Designed to handle abrasive, corrosive, and high-density slurries where space is limited, these robust pumps are a cornerstone of reliability in industries ranging from mining and minerals processing to power generation and chemical processing.

Built on a legacy of rugged dependability, the First Pump^® FSP/FSPR vertical slurry pumps feature a fully cantilevered design that eliminates all submerged bearings, seals, and associated components. This fundamental design principle drastically reduces maintenance needs and prevents the common failures that plague other vertical pumps, ensuring uninterrupted operation in critical processes.

Operational Efficiency & Versatility of FSP/FSPR Vertical Centrifugal Sump Pumps

No Priming Required & Reduced Blockages: The top and bottom inlet design makes the pump ideal for "snore" conditions, while screened inlets and large impeller passages minimize the risk of blockages.
Small Footprint: Requires minimal sump space, making it perfect for compact installations.
Flexible Configurations: Optional suction extension pipes (up to 2m) offer a cost-effective solution for deeper sumps. Multiple motor mounting orientations (shaft-up, shaft-down, direct-connected) provide installation flexibility.

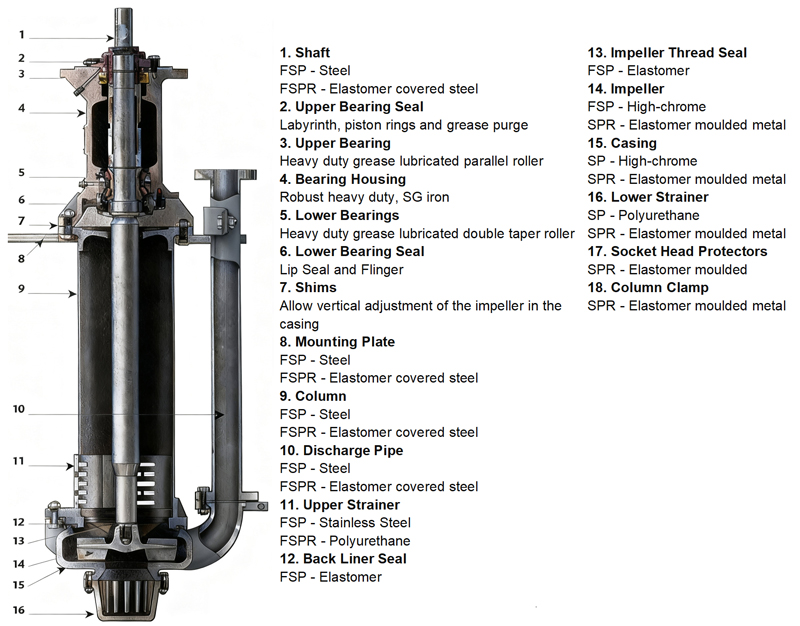

Key Features & Benefits of FSP/FSPR Vertical Centrifugal Sump Pumps

No Submerged Bearings or Seals: The pump shaft and bearings are located entirely above the sump liquid level, removing the primary source of failure in vertical pumps. This eliminates the need for expensive and continuous gland flush water, leading to zero ancillary water costs.
Heavy-Duty Bearing Assembly: A massive shaft supported by heavy-duty roller bearings in a robust housing guarantees reliable operation and long-term durability, even under demanding conditions.

Superior Durability with Material Choice

The pumps are available in two distinct configurations to match your specific slurry characteristics:

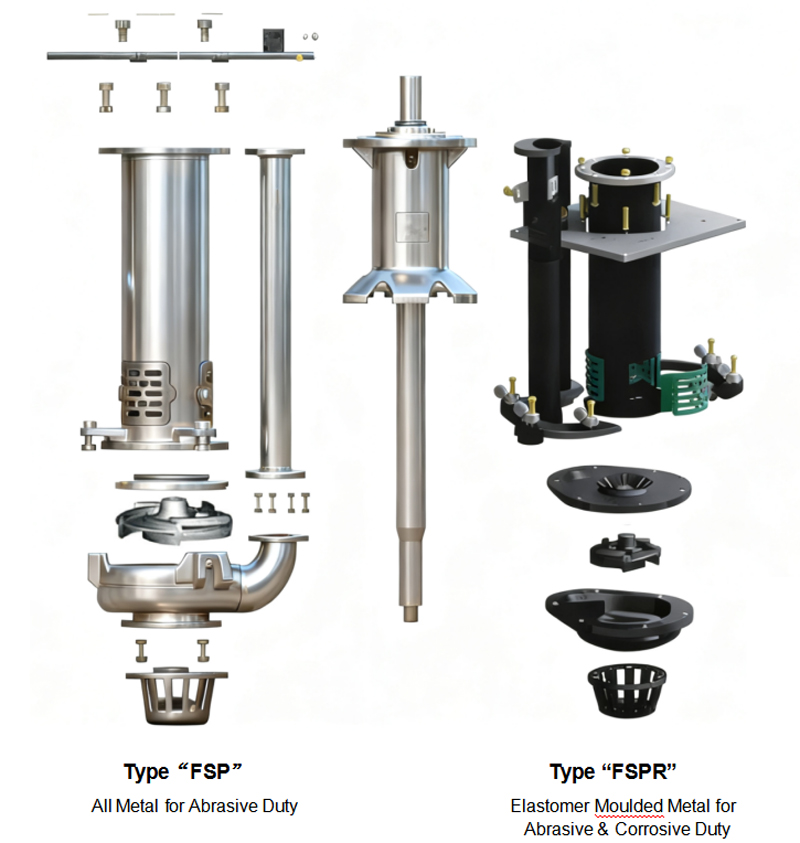

Warman SP (All-Metal): Constructed with a heavy-walled, abrasive-resistant 27% chrome alloy casing for superior protection against wear in highly abrasive applications.Warman SPR
(Rubber-Lined): Features a molded rubber casing adhered to a sturdy metal structure, offering excellent resistance to both abrasion and corrosion. Rubber-covered columns and discharge pipes provide further protection.

Advanced Impeller & Hydraulic Design

Unique Double-Suction Impeller: Fluid enters from both the top and bottom of the impeller. This innovative design balances axial thrust, reducing load on the bearings and eliminating the need for a bottom shaft seal, thereby enhancing overall pump life.
Versatile Impeller Options:
Large-Particle Impellers: Enable the pump to pass solids up to 65mm in size.
Recessed Impellers: An optional design for precious ore processing (e.g., gold) that minimizes particle damage, preserving ore value.

Technical Specifications of FSP/FSPR Vertical Centrifugal Sump Pumps

Parameter	Specification
Discharge Size Range	1.5" to 8" (40mm to 200mm)
Max. Flow Rate	Up to 800 m³/h (35,522 GPM)
Max. Head	Up to 34m (110 ft)
Max. Pressure	Up to 750 kPa (109 psi)
Particle Size Passage	From 12mm (SP40) to 65mm (SP200)
Slurry Temperature	1 to 90 °C

Material Options:

FSP (Metal): High-chrome A05 white iron, C23 stainless steel, W151 erosion/corrosion resistant white iron.
FSPR (Rubber): R55 rubber (standard), with options including Nitrile, Butyl, EPDM, and Neoprene for specific chemical and thermal resistance.

Applications

First Pump^®FSP/FSPR vertical slurry pumps are indispensable across a wide spectrum of industries and critical processes, including:

Mining & Mineral Processing: Tailings handling, flotation circuits, cyclone feed, and processing of ores such as coal, copper, gold, iron, and phosphate.
Power Industry: Fly ash handling and Flue Gas Desulfurization (FGD) systems.
Industrial & Chemical: Effluent handling, sand and gravel, chemical slurries, and aggregate production.
Specialized Applications: Sugar beet processing, pulp and paper, and general wastewater with heavy solids.

The First Pump^®FSP/FSPR Vertical Sump Pump series delivers unmatched reliability and efficiency for demanding slurry applications. By combining a maintenance-friendly cantilever design with superior materials and advanced hydraulics, these pumps provide a low-total-cost-of-ownership solution, ensuring long service life and continuous operation in the toughest environments.
