Name: UHB Corrosion-resistant and Wear-resistant Mortar Pump
Brand: Shijiazhuang First Pump Factory Co., Ltd.

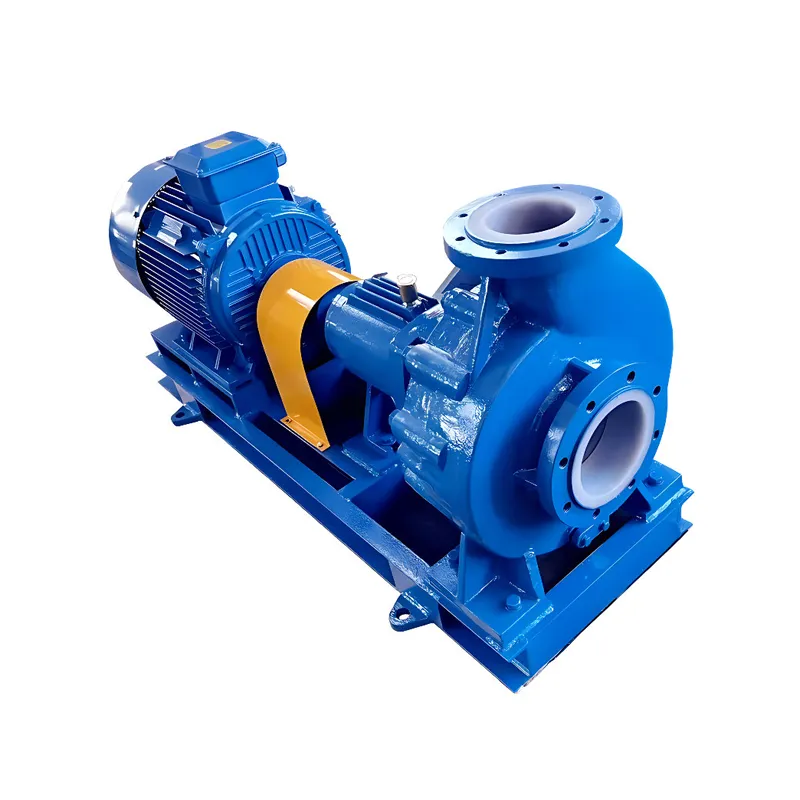

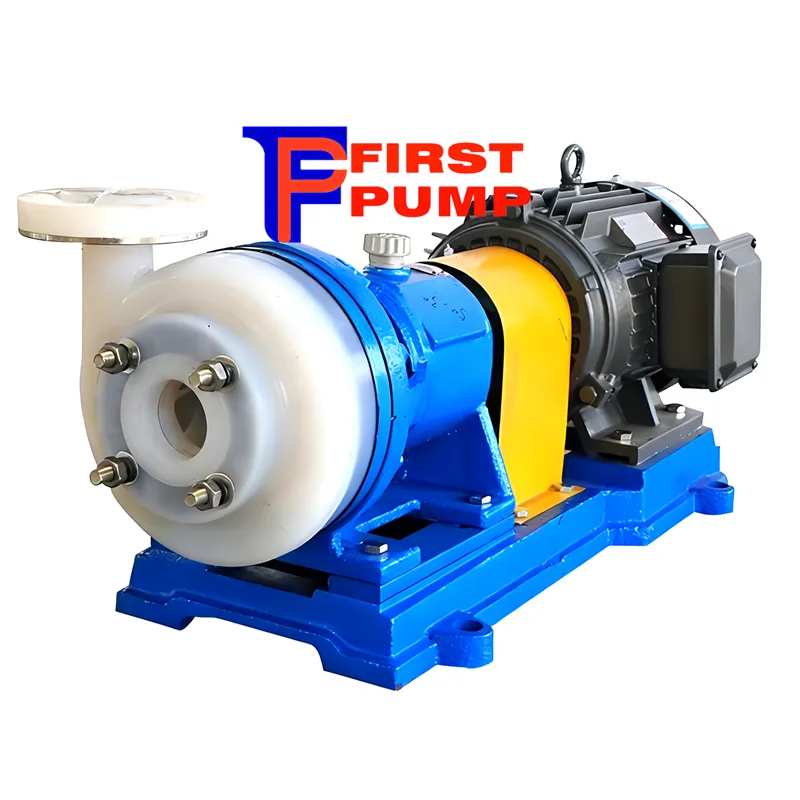

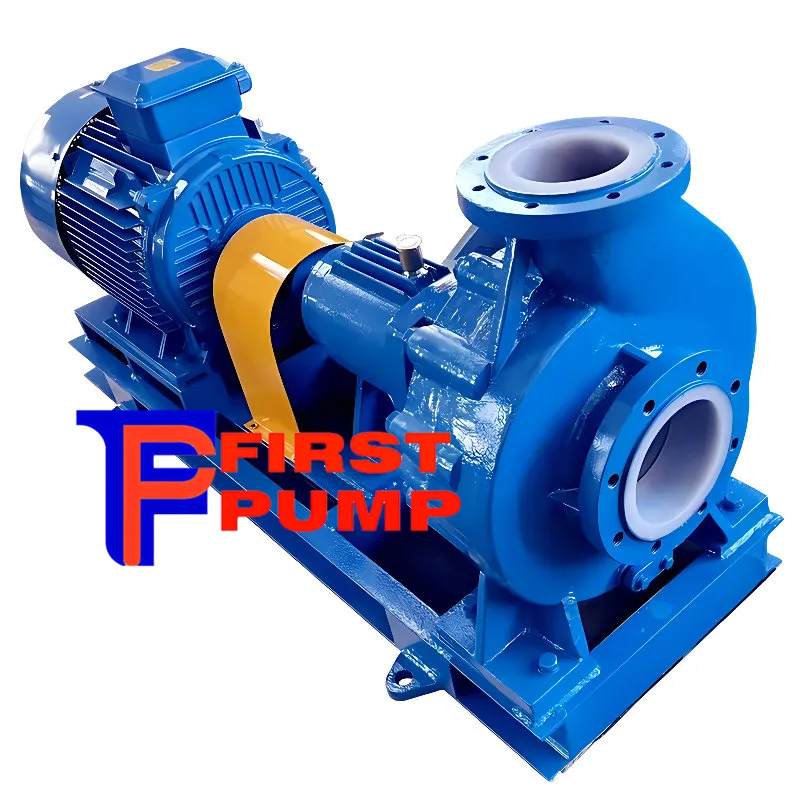

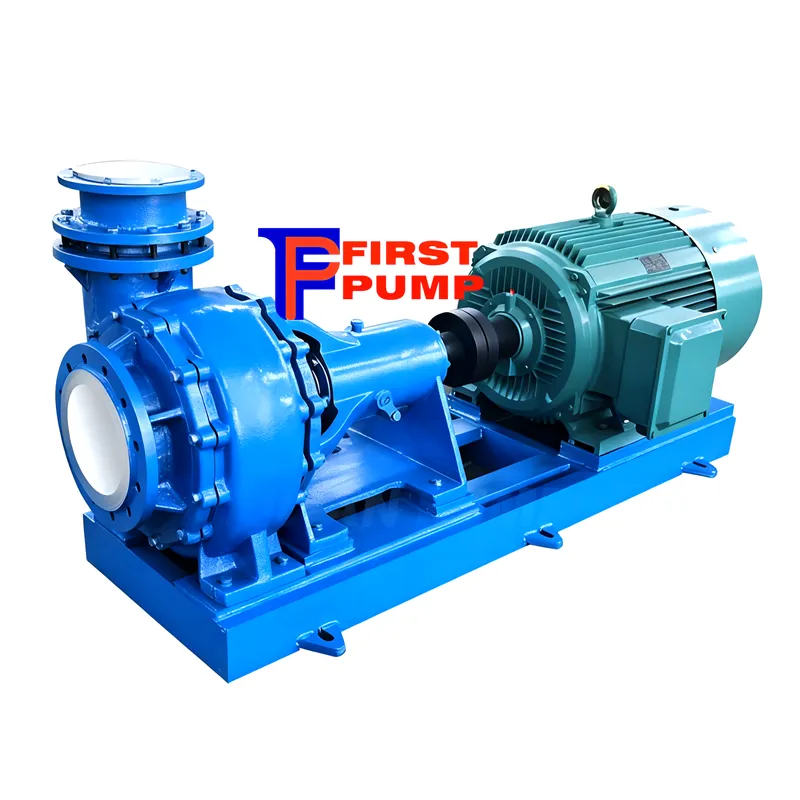

UHB Corrosion-resistant and Wear-resistant Mortar Pump

The UHB Series Chemical Processing Pumps represent a breakthrough in centrifugal pump technology, specifically engineered to handle the most demanding corrosive and abrasive media in industrial applications. These cantilever-type, single-stage, single-suction pumps are available in two primary variants—UHB-ZK (standard) and UHB-ZKG (high-temperature)—delivering exceptional performance where conventional pumps fail.

Advanced Engineering Features of UHB Corrosion-resistant and Wear-resistant Mortar Pump

Anti-Clogging Design: Semi-open impeller without front shroud and optimized flow paths prevent particle accumulation.
Low Noise Operation: UHMW-PE's vibration-damping properties reduce operational noise.
Self-Lubricating: Low friction coefficient (0.07–0.11) ensures smooth operation without external lubrication.
Non-Toxic Construction: Chemically inert materials suitable for food, pharmaceutical, and water treatment applications.

Unmatched Material Technology of UHB Corrosion-resistant and Wear-resistant Mortar Pump

At the core of UHB Series pumps lies advanced ultra-high molecular weight polyethylene (UHMW-PE) lining, providing superior protection against both chemical attack and mechanical wear:

Exceptional Wear Resistance: UHMW-PE lining offers 4x higher wear resistance than nylon or PTFE, and 7-10x superior performance to stainless steel
Superior Corrosion Resistance: Compatible with concentrated acids (up to 80% sulfuric acid, 50% nitric acid), alkalis, salts, and organic solvents
Outstanding Impact Strength: Maintains integrity at extreme temperatures from -196°C to 180°C, with 5x greater impact resistance than ABS
High-Temperature Capability: UHB-ZKG variant with modified UHMW-PE handles temperatures up to 180°C and abrasive slurries with ≤40% solids content

Key Performance Parameters of UHB Corrosion-resistant and Wear-resistant Mortar Pump

Parameter	UHB-ZK	UHB-ZKG
Temperature Range	-20°C to 100°C (120°C*)	-20°C to 180°C
Flow Capacity	5–2,600 m³/h	Customizable
Head	≤80 m	≤80 m
Inlet Diameter	32–350 mm	32–350 mm

*With modified UHMW-PE

Versatile Sealing Solutions

The UHB Series offers multiple sealing options to match specific application requirements:

K-Type Dynamic Seal: Combines auxiliary impeller (generating negative pressure during operation) with fluororubber shutdown seal
Alternative Options: K1, T/T1 packing, and C3 custom seals available for specialized applications

Proven Industrial Applications of UHB Corrosion-resistant and Wear-resistant Mortar Pump

Industry	Typical Applications
Chemical & Fertilizer	Sulfuric, phosphoric, and nitric acids; corrosive slurries; mother liquors
Metallurgy & Mining	Acidic/alkaline leaching, electrolytic solutions, ore slurries (copper, zinc, rare earths)
Environmental & Water Treatment	Municipal/industrial wastewater, electroplating effluent, high-purity water
Steel & TiO₂ Production	Acid pickling lines, titanium dioxide processing
Energy & Coal Processing	Coal slurry transport, flue gas desulfurization (FGD) systems
Food & Pharmaceuticals	Non-toxic transfer of viscous or particle-laden fluids

Customization & Versatility

The UHB Series offers extensive customization options, including fluoroplastic lining for enhanced chemical resistance, tailored designs for specific flow/head requirements, and open/closed impeller configurations to match media viscosity characteristics.

Why Choose UHB Series Pumps?

Combining cutting-edge material science with robust engineering, UHB Series Chemical Processing Pumps ensure longevity and efficiency in the harshest environments. Whether for high-temperature slurries, acidic waste streams, or abrasive mining fluids, these pumps deliver unmatched reliability while significantly reducing downtime and maintenance costs.

Ideal for industries where corrosion, abrasion, and temperature extremes converge, the UHB Series represents the smart choice for professionals seeking durable, maintenance-friendly pumping solutions.
