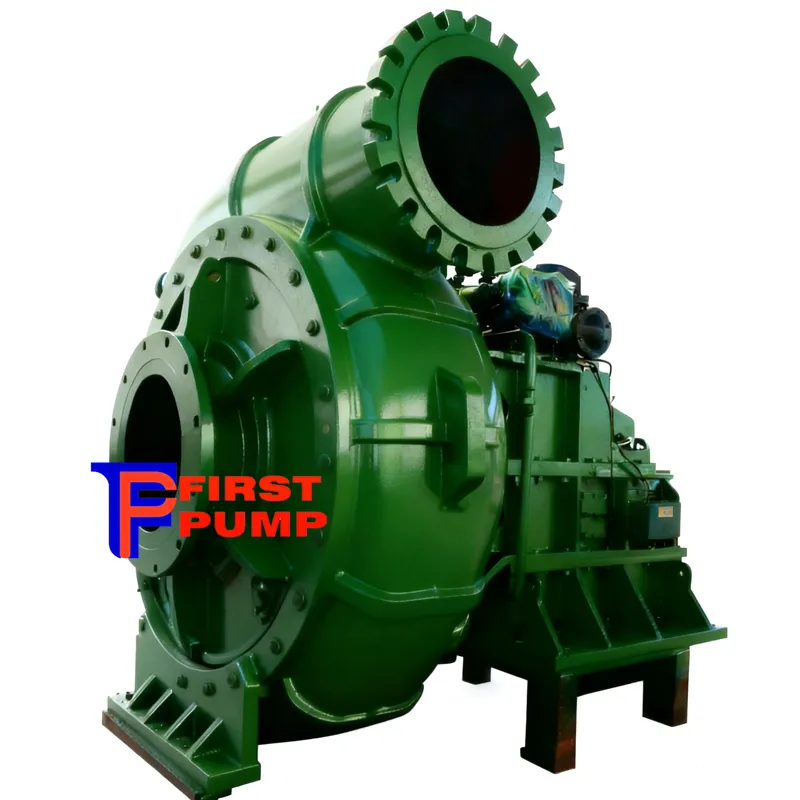

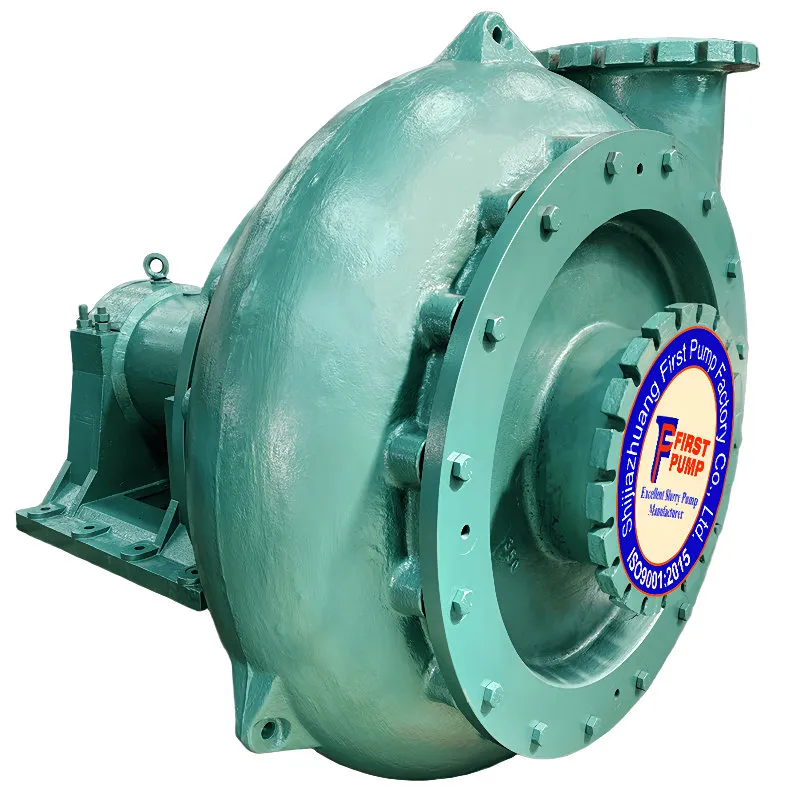

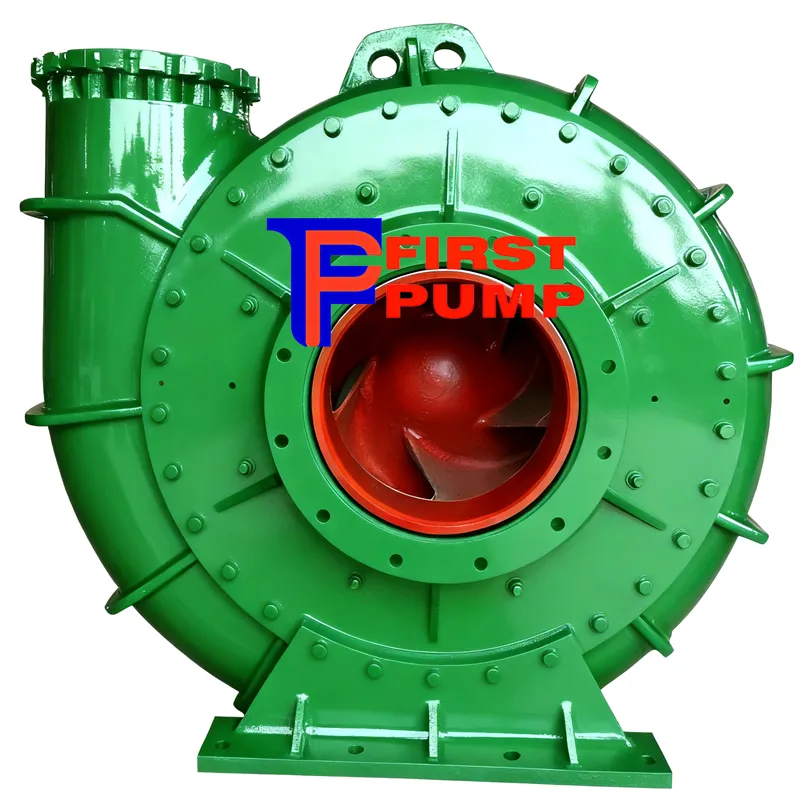

WN Dredging Pumps

Core Advantages at a Glance of WN Dredging Pumps

• Exceptional Wear Resistance: Critical wet-end parts (impeller, liners) are crafted from high-chromium alloy cast iron with a hardness of ≥58HRC, delivering an extended service life even when handling highly abrasive materials.

• Effortless Maintenance & High Reliability: The innovative front-disassembly design allows for quick access and servicing. Larger models (600WN-1000WN) feature a double-pump casing for ultimate safety, ensuring continuous operation even after liner wear.

• Superior Dredging Performance: Wide impeller passages prevent clogging, enabling smooth transport of gravel, sand, and high-plastic clays. Excellent cavitation performance ensures powerful suction and greater digging depths.

• Operational Flexibility & Efficiency: Performance can be easily adjusted by changing the impeller speed or diameter. The advanced hydraulic design ensures high operational efficiency, reducing fuel consumption and power costs.

In-Depth Features of WN Dredging Pumps

Robust and Adaptive Design

The WN pump features a lightweight yet rugged cantilever structure. For models 200WN-500WN, it offers flexible configurations with an independent support or a gearbox-integrated design, which eliminates the need for a separate bearing assembly, saving space, cost, and potential failure points.

Advanced Sealing Systems of WN Dredging Pumps

A choice of sealing options ensures zero leakage across all operating conditions:

• Models 200WN-500WN: Equipped with Packing Seal, Mechanical Seal, or a combination of both.

• Models 600WN-1000WN: Utilize a highly reliable helical casing L-rubber seal, consisting of three L-shaped seal rings and a special threaded shaft sleeve.

Optimized for Performance and Longevity

The steeply dropping performance curve provides strong adaptability to changing pipeline distances. The use of a minimal number of long-life wear parts translates to reduced maintenance, less downtime, and significant long-term cost savings.

Technical Specifications of WN Dredging Pumps

The WN Series Dredge Pump is built to deliver unmatched productivity and economy in the most challenging environments. Its focus on durability, ease of maintenance, and versatile performance ensures maximum operational uptime and a superior return on investment. For any large-scale dredging project, the WN Series provides the reliable, high-performance heart your operation needs.
