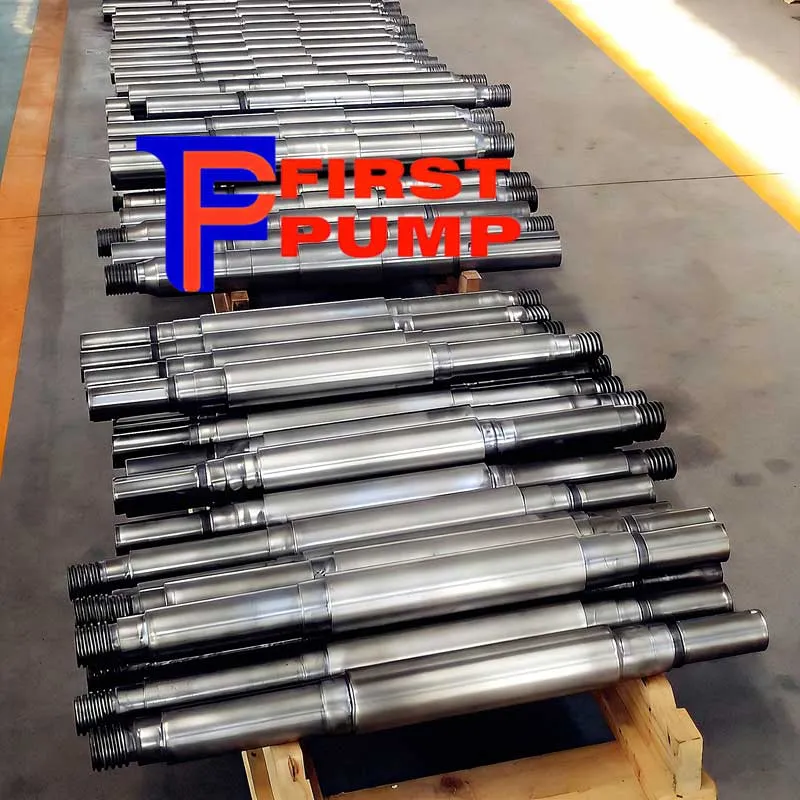

Shaft DAM073ME05 in Various Materials

Part Name	Part No.	Material
Shaft DAM073ME05	DAM073ME05	E05 (Carbon Steel ), 40CrMo, SS316L

Shafts of Material E05 Fit AH Slurry Pumps

Part Name	Pump Model
B073ME05	AH, 1.5/1, 2/1.5, B Frame
C073ME05	AH, 3/2, C Frame
CAM073ME05	AH, 4/3, C Frame
D073ME05	AH, 4/3, D Frame
DAM073ME05	AH, 6/4, D Frame
E0073ME05	AH, 6/4, E Frame
EAM0073ME05	AH, 8/6, E Frame
R073ME05	AH, 8/6, R Frame
FAM073ME05	AH, 8/6, 10/8, 12/10, F Frame
SH073ME05	AH, 10/8, 12/10, 14/12, ST Frame
TH073ME05	AH, 16/14, 18/16, 20/18, TU Frame

Parts List of 6/4D-AH Slurry Pump

S/N	Part Number	Description	Drg No.	Matl	Qty	Unit Weight
1	D138-1E62	Grease Cup Adaptor	ESY7495	E62	1	0.29
2	D075C21	Shaft Sleeve	ESY2462	C21	1	5.73
3	D003MG01	Base	BSY1140	G01	1	77.50
4	D063C23	Lantern Ring	ESY2641	C23	1	2.21
5	D118C23	Lantern Restrictor	ESY2268	C23	1	2.88
6	D067C23	Neck Ring	ESY2276	C23	1	0.85
7	D044C23	Gland Assembly	CSY1831	C23	1	1.87
8	D109S10	O-ring, Shaft Sleeve	GB3452.1-82	S10	2
9	DAM4032D21	Frame Plate	BSY1136	D21	1	110.00
10	E4013D21	Cover Plate	ESY1138	D21	1	118.00
11	E4147A05	Impeller	BSY1158	A05	1	69.00
12	E4110A05	Volute Liner	A2-16732	A05	1	120
13	E4083A05	Throatbush	BSY1697	A05	1	48.40
14	E4041A05	Frame Plate Liner Insert	ESY4032	A05	1	31.60
15	DAM117C23	Shaft Sleeve Spacer	ESY2288	C23	1	3.49
16	DAM078G01	Stuffing Box	CSY1484	G01	1	21.67
17	E4081E62	Keeper Plate	A4-102884	E62	1	0.33
18	E122S10	Expeller Ring/Stuffing Box Seal	ESY6473	S10	1
19	D108G01	Piston Ring		G01	1
20	DAM028A05	Expeller	A3-102798	A05	1	8.20
21	DAM029A05	Expeller Ring	CSY1827	A05	1	17.60
22	E4015ME65	Cover Plate Bolt W/2 Nuts	A314365	E65	4	3.19
23	F064S10	Impeller Seal O-ring	GB3452.1-82	S10	1
24	E4060S01	Intake Joint Ring	ESY2638	S01	1
25	E4132XLPS01	Discharge Joint Ring	ESY7145	S01	1
26	E4124S01	Volute Liner Seal	ESY2284	S01	2
27	D004MG01	Bearing Housing		G01	1	35.50
28	DAM073ME05	Shaft		E05	1	40.56
29	D024-10D81	End Cover		D81	2	4.30
30	D046G01	Grease Retainer		G01	2	1.70
31	D062-10E62	Labyrinth		E62	2	2.40
32	D061E62	Labyrinth Locknut		E62	1	0.80
33	D045MC23	Gland Bolt, Nut & Washer		C23	2	0.36
34	D011E62	Clamp Washer	HAB-048-82	E62	4	0.44
35	D001XLME62	Adjusting Screw	SKB049-82	E62	1	0.69
36	E4085E02	Cotter	SKB050-82	E02	2	0.67
37	D039ME62	Frame Plate Stud - 2 Nut	SKB051-82	E62	3	0.97
38	DAM005XLM	Bearing Assembly	A3-105464		1	64.00
