Name: ISG-Piping-Water-Pumps
Brand: Shijiazhuang First Pump Factory Co., Ltd.

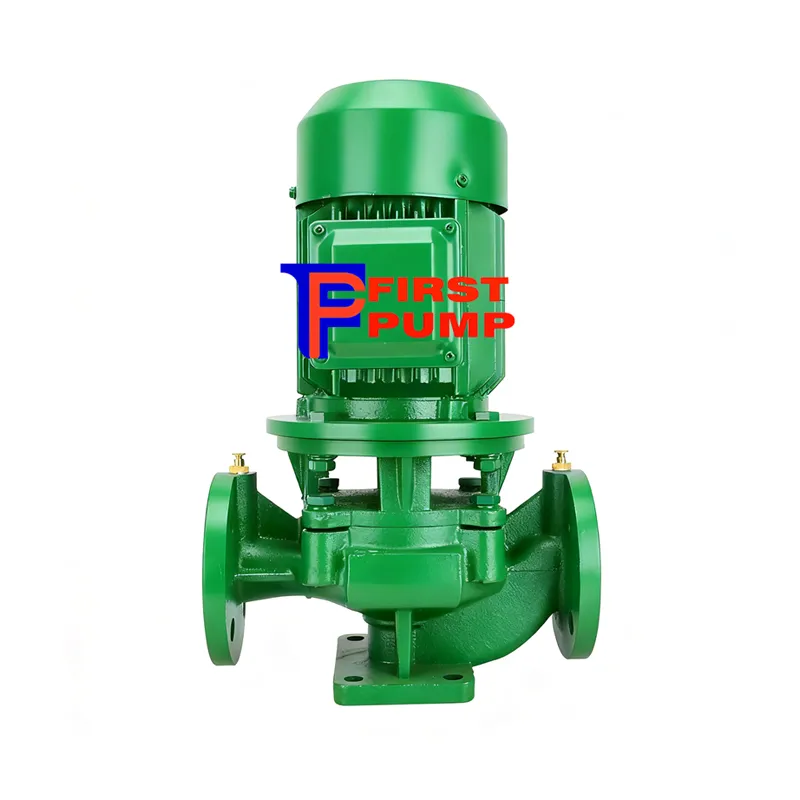

ISG-Piping-Water-Pumps

The ISG Series single-stage vertical pipeline centrifugal pump integrates optimized hydraulic models and performance parameters from proven IS-type centrifugal pump technology, delivering exceptional energy-saving operation, reliable performance, and minimal noise emission.

Engineering Excellence & Design Features of ISG-Piping-Water-Pumps

Featuring a compact vertical structure with identical inlet and outlet diameters aligned on a central axis, these pumps enable valve-like installation directly within pipeline systems. The innovative design incorporates the impeller mounted directly on an extended motor shaft, minimizing axial dimensions while creating a space-saving profile that reduces infrastructure costs. Key engineering advantages include:

Optimized Stability: Precision bearing configuration effectively balances radial and axial loads, ensuring smooth operation with minimal vibration
Enhanced Durability: Multiple sealing options including imported titanium alloy sealing rings and high-temperature mechanical seals with hard alloy materials for extended service life
Simplified Maintenance: Full rotor assembly can be accessed without disturbing pipeline connections by simply removing coupling base nuts
Installation Flexibility: Supports both vertical and horizontal mounting configurations with series/parallel operation capabilities

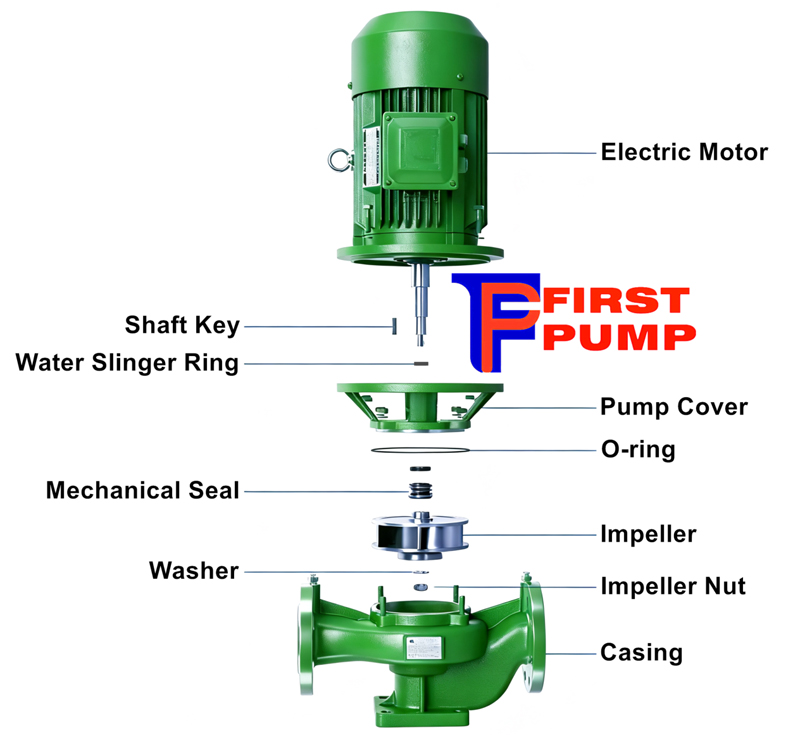

Structure and Components of ISG-Piping-Water-Pumps

Comprehensive Product Range & Applications

Derived from the core ISG platform, specialized variants address diverse industrial requirements:

ISG Standard Model: For clean water and similar viscosity liquids in industrial/urban water supply, HVAC systems, fire protection, and building pressurization (T ≤ 80°C)
IRG/GRG High-Temperature Models: Engineered for boiler circulation and heating systems with temperature resistance up to 120°C (IRG) and 240°C (GRG)
IHG Chemical-Resistant Model: Handles corrosive, non-abrasive media in petrochemical, pharmaceutical, and food processing applications (T: -20°C to +120°C)
YG Petroleum Model: Specifically designed for gasoline, diesel, kerosene and other hydrocarbon transfer (T: -20°C to +120°C)

Technical Specifications & Operating Parameters

Pressure Rating: Standard operation up to 1.6MPa system pressure (cast steel construction available for higher requirements)
Flow Capacity: Comprehensive model range with nominal diameters from 50-400mm
Environmental Compatibility: Ambient temperature<40°C, humidity <95%
Media Limitations: Solids content ≤0.1% by volume, particle size<0.2mm

The ISG series embodies a sophisticated integration of proven hydraulic efficiency and modern mechanical design, offering versatile solutions across municipal, industrial, and specialized fluid handling applications while maintaining operational reliability and minimal maintenance requirements.
