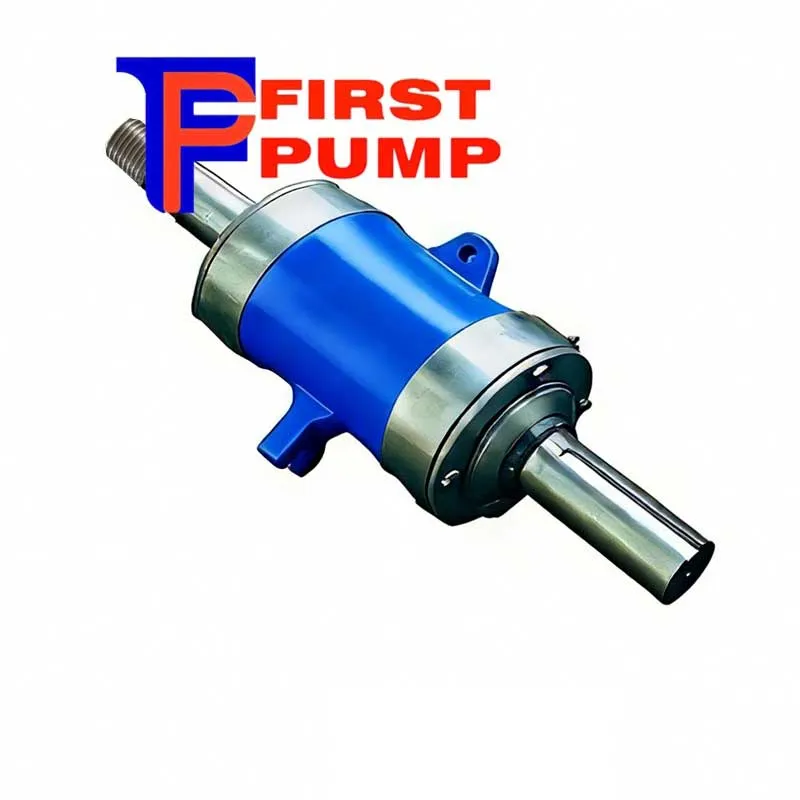

Name: 4-3D-AH Bearing Assembly D005M
Brand: Shijiazhuang First Pump Factory Co., Ltd.

Bearing Assembly Fit AH Slurry Pumps

Parts List of 4/3D-AH Slurry Pump

S/N	Part Number	Description	Drg No.	Matl	Qty	Unit Weight
1	D3125R55	Volute Liner Seal O-ring	ESY2910	R55	1
2	D3147A05	Impeller	A1-13994	A05	1	23.80
3	D3110A05	Volute Liner	ESY1165	A05	1	66.50
4	D3041A05	Frame Plate Liner Insert	ESY1818	A05	1	17.00
5	D015ME65	Cover Plate Bolt W/2 Nuts	A314429	E65	4	1.99
6	D122R55	Expeller Ring/Stuffing Box Seal	ESY2463	R55	1
7	D138-1E62	Grease Cup Adaptor	ESY2899	E62	1	0.29
8	D075C21	Shaft Sleeve	ESY2462	C21	1	5.73
9	D003MG01	Base	BSY1140	G01	1	77.50
10	D063C23	Lantern Ring	ESY2641	C23	1	2.21
11	D118C23	Lantern Restrictor	ESY2268	C23	1	2.88
12	D067C23	Neck Ring	ESY2268	C23	1	0.85
13	D044C23	Gland Assembly	CSY1831	C23	1	1.87
14	D3032D21	Frame Plate	BSY1248	D21	1	62.00
15	D3013D21	Cover Plate	ESY1283	D21	1	59.00
16	D117C23	Shaft Sleeve Spacer	ESY2816	C23	1	2.56
17	D078G01	Stuffing Box	ESY1947	G01	1	7.20
18	D028A05	Expeller	CSY1943	A05	1	3.80
19	D029A05	Expeller Ring	CSY1827	A05	1	6.60
20	D109S10	O-ring, Shaft Sleeve	ESY7494	S10	2
21	E064S10	Impeller Seal O-ring	ESY7494	S10	1
22	D3060S01	Intake Joint Ring	ESY2726	S01	1
23	D3132XLPS01	Discharge Joint Ring	ESY7166	S01	1
24	D004MG01	Bearing Housing		G01	1	35.50
25	D024-10D81	End Cover		D81	2	4.30
26	D046G01	Grease Retainer		G01	2	1.70
27	D062-10E62	Labyrinth		E62	2	2.40
28	D073ME05	Shaft		E05	1	38.74
29	D061E62	Labyrinth Locknut		E62	1	0.80
30	D045MC23	Gland Bolt, Nut & Washer		C23	2	0.36
31	D011E62	Clamp Washer	HAB-048-82	E62	4	0.44
32	D001E62	Adjusting Screw		E62	1	0.69
33	D039ME62	Frame Plate Stud - 2 Nut		E62	3	0.97
34	D005M	Bearing Assembly	A1-104602		1	62.00
