Base E003M in Various Materials

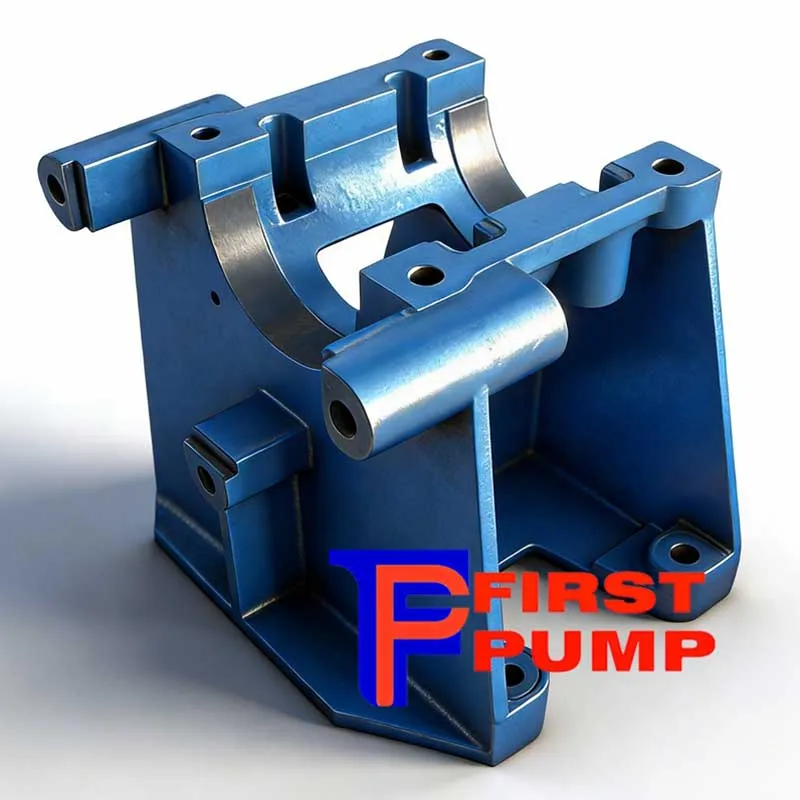

Name: 1.5-1B-AH Base B003MG01
Brand: Shijiazhuang First Pump Factory Co., Ltd.

Part Name

Part No.

Material Code

Material

Material Performance Characteristics

Material Application Examples

Base E003MG01

E003MG01

G01

Standard Grey Iron /

Grey Cast Iron (Grade200)

Economical, Easy to Machine, Moderate Wear Resistance

Frame plate, Cover Plate, Expeller, Expeller Ring, Stuffing Box, Bearing House, Base

Base E003D21

E003D21

D21

Ductile Iron

Higher Strength, Better Impact resistance, Alternative to G01

Frame plate, Cover Plate, Expeller, Expeller Ring, Stuffing Box, Bearing House, Base

Parts List of 8/6E-AH Slurry Pump

S/N	Part Number	Description	Drg No.	Matl	Qty	Unit Weight
1	D138-1E62	Grease Cup Adaptor	ESY2899	E62	1	0.29
2	F064S10	Impeller Seal O-ring	ESY7494	S10	1
3	E109S10	O-ring, Shaft Sleeve	ESY7494	S10	2
4	EAM6032D21	Frame Plate	BSY1546	D21	1	250.00
5	F6013D21	Cover Plate	ESY1138	D21	1	259.50
6	F6147A05	Impeller	BSY1158	A05	1	190.00
7	F6110A05	Volute Liner	A1-16732	A05	1	282.00
8	F6083A05	Throatbush	BSY1697	A05	1	117.50
9	F6041A05	Frame Plate Liner Insert	CSY4032	A05	1	84.00
10	E075C21	Shaft Sleeve	ESY1052	C21	1	10.44
11	EAM117C23	Shaft Sleeve Spacer	ESY2289	C23	1	6.02
12	EAM078G01	Stuffing Box	CSY2291	G01	1	41.00
13	EAM028A05	Expeller	CSY1830	A05	1	8.20
14	EAM029A05	Expeller Ring	CSY2307	A05	1	17.60
15	E003MG01	Base	BSY290	G01	1	154.00
16	E063C23	Lantern Ring	ESY2828	C23	1	2.87
17	E118C23	Lantern Restrictor	ESY3082	C23	1	4.08
18	E067C23	Neck Ring	ESY3790	C23	1	0.96
19	E044C23	Gland Assembly	CSY2081	C23	1	3.80
20	F6081E62	Keeper Plate	A4-102884	E62	1	0.39
21	F6015ME65	Cover Plate Bolt W/2 Nuts	HAB052-82	E65	4	4.30
22	E122S10	Expeller Ring/Stuffing Box Seal	ESY6473	S10	1	0.75
23	F6060S01	Intake Joint Ring	ESY2638	S01	1
24	F6132XLPS01	Discharge Joint Ring	ESY7145	S01	1
25	F8124S01	Volute Cover Seal	ESY2284	S01	1
26	E004MG01	Bearing Housing		G01	1	58.00
27	E024-10D81	End Cover		D81	2	7.00
28	E046G01	Grease Retainer		G01	2	3.60
29	E062-10E62	Labyrinth		E62	2	3.90
30	EAM073ME05	Shaft		E05	1	70.19
31	E061E62	Labyrinth Locknut		E62	1	1.41
32	E045MC23	Gland Bolt, Nut & Washer		C23	2	0.27
33	E011E62	Clamp Washer	HAB048-82	E62	4	0.74
34	E001XLME62	Adjusting Screw	HKB049-82	E62	1	1.51
35	F6085E02	Cotter	HKB050-82	E02	2	0.67
36	SBB051-82	Frame Plate Stud - 2 Nut	HKB051-82	E65	3	1.00
37	F108G01	Piston Ring		G01	1
38	EAM005M	Bearing Assembly	A1-104706		1	122.00
