Name: Trailer Mounted Engine Driven Double Suction Pumps
Brand: Shijiazhuang First Pump Factory Co., Ltd.

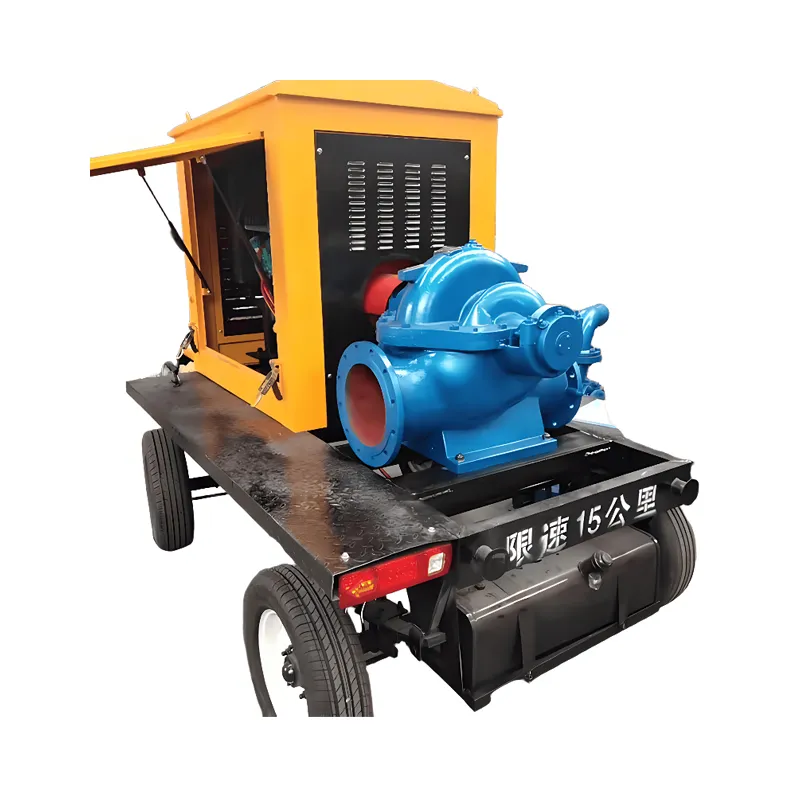

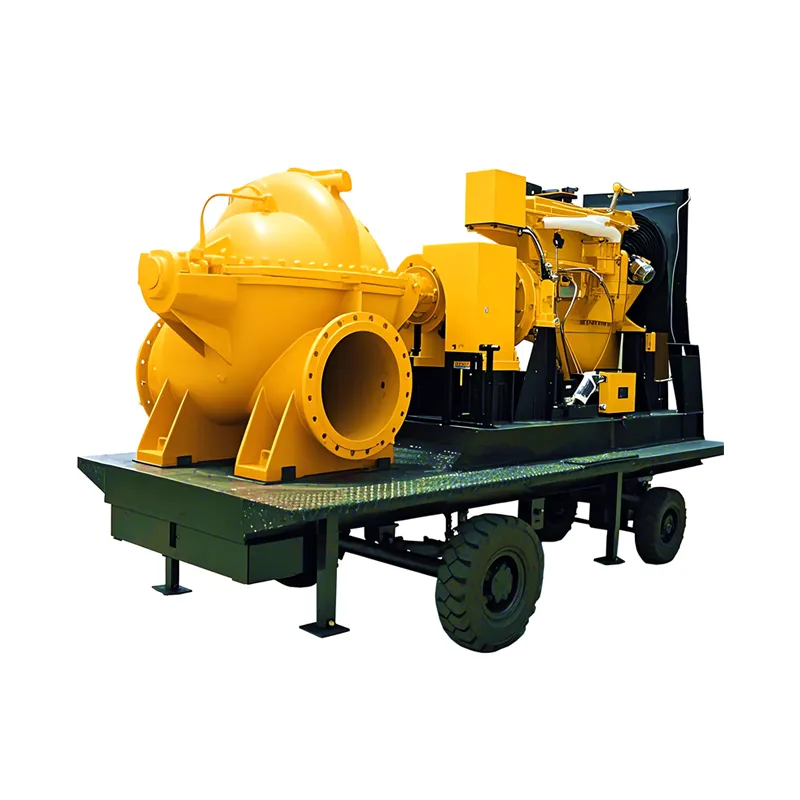

Trailer Mounted Engine Driven Double Suction Pumps

Engineered for high-volume fluid transfer challenges, this trailer-mounted, engine-driven double suction pump system delivers exceptional hydraulic performance and operational reliability. Its core design leverages a double suction impeller configuration, enabling unparalleled flow rates up to 21,800 m³/h and discharge heads reaching 140 meters. This mobile powerhouse, coupled with either diesel or gasoline engine options, provides a rapidly deployable solution for the most demanding large-scale agricultural, industrial, and municipal applications.

Core Technical Features of Trailer Mounted Engine Driven Double Suction Pumps

Advanced Double Suction Hydraulics: The symmetrically designed impeller, receiving fluid from both sides, achieves perfect axial force equilibrium. This results in exceptionally smooth operation with minimal vibration, drastically extending bearing and mechanical seal service life.
High-Strength Material Engineering: Pump casings and impellers are precision-cast from QT500 ductile iron for superior wear and corrosion resistance. The drive shaft, manufactured from 40Cr high-tensile alloy steel, ensures reliable power transmission under continuous heavy-duty loads.
Robust Mobility & Enclosure: The unit is skid-mounted on a customizable galvanized steel trailer (2 or 4-wheel) rated for all-terrain transport. A reinforced 2.0mm steel enclosure, finished with anti-corrosion coating and high-temperature paint, provides comprehensive protection.
Intelligent Control & Safety Protocol: A centralized LCD interface allows for real-time monitoring of all critical parameters. The system incorporates comprehensive safeguards, including emergency stop, overload protection, and automated fault alerts for fail-safe operation.

Technical Specifications of Trailer Mounted Engine Driven Double Suction Pumps

Performance Range: Flow: 126 - 21,800 m³/h; Head: 10 - 140 m
Power Source: Configurable Diesel or Gasoline Engines
Mobility: Road-ready trailer with speeds up to 60 km/h, featuring an inertial braking system.
Key Materials:
Hydraulic Components: QT500 Cast Iron
Drive Shaft: 40Cr Alloy Steel
Structure: 2.0mm Galvanized Steel with Protective Finishes

Application Spectrum of Trailer Mounted Engine Driven Double Suction Pumps

Agriculture: Large-scale field irrigation, drainage, and water management.
Industrial & Construction: Major dewatering projects, process water transfer, and plant cooling systems.
Municipal & Water Conservancy: Raw water intake, flood control, and sewage bypass operations.
Emergency Services: High-volume flood drainage and disaster relief support.

Design Advantages of Trailer Mounted Engine Driven Double Suction Pumps

Axial Thrust Cancellation: The double suction design inherently balances hydraulic forces, enhancing stability and component longevity.
Optimized Hydraulic Efficiency: Precision-machined flow paths and impeller surfaces minimize turbulence and energy loss, reducing operational costs.
Enhanced Serviceability: Strategically placed access points simplify routine inspection and maintenance procedures.
Rapid Deployment: Pre-assembled and tested as a complete trailer-mounted unit for immediate on-site operation.
