Name: FAH/FAHR Slurry Pumps
Brand: Shijiazhuang First Pump Factory Co., Ltd.

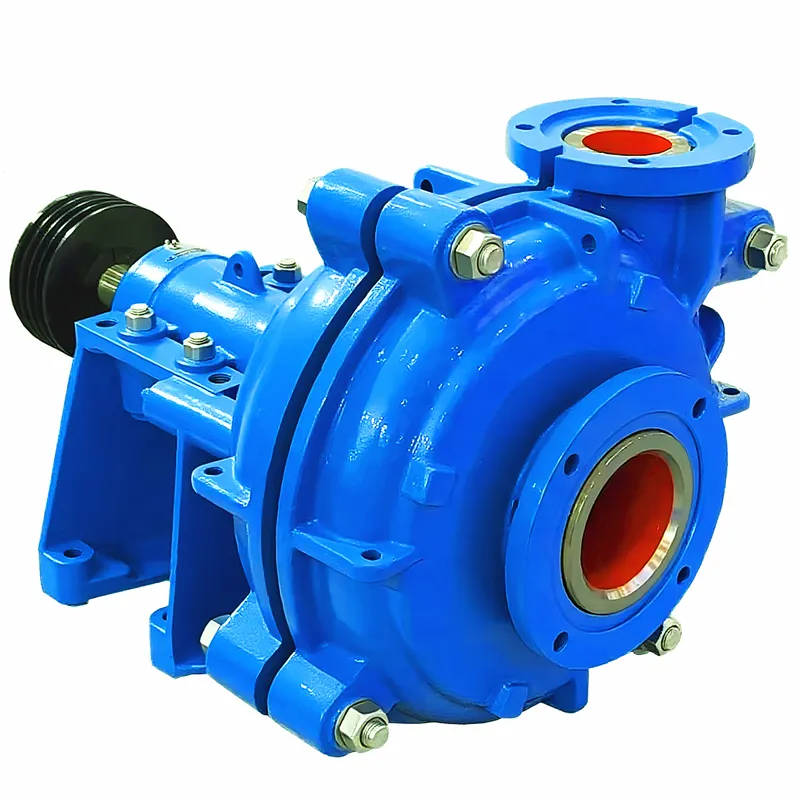

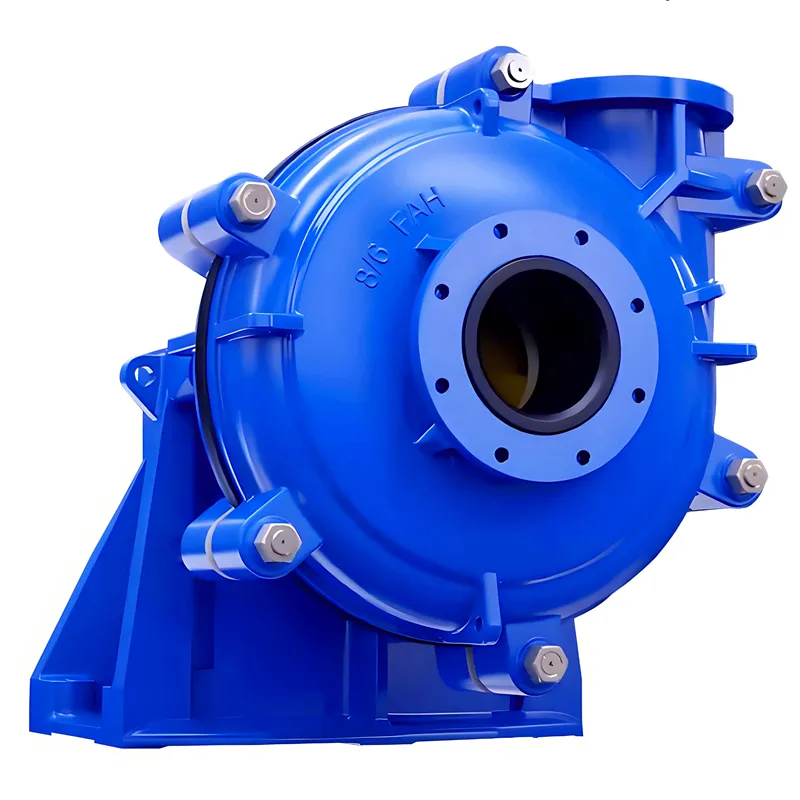

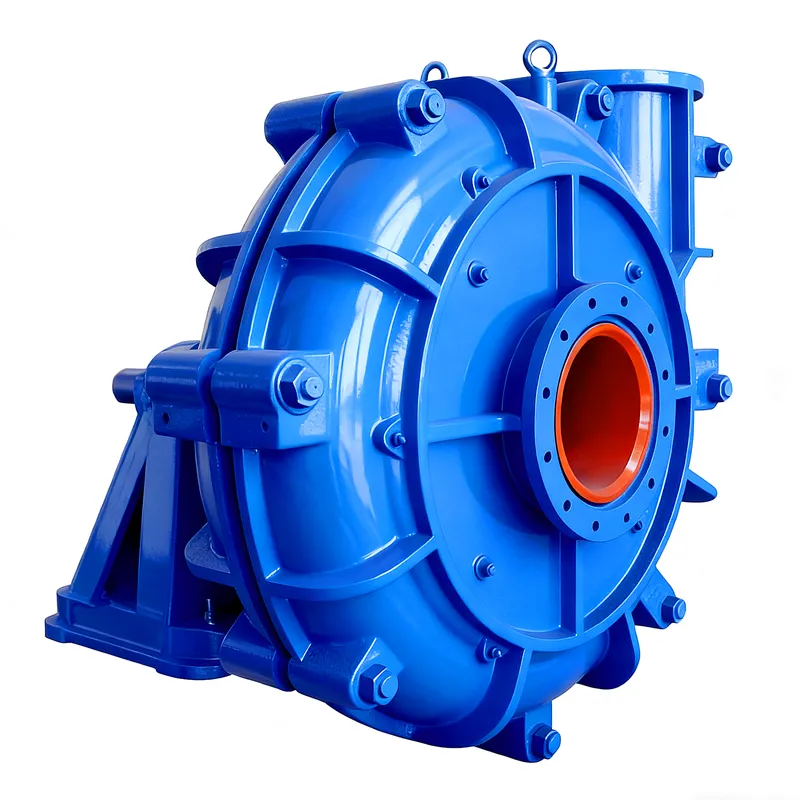

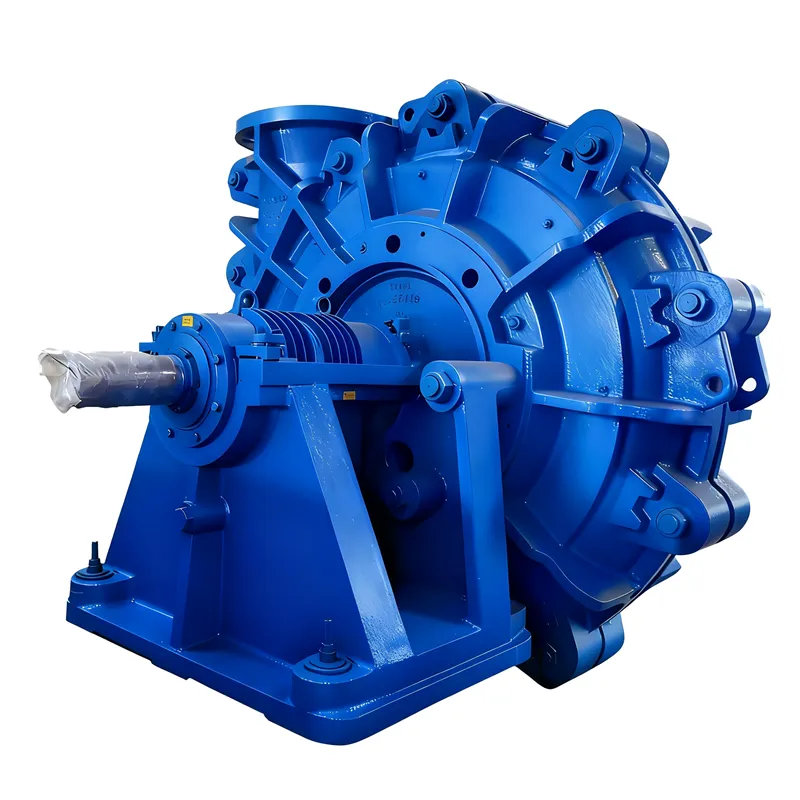

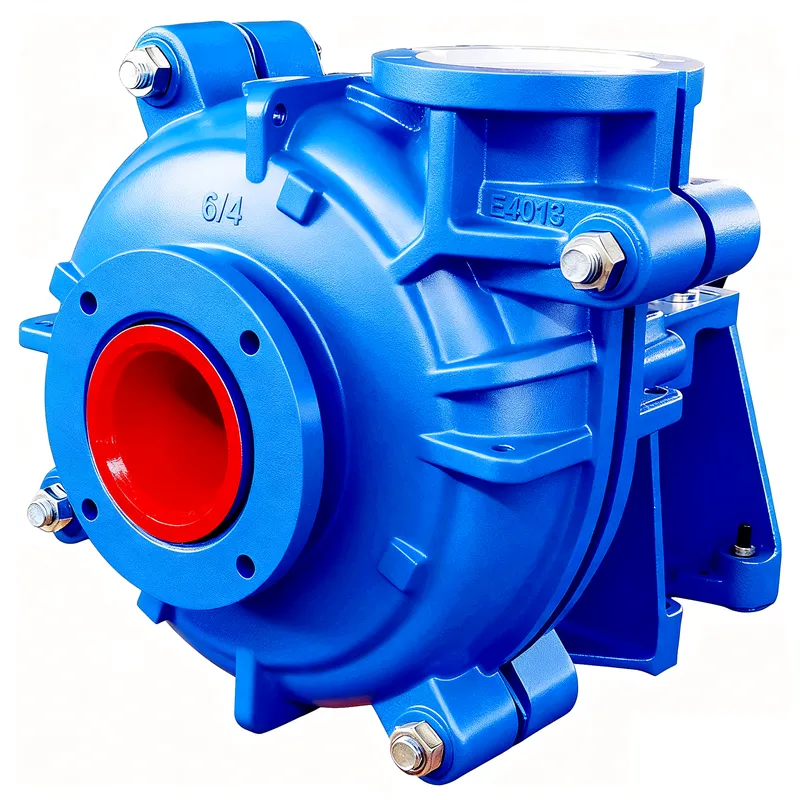

FAH/FAHR Slurry Pumps

Performs Continuous Pumping of Highly Abrasive/Dense/Corrosive Slurries in Processes from Mill Discharge to Cyclone Feed, Spirals Feed, Regrind, Flotation and Tailings in Minerals Processing Plants as well as Other Industrial Applications.

FAH Heavy Duty Horizontal Slurry Pump is built for continuous handling of highly abrasive, high-density, corrosive slurries with minimal maintenance. Its radially split casing and interchangeable hard metal or rubber liners and impellers ensure long service life and flexibility. The through-bolt design allows easy maintenance with a removable bearing assembly and optional seals that eliminate water flushing. Common dimensions across liners reduce part inventory and enable interchangeability without pipeline modifications.

Shared components across configurations minimize stockholding, with materials like polyurethane, stainless steel, and hard alloys available upon request.

Typical Applications of FAH/FAHR Slurry Pumps

Dewatering
Cyclone Feed
Regrind
Flotation
Mill Discharge
Tailings and Mine Refuse
Mining and Mineral Processin
Sugar Beet Slag Granulation
Heavy Minerals
Paper and Pulp
Bottom Boiler and Fly Ash
Power Utilities

Specifications of FAH&FAHR Slurry Pumps

Design Standards	Compliant with Hydraulic Institute, ISO 9001, ISO 14001, and OHSAS 18001 standards.
Size Range	Discharge sizes from 25mm to 450mm (approx. 1" to 18").
Performance	Capacities up to 22,000 gpm (5,000m³/hr), with heads up to 240ft (73m) and pressures to 300 psi (2,020 kPa).
Frame Power Rating	Up to 2000 kW.
Size of Handing Solids	Up to 130mm.
Temperature Range	Suitable for fluids from 1°C to 90°C.
Ph Level Range	Suitable for fluids from 1 to 13 (rubber) and 3 to 14 (metal).
Flexible Outlet Installation	outlet can be installed at 8 angles, with each angle spaced 45 degrees apart.
Material Available	Ductile-iron outer casing, High-chrome white-iron impeller and liner, or elastomer wear-resistant impeller and liner.
Shaft Seal Types	Gland Seal (Also Called Packing Seal) \| Expeller Seal \| Mechanical seal

The FAH Slurry Pump combines rugged construction with intelligent design to provide a reliable, efficient, and cost-effective solution for handling the most challenging slurries, ensuring maximum uptime and minimal operating costs.

Advanced Design & Materials of FAH/FAHR Slurry Pumps

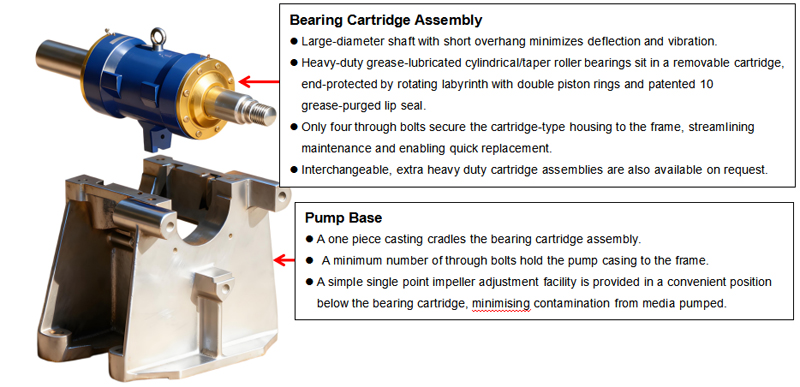

Frame Assembly

Frame Assembly of Fah Fahr Slurry Pumps

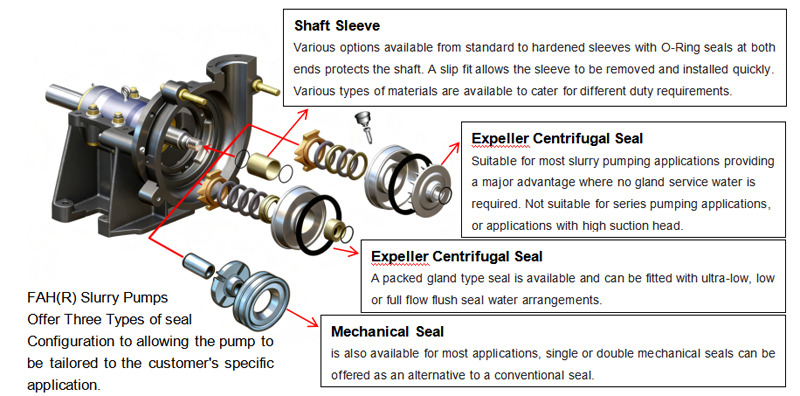

Interchangeable Seal Arrangements

Interchangeable Seal Arrangements of Fah Fahr Slurry Pumps

A Wide Range of Liner Configurations Tailored to The Customer’s Specific Application.

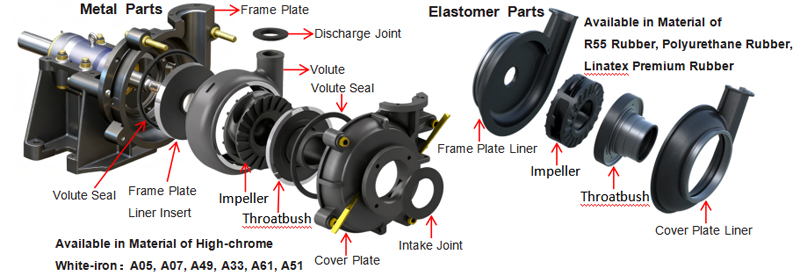

Advanced Design Materials of Fah Fahr Slurry Pumps

The FAH pump's design focuses on longevity and performance in abrasive and corrosive environments.

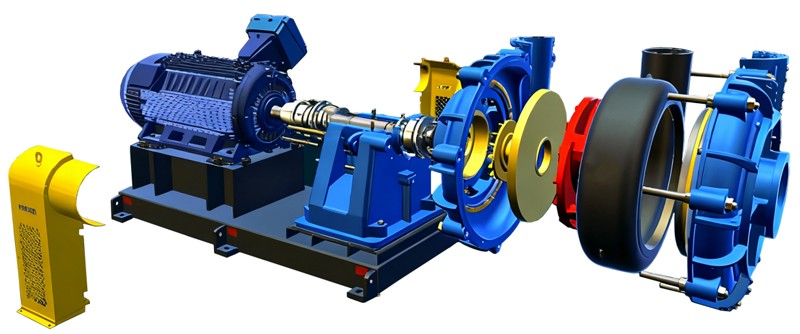

Fahr Slurry Pumps

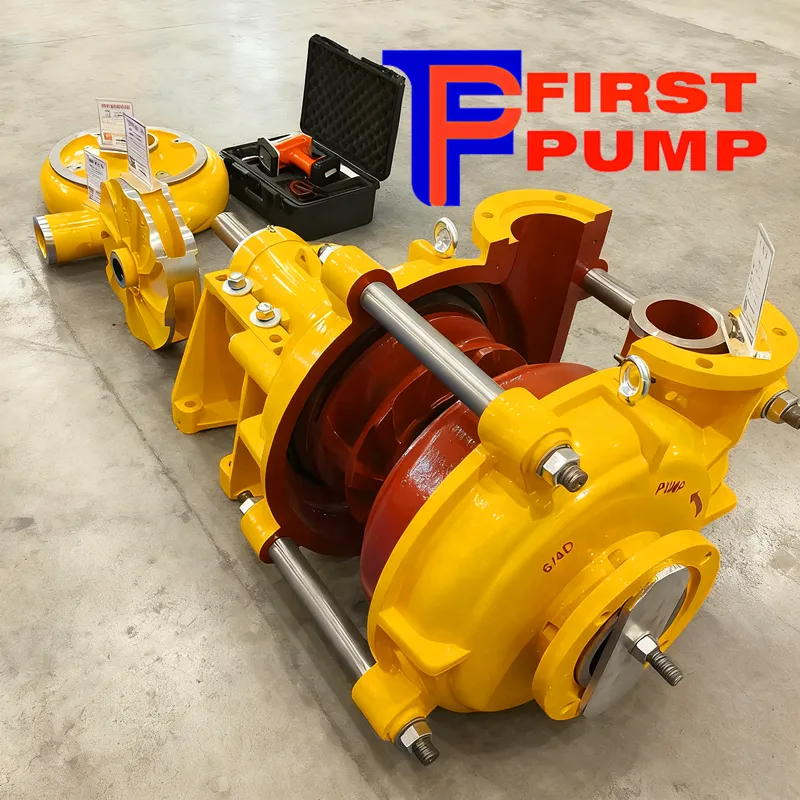

lFAH rubber and high chrome iron lined pumps feature casings which are radially split into two halves. Minimum casing bolts reduce maintenance and minimise downtime.
WRT Impeller and Throatbush Combination Technology features improved hydraulic profiles that minimize turbulence, leading to enhanced efficiency, reduced power consumption, and significantly longer wear life compared to standard impellers and throatbush.
Moulded impellers and loose liners are available in various elastomers. Loose metal liners and impellers are also available in abrasive resistant alloys and various corrosion resistant metals.
Both metal or rubber liners and impellers, or a combination of both, are interchangeable within the same pump to facilitate use in various applications. Outline dimensions are common to both metal and rubber pumps allowing interchangeability without pipeline or civils rework being necessary.

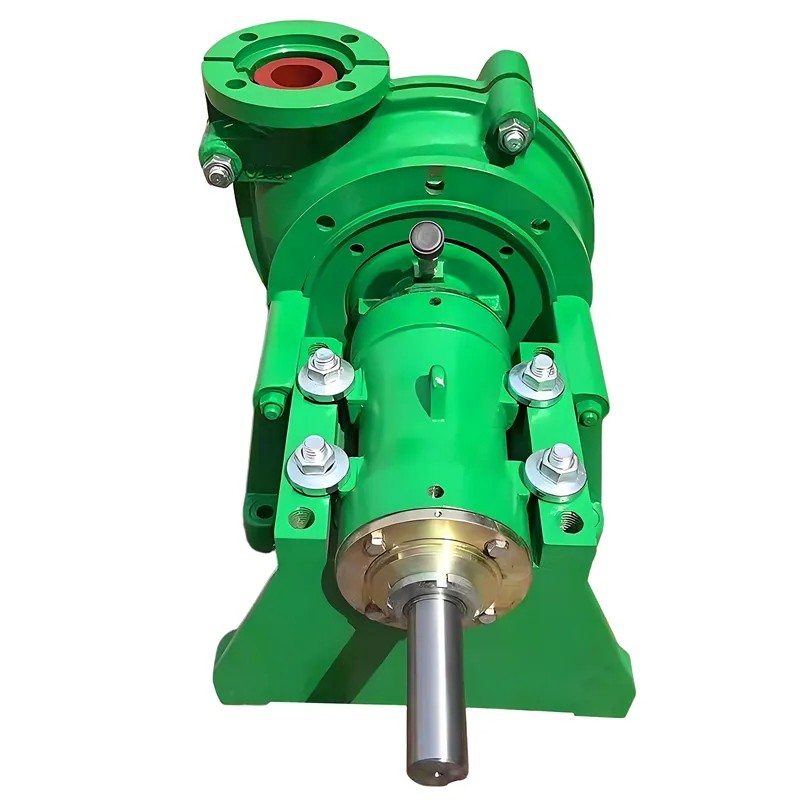

A removable cartridge type grease lubricated bearing assembly can be replaced with the pump base in-situ, facilitating easy maintenance. Extra heavy duty and oil lubricated bearing assemblies are available on request.
Pumps are available with an optional centrifugal shaft seal which eliminates the need for gland sealing water. This reduces costs, eliminates product dilution and is suitable where suction conditions permit.
Configurations of metal and rubber-lined pumps of the same frame size use the same base, bearing assembly, stuffing box and shaft sleeve, reducing stockholding to a minimum.
Providing excellent abrasion and corrosion resistance, the wetted end can be lined with Polyurethane Rubber, Linatex Premium Rubber, R55 Rubber, Hi-chrome A05 and various hard wearing alloys are available on request.
FAH/FAHR slurry pump outlet can be installed at 8 angles, with each angle spaced 45 degrees apart, offering flexible installation and adapting to different site layouts and piping connection requirements, reducing installation space and piping layout difficulty.
