Filter Press Feed Pumps

Core Attributes: Efficiency, Durability, and Adaptability

Integrating state-of-the-art technologies, the ZJE pump addresses the most stringent filtration challenges, featuring the following key advantages:

• Adaptive Performance Curve: Automatically transitions from high-flow, low-pressure feeding (initial phase) to low-flow, high-pressure filtration (terminal phase), perfectly aligning with the operational cycle of filter presses. Frequency conversion is not required, and the pump eliminates motor overload risks associated with excessive flow rates, obviating the need for valve regulation. Additionally, the low pressure during the initial phase prevents damage to filter plates and filter cloths.

• Superior Wear Resistance: Flow passage components (casing, impeller, and liner plates) are fabricated from high-chromium alloys (Cr27/Cr30), with stainless steel options available for corrosive media. The pump's dual-impeller technology achieves higher outlet pressure at lower impeller linear speeds, substantially reducing wear compared to single-impeller designs and extending the service life of components.

• Dual-Speed Versatility: Offered in standard 1450 rpm and heavy-duty 970 rpm configurations. The 970 rpm model provides enhanced stability and durability for handling abrasive slurries, such as metal concentrates, tailings, and calcium carbide slurries.

• Leak-Proof and Low-Maintenance Sealing: Equipped with lip-type rubber seals and high-quality carbon fiber packing, complemented by a high-chromium wear-resistant shaft sleeve. Mechanical seals and external water injection are not required, ensuring long-term leak-proof operation. The horizontal center-split bracket facilitates rapid maintenance without disassembling pipeline connections.

• Efficiency: The optimized hydraulic design minimizes energy consumption while maintaining consistent pressure and flow rates. The pump efficiently handles high-concentration slurries without incurring additional power wastage.

Operational Principle: Three-Stage Filtration Synergy

The ZJE pump operates through three sequential operational phases to optimize filtration efficiency, eliminating the need for manual intervention:

• Rapid Chamber-Filling Phase: Delivers high flow rates at low pressure to rapidly prime filter press chambers, accelerating the initial operational process.

• Pressure Ramp-Up Phase: As filter cake forms and system resistance increases, the pump automatically reduces flow rates and increases pressure, maintaining optimal filtration velocity.

• Constant-Pressure Phase: Maintains high pressure (with approximately 20% of the rated flow rate) to extract residual moisture from the filter cake, ensuring thorough dewatering.

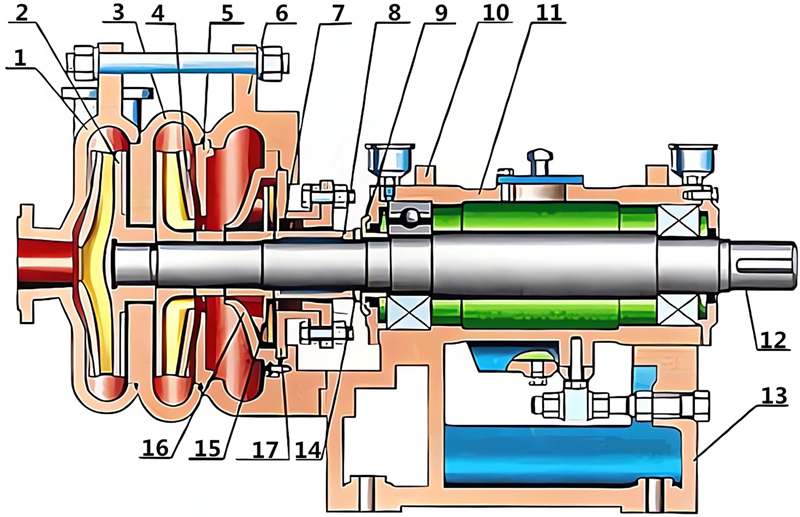

Robust Construction and Key Specifications of Filter Press Feed Pumps

The pump features a compact, heavy-duty construction engineered for harsh industrial operating environments. Key structural elements include double casings (designed to withstand high pressure and reduce fluid turbulence), high-strength shafts, and durable bearing assemblies. Core performance parameters are as follows, covering diverse operational requirements:

• Flow Rate: 30 – 305 m³/h

• Maximum Pressure: Up to 9.2 bar

• Motor Power: 22 – 90 kW

• Material Options: High-chromium alloys (Cr27/Cr30), stainless steel, etc.

• Particle Handling Capacity: Capable of processing particles up to 56% of the maximum specified size

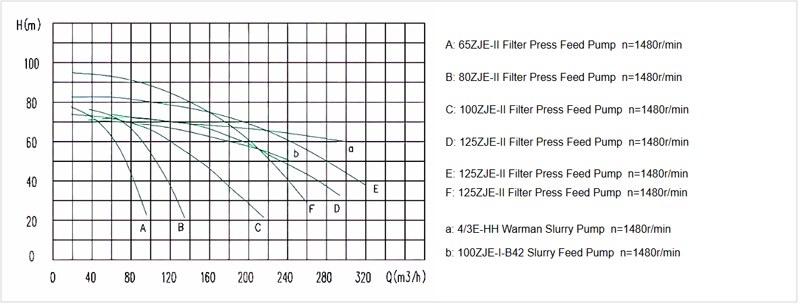

Performance Curves of ZJE Frame Filter Press Feed Pumps

Performance Parameter of ZJE Filter Press Feed Pump:

Rationale for Selecting the ZJE Filter Press Feed Pump

The ZJE pump integrates adaptive hydraulic engineering, robust durability, and user-centric design to deliver an unparalleled value proposition. Dynamic flow-pressure adjustment reduces energy consumption and component wear; leak-proof sealing minimizes unplanned downtime; and simplified maintenance lowers operational costs. As a proven solution, it ensures seamless, high-performance filtration across a wide range of industrial applications.
