Name: IHG Chemical Process Pumps
Brand: Shijiazhuang First Pump Factory Co., Ltd.

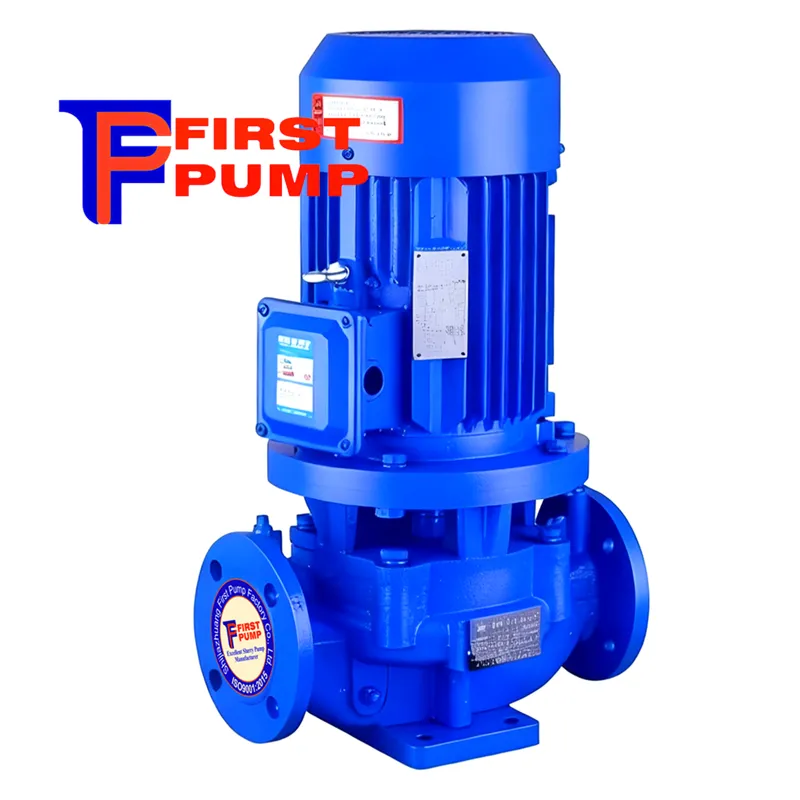

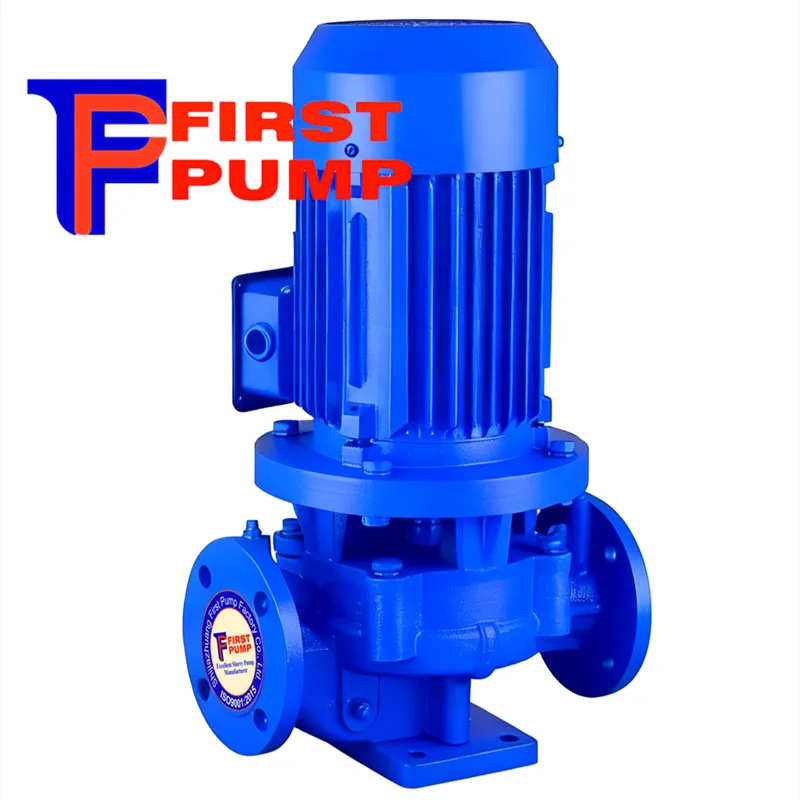

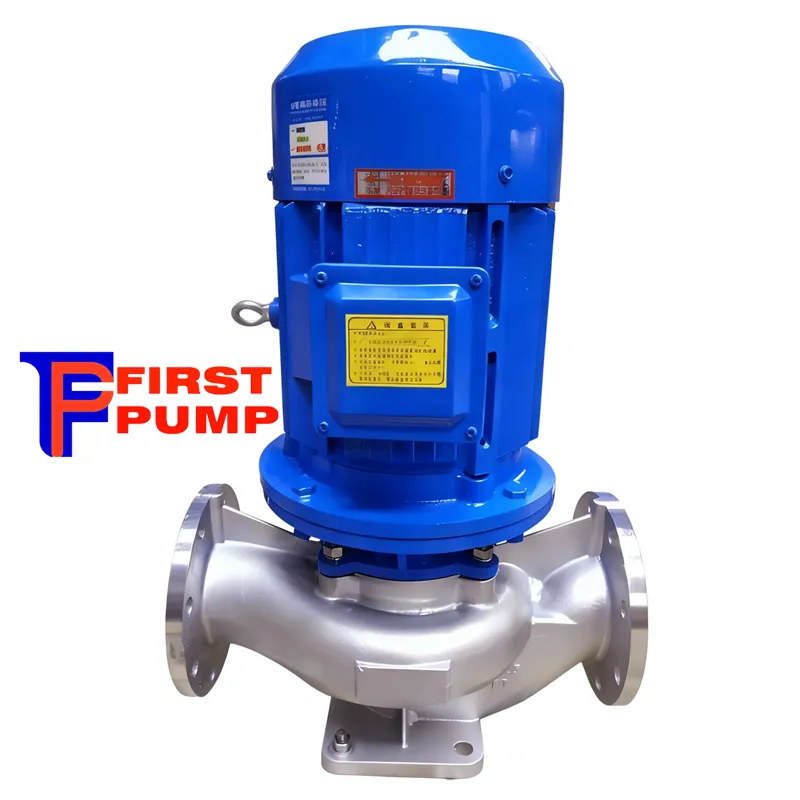

IHG Chemical Process Pumps

As a pinnacle of centrifugal pump technology, the IHG Series Vertical Chemical Processing Pumps integrate international engineering standards with cutting-edge hydraulic design, delivering unparalleled fluid handling solutions for industrial, municipal, and specialty applications. Specifically engineered for clear water and chemically similar liquids, these vertical inline pumps stand out in harsh and demanding operational environments, setting a new benchmark for performance and reliability.

Key Performance Parameters of IHG Chemical Process Pumps

Flow Rate: 1–1,500 m³/h, covering a wide range of flow demands from small-scale processing to large industrial systems.
Head: 7–150 m, providing sufficient pressure for various pipeline transportation and circulation requirements.
Motor Power: 0.18–2,500 kW, offering flexible power matching based on different operating conditions.
Temperature Range: -20°C to +120°C, adaptable to both low-temperature and medium-high temperature fluid handling scenarios.

Engineered for Excellence of IHG Chemical Process Pumps

Advanced Hydraulic Design

Derived from mature IS-type centrifugal pump technology, ensuring stable and reliable performance with proven engineering principles
Optimized impeller geometry maximizes operational efficiency, achieving up to 15% energy savings compared to conventional pumps, significantly reducing long-term operational costs
Low Net Positive Suction Head (NPSH) requirements enhance operational reliability, minimizing the risk of cavitation and extending pump lifespan

Rugged Industrial Construction

Vertical inline configuration with flanged connections (DN15–DN32) ensures compact structure, saving installation space and facilitating pipeline integration
Dual structural options to meet diverse application needs:
Direct-coupled design for standard applications, ensuring simple structure and easy maintenance
Quick-disassembly version (for motors >30kW) allows rotor removal without disturbing the existing piping system, greatly reducing maintenance time and labor costs
Superior pressure resistance: Max working pressure of 1.6 MPa and hydrostatic test pressure of 2.5 MPa, ensuring safe operation under high-pressure conditions

Premium Sealing Solutions

A comprehensive range of mechanical seal options is available to address different medium properties and operating environments, ensuring zero leakage and long-term sealing performance:

Standard option: Titanium alloy seals, offering excellent wear resistance and basic corrosion protection
High-temperature option: Tungsten carbide faces, designed to withstand the harsh conditions of high-temperature fluid handling
Corrosion-resistant option: Silicon carbide options, providing reliable protection against corrosive chemicals
Double seal arrangements: Available for hazardous fluids, ensuring maximum safety and environmental protection

Unmatched Operational Flexibility

Versatile Installation: Supports both vertical and horizontal mounting, adapting to different site space constraints and installation requirements
Flexible System Configuration: Compatible with series or parallel operation, enabling precise matching of flow and head requirements for complex systems
Strong Environmental Adaptability: Outdoor-rated design with optional weather hood, ensuring stable operation in various outdoor environmental conditions

Industrial-Grade Applications

The IHG Series pumps are widely recognized in multiple industries for their exceptional performance and reliability, with typical applications including:

Industry	Typical Uses
Chemical Processing	Acid circulation, solvent transfer, process water systems, and corrosive medium handling
Water Infrastructure	Municipal water supply, high-rise building pressure boosting, fire protection systems, and water treatment plants
Power Generation	Cooling water circulation, boiler feed water supply, and condensate handling in thermal power plants
HVAC	Chilled water systems, heat recovery loops, district heating, and air conditioning circulation
Pulp & Paper	Stock preparation, white water systems, effluent treatment, and chemical addition processes

Performance Data of IHG Chemical Process Pumps

Model	Capacity (m³/h)	head (m)	Speed (r/min)	Motor (KW)	Inlet&Outlet Diameter (mm)
15 - 80	1.1 1.5 2.0	8.5 8 7	2800	0.18	15
20 - 110	1.8 2.5 3.3	16 15 13.5	2800	0.37	20
20 - 160	1.8 2.5 3.3	33 32 30	2900	0.75	20
25 - 110	2.8 4 5.2	16 15 13.5	2900	0.55	25
25 - 125	2.8 4 5.2	20.6 20 18	2900	0.75	25
25 - 125A	2.5 3.6 4.6	17 16 14.4	2900	0.55	25
25 - 160	2.8 4 5.2	33 32 30	2900	1.5	25
25 - 160A	2.6 3.7 4.9	29 28 26	2900	1.1	25
32 - 100	4.5	12.5	2900	0.55	32
32 - 100（I）	4.4 6.3 8.3	13.2 12.5 11.3	2900	0.75	32
32 - 125	3.5 5 6.5	22 20 18	2900	0.75	32
32 - 125A	3.1 4.5 5.8	17.6 16 14.4	2900	0.55	32
32 - 160	6.5	32	2900	1.5	32
32 - 160A	4	25	2900	1.1	32
32 - 160(I)	4.4 6.3 8.3	33.2 32 30.2	2900	2.2	32

Why Professionals Choose IHG Chemical Process Pumps

Maintenance Optimized

Tool-free rotor extraction design reduces maintenance downtime by up to 70%, significantly improving operational efficiency
Standardized components simplify spare parts management, lowering inventory costs and ensuring quick replacement

Future-Proof Design

Modular construction allows for easy performance upgrades, adapting to changing production needs without full equipment replacement
Compatible with IoT monitoring systems, enabling predictive maintenance and real-time performance tracking to prevent unexpected failures

Comprehensive Support

Pre-sales: Professional application engineering support to provide customized solutions based on specific working conditions
Installation: Certified field service technicians ensure correct and efficient installation, guaranteeing optimal performance
Aftermarket: Global spare parts network provides timely supply of spare parts, ensuring minimal downtime

Certified Reliability

Manufactured in strict compliance with ISO 2858 standards, ensuring consistent quality and performance
Optional ATEX-compliant versions available for explosive environments, expanding application scope in hazardous areas

Technical Support & Customization Services

Our professional engineering team is dedicated to providing tailored solutions to meet unique application requirements, including:

Material upgrades for corrosive media, such as stainless steel and duplex alloys, enhancing corrosion resistance
Special coatings for abrasive applications, extending equipment lifespan in harsh working conditions
Custom performance curves to match specific system requirements, ensuring optimal energy efficiency and performance

Contact our fluid solutions specialists today to configure your ideal pumping system and experience the reliability and efficiency of the IHG Series Vertical Chemical Processing Pumps!
