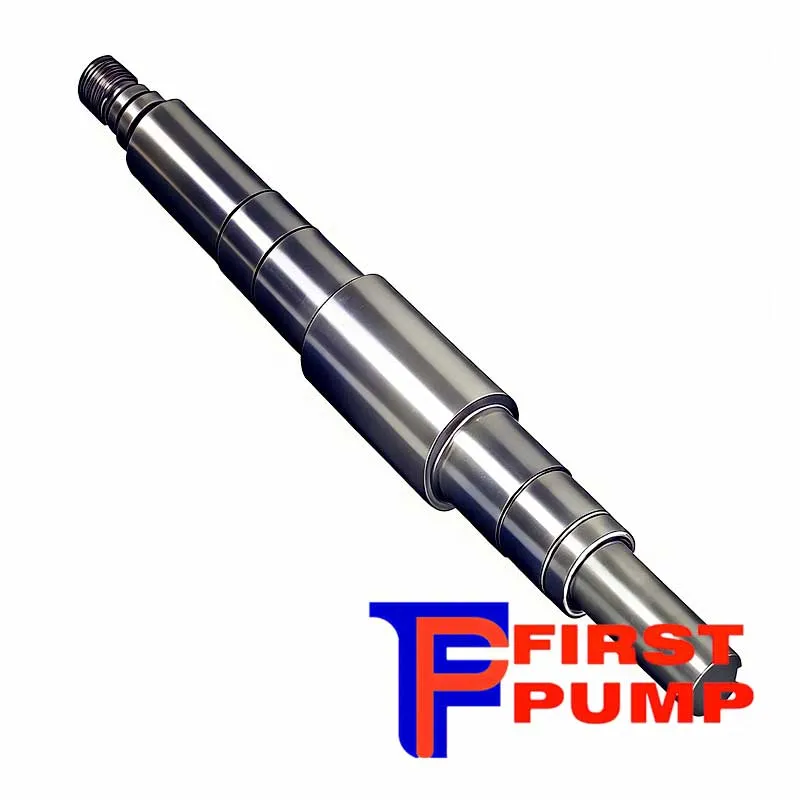

Shaft B073M in Various Materials

Part Name	Part No.	Material
Shaft B073ME05	B073ME05	E05 (Carbon Steel ), 40CrMo, SS316L

Parts List of 1.5/1B-AH Slurry Pump

S/N	Componet No.	Description	Drg No.	Matl	Qty	Unit Weight
1	B005M	Bearing Assembly	A1-104891		1	34.00
2	B011E62	Clamp Washer	ESY3418	E62	4	0.19
3	B012ME69	Clamp Bolt - 1Nut	ESY7483	E69	4	1.00
4	B217S10	Impeller O-ring	ESY7494	S10	1
5	B1125S01	Volute Frame Seal	ESY7494	S01	1
6	B1032D21	Frame Plate	BSY1720	D21	1	18.50
7	B1110A05	Volute Liner	BSY1467	A05	1	11.50
8	B1132XLPS01	Discharge Joint Ring	ESY7162	S01	1
9	B1060S01	Intake Joint Ring	ESY3328	S01	1
10	B1013D21	Cover Plate	BSY1722	D21	1	15.50
11	B1127A05	Impeller 5VOG	CSY2370	A05	1	3.90
12	B015ME65	Cover Plate Bolt - 2 Nuts	A3-14427	E65	4	1.48
13	B1041A05	Frame Plate Liner Insert	CSY2198	A05	1	3.40
14	B122S51	Expeller Ring/Stuffing Box Seal(Seal Ring)	CYS3308	S51	1
15		Rivet 3*6	GB867-86	H62	4
16		Tag 73*98	HAB020-81-75		1
17	B075C21	Shaft Sleeve	ESY2122	C21	1	1.24
18	B109S10	Shaft O-ring	ESY7494	S10	2
19	B039ME62	Frame Plate Stud - 2Nuts	ESY7224	E62	3	0.35
20	B001ME62	Adjusting Screw(1Bolt, 3Nut, 2Washers)	ESY6245	E62	1	0.28
21	B003MD21	Base	BSY792	D21	1	24.00
22	B044C23	Gland Assembly (2 Piece)	CSY1405	C23	1	0.40
23	B045E62	Gland Bolt - 1Nut - 1Washer	ESY2345	E62	2	0.19
24		Gland Clamp Bolt - 1 Nut		E62	2
25	B111Q21	Packing	ESY7495	Q21	4
26	B078	Stuffing Box	CSY2301	G01	1	3.11
27	B118C23	Lantern Restrictor	ESY2132	C23	1	1.27
28	B117C21	Shaft Spacer	ESY2131	C21	1	0.60
29	A-3	Grease Cup	GB1154-74	A3	1
30	B138-1E62	Grease Cup Adaptor	ESY3423		1	0.11
31		Gland Clamp Bolt -1Nut		E62	2	0.40
32	B111Q21	Packing	ESY7495	Q21	2
33	B029A05	Expeller Ring	CSY1402	A05	1	2.80
34	B028A05	Expeller	DSY3025	A05	1	0.70
35	B067C23	Neck Ring	BSY3099	C23	1	0.38
36	B063C23	Lantern Ring	ESY2118	C23	1	0.73
37	B045E62	Gland Bolt - 1Nut - 1Washer	ESY2345	E62	2	0.19
38	B044C23	Gland Assembly(2 Piece)	CSY1405	C23	1	0.40
39	B062-10D81	Labyrinth	A119920	D81	2	0.80
40	B046G01	Grease Retainer	ESY2114	G01	2	0.43
41	B004MG01	Bearing Housing	CSY1399	G01	1	9.80
42	B009	Bearing	ESY7478		2	1.50
43	B025	FS Shim Set	ESY2111		1	0.20
44	B024-10D81	End Cover	CSY1399	D81	2	1.80
45	B073ME05	Shaft	CSY1409	E05	1	7.79
46	B108G02	Piston Ring	A371734	G02	4	0.50
47	B061E62	Labyrinth Locknut	ESY2116	E62	1	0.36
48	B089-10S10	Bearing Seal Ring	A119582	S10	2	0.10
49	B070ME05	Shaft Key	BSY7482	E05	1	0.10
