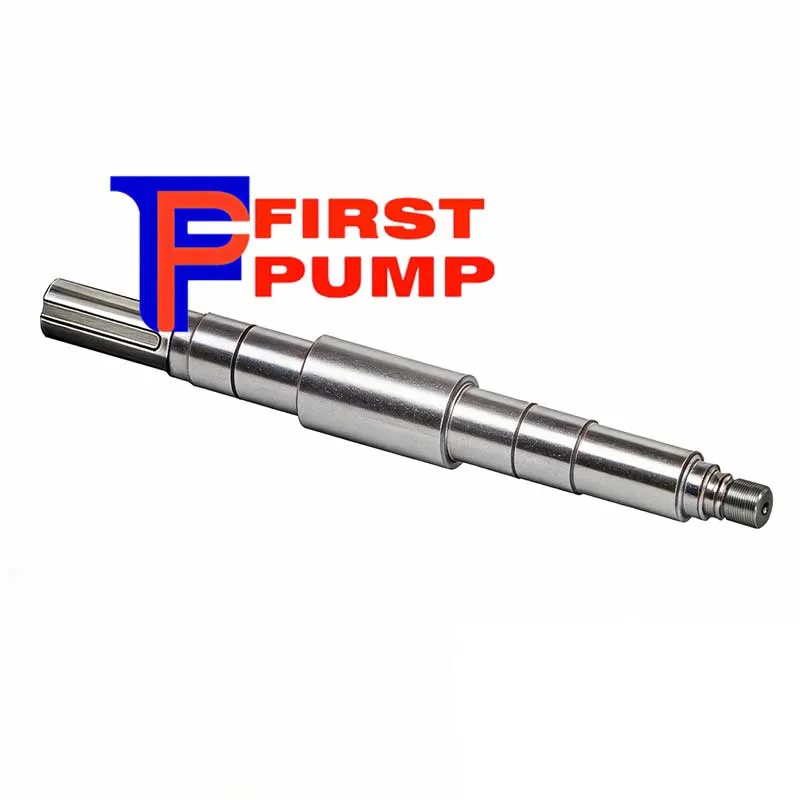

Shaft C073M in Various Materials

Part Name	Part No.	Material
Shaft C073ME05	C073ME05	E05 (Carbon Steel ), 40CrMo, SS316L

Shafts of Material E05 Fit AH Slurry Pumps

Parts List of 3/2C-AH Slurry Pump

S/N	Part Number	Description	Drg No.	Matl	Qty	Unit Weight
1	C075C21	Shaft Sleeve	ESY2391	C21	1	2.52
2	C003MG01	Base	BSY1088	G01	1	45.00
3	C063C23	Lantern Ring	CSY2387	C23	1	1.15
4	C118C23	Lantern Restrictor	ESY3282	C23	1	1.82
5	C067C23	Neck Ring	BSY3099	C23	1	0.35
6	C044C23	Gland Assembly	CSY1594	C23	1	1.03
7	C2032D21	Frame Plate	BSY1910	D21	1	29.50
8	C2013D21	Cover Plate	BSY1552	D21	1	31.00
9	C2147A05	Impeller	CSY1339	A05	1	17.00
10	C2110A05	Volute Liner	A1-16476	A05	1	36.00
11	C2041A05	Frame Plate Liner Insert	CSY1699	A05	1	7.00
12	C117C23	Shaft Sleeve Spacer	ESY2487	C23	1	1.03
13	C078D21	Stuffing Box	CSY2301	D21	1	6.60
14	C028A05	Expeller	DSY3026	A05	1	3.40
15	C029A05	Expeller Ring	CSY2068	A05	1	5.50
16	C015ME65	Cover Plate Bolt W/2 Nuts	A3-14427	E65	4	1.47
17	C109S10	O-ring, Shaft Sleeve	ESY7494	S10	2
18	C217S50	Impeller Seal O-ring	ESY7494	S50	1
19	C2060S01	Intake Joint Ring	ESY3309	S01	1
20	C2132XLPS01	Discharge Joint Ring	ESY7163	S01	1
21	C2125S10	Volute Liner Seal O-ring	ESY7494	S10	1
22	C122R55	Expeller Ring/Stuffing Box Seal	ESY2463	R55	1
23	C108HG02	Piston Ring		G02	1	0.67
24	C109S10	O-ring, Shaft Sleeve	ESY7494	S10	2
25	C138-1E62	Grease Cup Adaptor	ESY2899	E62	1	0.29
26	C004MG01	Bearing Housing		G01	1	21
27	C024-10D81	End Cover		D81	2	2.80
28	C046G01	Grease Retainer		G01	2	0.80
29	C062-10E62	Labyrinth		E62	2	1.70
30	C073ME05	Shaft		E05	1	16.42
31	C061E62	Labyrinth Locknut		E62	1	0.49
32	C045MC23	Gland Bolt, Nut & Washer		C23	2	0.19
33	C011E62	Clamp Washer	HAB-048-82	E62	4	0.33
34	C001E62	Adjusting Screw		E62	1	0.51
35	C039ME62	Frame Plate Stud - 2 Nut		E62	3	0.53
36	C005M	Bearing Assembly	A1-104755		1	35.00
