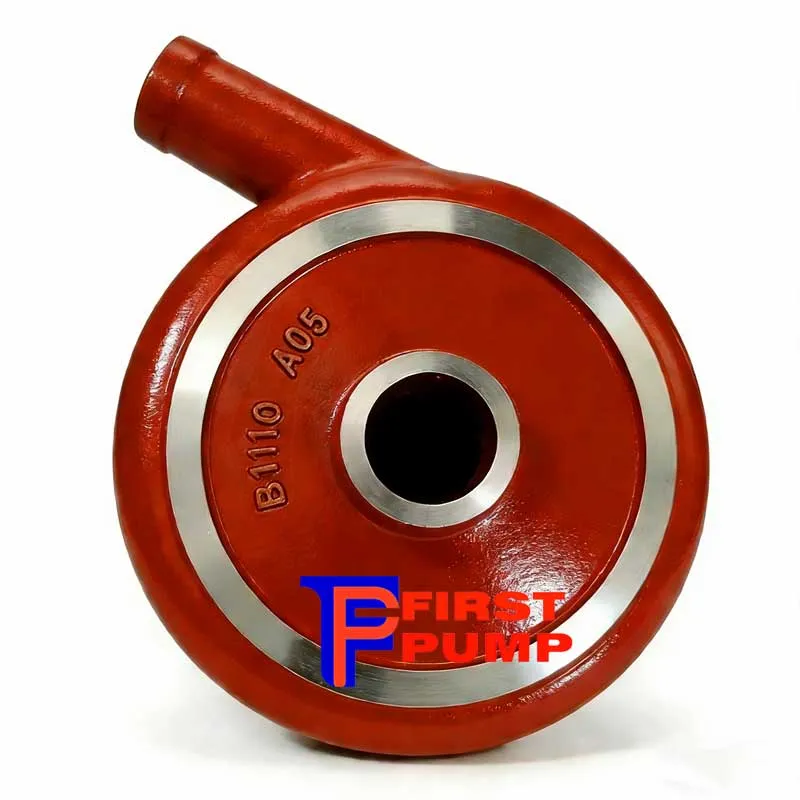

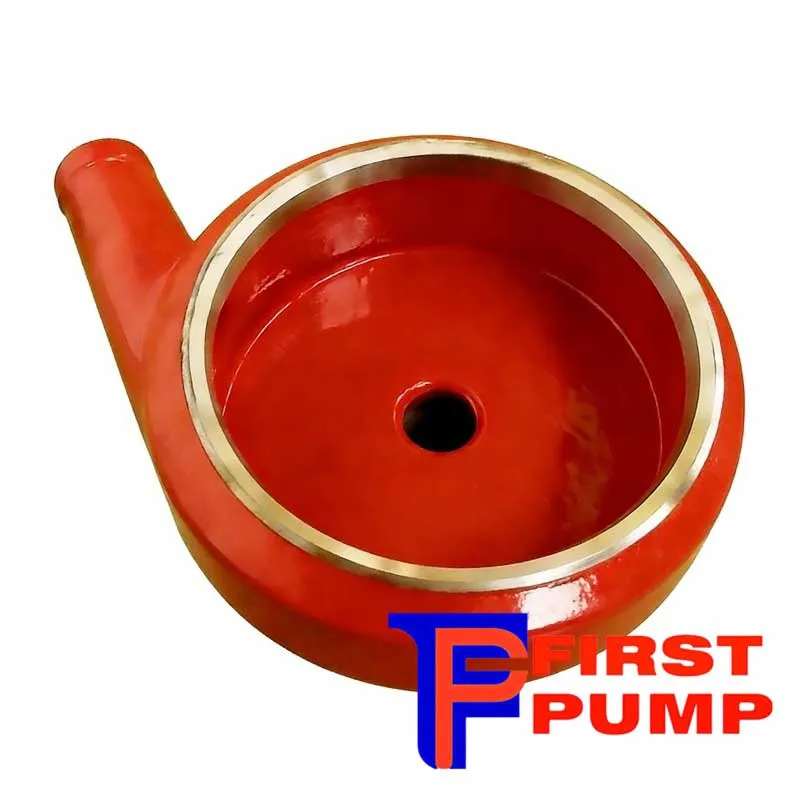

Volute Liner B1110A05

B1110A05

Cr27

58-63

4-12

The anti-scouring performance is second only to A07, and has certain Corrosion resistance.

For corrosion resistant materials with large impact loads Wear, for pH 5-12 working conditions.

Volute Liner B1110A49

B1110A49

Cr30

43

4-14

Has a certain degree of erosion resistance Performance and Low pH Environment Its corrosion resistance and wear resistance Performance is similar to A03.

Suitable for corrosive environments with low pH values Environment, especially suitable for flue gas, Especially suitable for Flue Gas Desulfurization (FGD), for Ph≥ 4 desulfurization device, usually can For use in low acid environments.

Volute Liner B1110A61

B1110A61

Cr30-32

60-67

6-14

Containing 50% chromium carbide. The alloy may provide up to two times the life of Ultrachrome®  A05 alloy

Hypereutectic white iron, suitable for high wear duties. Can effectively be used in the alumina industry, mill discharge applications and tailings pumps, offering a significant life advantage over conventional erosion resistant alloys

Volute Liner B1110A05

AH 1.5/1 B Frame

Volute Liner B15110A05

AH 2/1.5 B Frame

Volute Liner C2110A05

AH 3/2 C Frame

Volute Liner D3110A05

AH 4/3 C, D Frame

Volute Liner E4110A05

AH 6/4 D, E Frame

Volute Liner EP4110A05

AHP 6/4 E Frame

Volute Liner F6110A05

AH 8/6 E, F Frame

Volute Liner G8110A05

AH10/8 F, ST Frame

Volute Liner G10110A05

AH 12/10 F, ST Frame

Volute Liner G12110A05

AH 14/12 F, ST Frame

Volute Liner H14110A5

AH 16/14 TU Frame

Volute Liner U18110TL1A05

AH 20/18 TU Frame

1

B005M

Bearing Assembly

A1-104891

1

34.00

2

B011E62

Clamp Washer

ESY3418

E62

4

0.19

3

B012ME69

Clamp Bolt - 1Nut

ESY7483

E69

4

1.00

4

B217S10

Impeller O-ring

ESY7494

S10

1

5

B1125S01

Volute Frame Seal

ESY7494

S01

1

6

B1032D21

Frame Plate

BSY1720

D21

1

18.50

7

B1110A05

Volute Liner

BSY1467

A05

1

11.50

8

B1132XLPS01

Discharge Joint Ring

ESY7162

S01

1

9

B1060S01

Intake Joint Ring

ESY3328

S01

1

10

B1013D21

Cover Plate

BSY1722

D21

1

15.50

11

B1127A05

Impeller 5VOG

CSY2370

A05

1

3.90

12

B015ME65

Cover Plate Bolt - 2 Nuts

A3-14427

E65

4

1.48

13

B1041A05

Frame Plate Liner Insert

CSY2198

A05

1

3.40

14

B122S51

Expeller Ring/Stuffing Box Seal(Seal Ring)

CYS3308

S51

1

15

Rivet 3*6

GB867-86

H62

4

16

Tag 73*98

HAB020-81-75

1

17

B075C21

Shaft Sleeve

ESY2122

C21

1

1.24

18

B109S10

Shaft O-ring

ESY7494

S10

2

19

B039ME62

Frame Plate Stud - 2Nuts

ESY7224

E62

3

0.35

20

B001ME62

Adjusting Screw(1Bolt, 3Nut, 2Washers)

ESY6245

E62

1

0.28

21

B003MD21

Base

BSY792

D21

1

24.00

22

B044C23

Gland Assembly (2 Piece)

CSY1405

C23

1

0.40

23

B045E62

Gland Bolt - 1Nut - 1Washer

ESY2345

E62

2

0.19

24

Gland Clamp Bolt - 1 Nut

E62

2

25

B111Q21

Packing

ESY7495

Q21

4

26

B078

Stuffing Box

CSY2301

G01

1

3.11

27

B118C23

Lantern Restrictor

ESY2132

C23

1

1.27

28

B117C21

Shaft Spacer

ESY2131

C21

1

0.60

29

A-3

Grease Cup

GB1154-74

A3

1

30

B138-1E62

Grease Cup Adaptor

ESY3423

1

0.11

31

Gland Clamp Bolt -1Nut

E62

2

0.40

32

B111Q21

Packing

ESY7495

Q21

2

33

B029A05

Expeller Ring

CSY1402

A05

1

2.80

34

B028A05

Expeller

DSY3025

A05

1

0.70

35

B067C23

Neck Ring

BSY3099

C23

1

0.38

36

B063C23

Lantern Ring

ESY2118

C23

1

0.73

37

B045E62

Gland Bolt - 1Nut - 1Washer

ESY2345

E62

2

0.19

38

B044C23

Gland Assembly(2 Piece)

CSY1405

C23

1

0.40

39

B062-10D81

Labyrinth

A119920

D81

2

0.80

40

B046G01

Grease Retainer

ESY2114

G01

2

0.43

41

B004MG01

Bearing Housing

CSY1399

G01

1

9.80

42

B009

Bearing

ESY7478

2

1.50

43

B025

FS Shim Set

ESY2111

1

0.20

44

B024-10D81

End Cover

CSY1399

D81

2

1.80

45

B073ME05

Shaft

CSY1409

E05

1

7.79

46

B108G02

Piston Ring

A371734

G02

4

0.50

47

B061E62

Labyrinth Locknut

ESY2116

E62

1

0.36

48

B089-10S10

Bearing Seal Ring

A119582

S10

2

0.10

49

B070ME05

Shaft Key

BSY7482

E05

1

0.10
