FLS millMax Pumps

Key Innovations: Why Choose millMAX?

Proprietary Wear Ring Suction-Side Sealing

• Dual Problem Solver: Eliminates slurry recirculation and solids grinding—common failures in conventional pumps. An adjustable wear ring maintains optimal suction-side clearance during operation, preventing performance degradation and particle damage.

• Efficiency Preservation: Maintains consistent flow and head without speed adjustments, cutting power consumption by up to 30% and extending component life.

Engineered for Longevity & Cost Savings

• Uniform Wear Patterns: Hydraulic optimization and high-grade wear materials (e.g., high chrome white iron) ensure predictable wear, reducing unplanned downtime.

• Robust Bearings: Reverse-taper roller bearings resist over-greasing and slurry ingress, while heavy-duty power frames withstand extreme loads for prolonged service life.

Industry-Leading Adaptability

• Retrofit-Ready Design: Wet ends integrate with competitor power frames for seamless performance upgrades, ideal for comparative testing or retrofits.

• Particle Protection: Critical for diamond and potash industries, preventing solids grinding to preserve product value.

Unmatched Features

• Adjustable Wear Ring Assembly: Enables real-time clearance adjustments during operation to eliminate recirculation.

• Optimized Hydraulics: Concentric casing (millMAX HH) and expelling vanes minimize radial thrust, ensuring stable performance across varying duty ranges.

• High-Pressure Capability: millMAX HP models handle >500 psi (35 bar) with tie-bolt casings for ultrasonic thickness monitoring and proactive maintenance.

• Low Maintenance Design: External adjustment bolts, wide suction-side clearances, and dry-gland seals simplify upkeep and reduce labor costs.

Model Range

millMAX-e (Medium-Duty)

• Compact design with 25% lower power consumption than conventional pumps, ideal for plant-wide applications requiring efficiency and robustness.

millMAX HP (High-Pressure)

• Tie-bolt casing withstands extreme pressures in multi-stage systems, maintaining suction-side sealing even under 500+ psi loads.

millMAX HH (High-Head)

• Concentric casing eliminates radial thrust, perfect for filter press feed and high-head applications, with consistent efficiency across flow/head ranges.

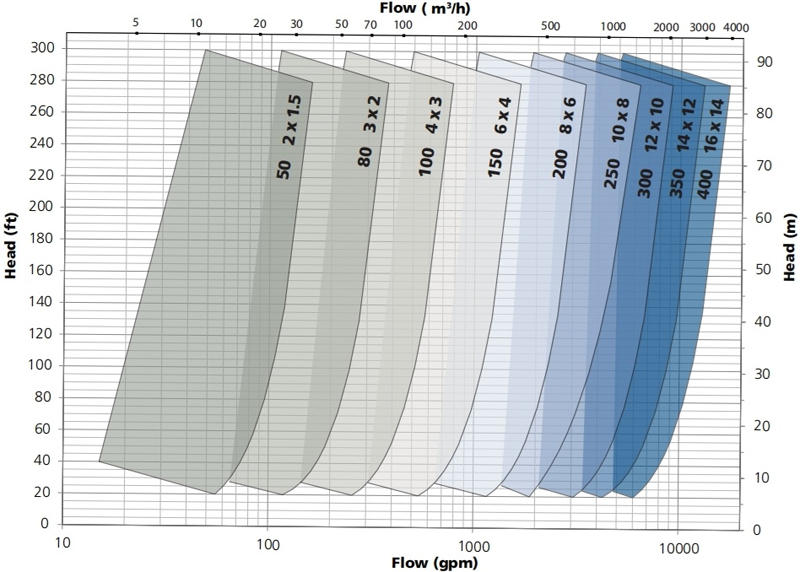

Specifications of FLS millMax Pumps

Quick Selection Chart

Wear Parts Materials

• High Chrome White Iron (A05, A49, A61, etc.) for impellers, volutes, throatbushes, and frame plate liner inserts, ensuring maximum abrasion resistance.

The millMAX Advantage of FLS millMax Pumps

• Lower Total Cost of Ownership (TCO): Reduced energy consumption, maintenance, and downtime translate to lower cost-per-ton of material processed.

• Future-Ready Technology: Lab-tested designs and FLS engineering support ensure optimal pump selection and lifecycle performance.

• Sustainable Efficiency: Minimized power use and component wear align with ESG goals for eco-friendly operations.

Proven Performance Backed by Expertise

• First Pump offers full-service lab testing and application-specific pump selection, leveraging decades of slurry handling expertise to deliver tailored solutions. Trust millMAX Slurry Pumps to outlast, outperform, and outsave—where innovation meets reliability.

Experience the millMAX Difference: Efficiency Uncompromised, Costs Redefined.
