Name: IH Chemical Process Pumps
Brand: Shijiazhuang First Pump Factory Co., Ltd.

IH Chemical Process Pumps

The IH Chemical Processing Pump represents the pinnacle of reliability and efficiency in fluid handling for a wide range of industries. This horizontal, single-stage centrifugal pump is specifically engineered to manage everything from clear water to highly corrosive chemicals, acids, alkalis, solvents, and slurries without solid particles. Built in full compliance with international standards ISO 2858 and ISO 5199, it is the definitive solution for operators seeking superior performance, reduced lifetime costs, and unwavering dependability.

Key Features for IH Chemical Process Pumps

Advanced Hydraulic Design: Delivers optimized performance with 5% higher efficiency and a 2m lower NPSH requirement than legacy pumps, resulting in significant energy savings and greater operational flexibility.
Rear-Door Maintenance: Allows for complete access to the pump's rotating assembly without disconnecting the inlet or outlet pipelines. This innovative design drastically reduces service time and labor costs.
Compact & Lightweight Footprint: The direct motor coupling design (IH-A variant) minimizes space requirements and associated infrastructure expenses.
Enhanced Operational Integrity: An anti-vibration design featuring a steel wire screw sleeve secures the impeller nut against loosening, while reliable closed grease-lubricated bearings or automatic oil compensation systems ensure continuous, long-term operation.
Versatile Impeller Options: Available with close, semi-open, or open impellers to suit a diverse spectrum of fluid handling needs, including those with suspended solids.

Unmatched Reliability in Aggressive Environments

Constructed from premium corrosion-resistant materials such as 316L, 904, and Mo2Ti, the IH pump is built to withstand the most challenging operational conditions. Its robust design ensures long-term durability, minimizing downtime and maintenance costs in aggressive chemical processing environments.

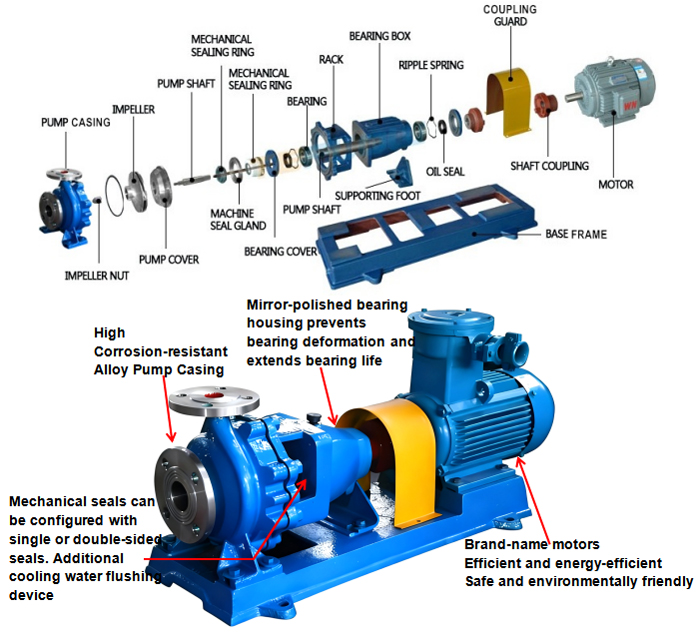

Pump Decomposition of Ih Chemical Process Pumps

Ih Chemical Process Pumps

Broad Application Versatility of IH Chemical Process Pumps

The IH pump is ideally suited for transferring both corrosive and non-corrosive fluids across numerous sectors:

Chemicals & Petrochemicals: Acids, solvents, and hydrocarbons.
Energy & Utilities: Refineries, power stations, and seawater desalination plants.
Industrial Processes: Pharmaceutical manufacturing, paper and pulp production, and sugar refining.
Environmental Management: Wastewater treatment and pollution control systems.
Marine & Offshore: Oil production and shipboard systems.

Technical Specifications of IH Chemical Process Pumps

Capacity	Up to 600 m³/h
Head	Up to 120 meters
Size Range	DN25 to DN200 mm
Speed	1450/2900 RPM (50 Hz)
Temperature Range	-20°C to +160°C
Pressure	Handles system pressures up to 1.6 MPa
Design	Axial suction and radial discharge for stable flow and easy piping integration.
Standards	Certified to ISO 2858 and ISO 5199; flanges comply with GB9113.3-88/HG20595-97.

The Global Standard for Efficiency

Officially endorsed by China's State Administration of Machinery as the preferred replacement for outdated and imported pumps, the IH series combines cutting-edge engineering with global standards compliance. With its proven corrosion resistance, modular design, and low-maintenance operation, it offers a cost-effective and high-performance solution for your most critical fluid transfer challenges.

Why Choose IH Chemical Process Pumps?

For unmatched performance in refineries, desalination plants, and chemical processing facilities worldwide, trust IH Pumps to deliver operational versatility and enduring reliability.

Custom configurations are available to meet specialized requirements.
