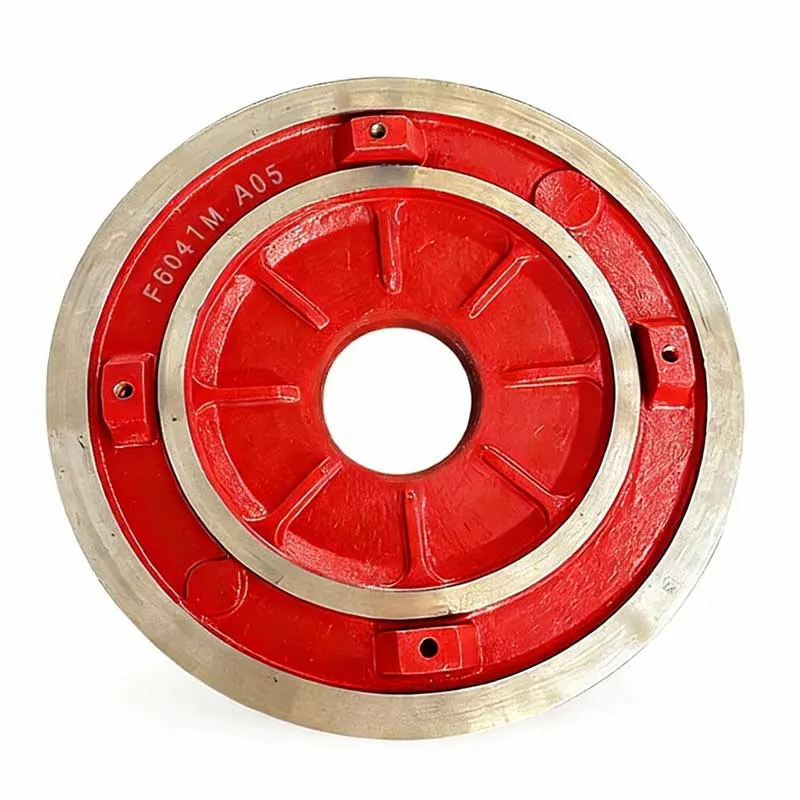

Frame Plate Liner Insert F6041A05

F6041A05

Cr27

58-63

4-12

The anti-scouring performance is second only to A07, and has certain Corrosion resistance.

For corrosion resistant materials with large impact loads Wear, for pH 5-12 working conditions.

Frame Plate Liner Insert F6041A49

F6041A49

Cr30

43

4-14

Has a certain degree of erosion resistance Performance and Low pH Environment Its corrosion resistance and wear resistance Performance is similar to A03.

Suitable for corrosive environments with low pH values Environment, especially suitable for flue gas, Especially suitable for Flue Gas Desulfurization (FGD), for Ph≥ 4 desulfurization device, usually can For use in low acid environments.

Frame Plate Liner Insert F6041A61

F6041A61

Cr30-32

60-67

6-14

Containing 50% chromium carbide. The alloy may provide up to two times the life of Ultrachrome^® A05 alloy

Hypereutectic white iron, suitable for high wear duties. Can effectively be used in the alumina industry, mill discharge applications and tailings pumps, offering a significant life advantage over conventional erosion resistant alloys

Frame Plate Liner Insert B1041A05

AH 1.5/1 B Frame

Frame Plate Liner Insert B1541A05

AH 2/1.5 B Frame

Frame Plate Liner Insert C2041A05

AH 3/2 C Frame

Frame Plate Liner Insert D3041A05

AH 4/3 C, D Frame

Frame Plate Liner Insert E4041A05

AH 6/4 D, E Frame

Frame Plate Liner Insert F6041A05

AH 8/6 E, F Frame

Frame Plate Liner Insert G8041A05

AH10/8 F, ST Frame

Frame Plate Liner Insert G10041A05

AH 12/10 F, ST Frame

Frame Plate Liner Insert G12041A05

AH 14/12 F, ST Frame

Frame Plate Liner Insert H14041A05

AH 16/14 TU Frame

Frame Plate Liner Insert U18041TL1MA05

AH 20/18 TU Frame

1

D138-1E62

Grease Cup Adaptor

ESY2899

E62

1

0.29

2

F064S10

Impeller Seal O-ring

ESY7494

S10

1

3

E109S10

O-ring, Shaft Sleeve

ESY7494

S10

2

4

EAM6032D21

Frame Plate

BSY1546

D21

1

250.00

5

F6013D21

Cover Plate

ESY1138

D21

1

259.50

6

F6147A05

Impeller

BSY1158

A05

1

190.00

7

F6110A05

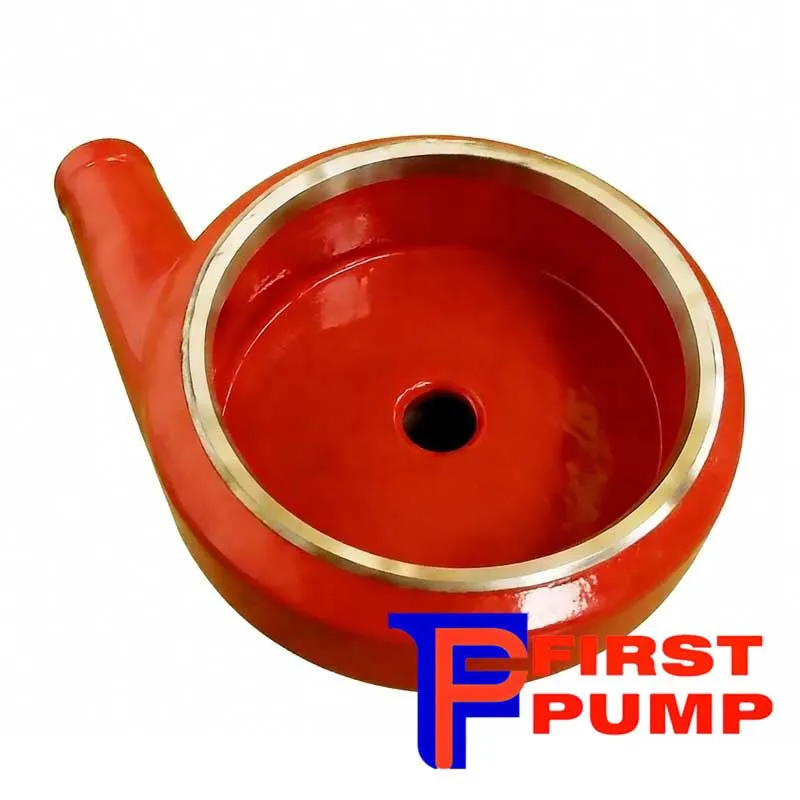

Volute Liner

A1-16732

A05

1

282.00

8

F6083A05

Throatbush

BSY1697

A05

1

117.50

9

F6041A05

Frame Plate Liner Insert

CSY4032

A05

1

84.00

10

E075C21

Shaft Sleeve

ESY1052

C21

1

10.44

11

EAM117C23

Shaft Sleeve Spacer

ESY2289

C23

1

6.02

12

EAM078G01

Stuffing Box

CSY2291

G01

1

41.00

13

EAM028A05

Expeller

CSY1830

A05

1

8.20

14

EAM029A05

Expeller Ring

CSY2307

A05

1

17.60

15

E003MG01

Base

BSY290

G01

1

154.00

16

E063C23

Lantern Ring

ESY2828

C23

1

2.87

17

E118C23

Lantern Restrictor

ESY3082

C23

1

4.08

18

E067C23

Neck Ring

ESY3790

C23

1

0.96

19

E044C23

Gland Assembly

CSY2081

C23

1

3.80

20

F6081E62

Keeper Plate

A4-102884

E62

1

0.39

21

F6015ME65

Cover Plate Bolt W/2 Nuts

HAB052-82

E65

4

4.30

22

E122S10

Expeller Ring/Stuffing Box Seal

ESY6473

S10

1

0.75

23

F6060S01

Intake Joint Ring

ESY2638

S01

1

24

F6132XLPS01

Discharge Joint Ring

ESY7145

S01

1

25

F8124S01

Volute Cover Seal

ESY2284

S01

1

26

E004MG01

Bearing Housing

G01

1

58.00

27

E024-10D81

End Cover

D81

2

7.00

28

E046G01

Grease Retainer

G01

2

3.60

29

E062-10E62

Labyrinth

E62

2

3.90

30

EAM073ME05

Shaft

E05

1

70.19

31

E061E62

Labyrinth Locknut

E62

1

1.41

32

E045MC23

Gland Bolt, Nut & Washer

C23

2

0.27

33

E011E62

Clamp Washer

HAB048-82

E62

4

0.74

34

E001XLME62

Adjusting Screw

HKB049-82

E62

1

1.51

35

F6085E02

Cotter

HKB050-82

E02

2

0.67

36

SBB051-82

Frame Plate Stud - 2 Nut

HKB051-82

E65

3

1.00

37

F108G01

Piston Ring

G01

1

38

EAM005M

Bearing Assembly

A1-104706

1

122.00
