Name: FAF Vertical Froth Pumps
Brand: Shijiazhuang First Pump Factory Co., Ltd.

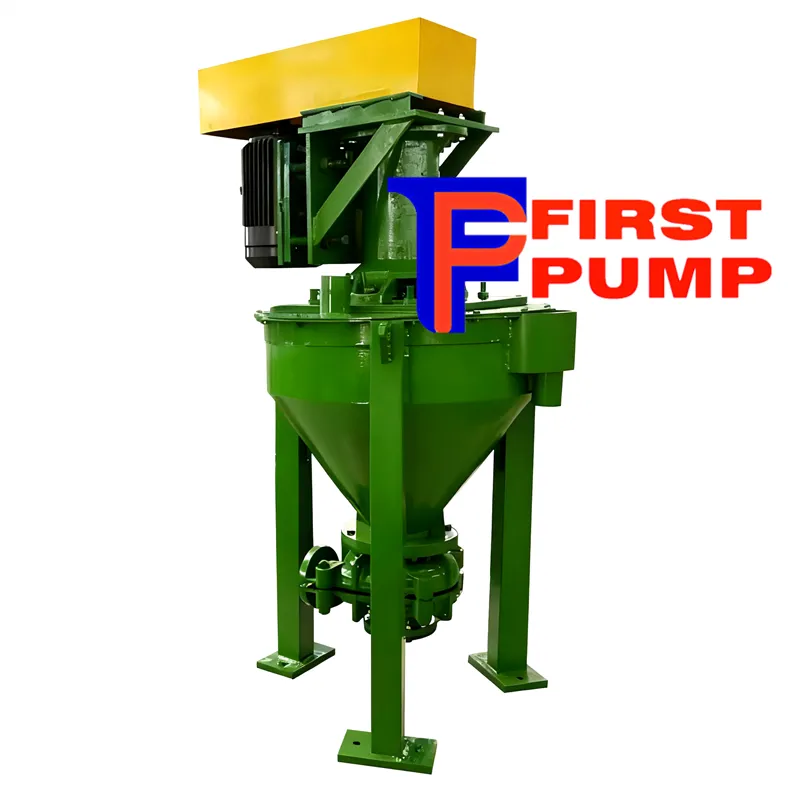

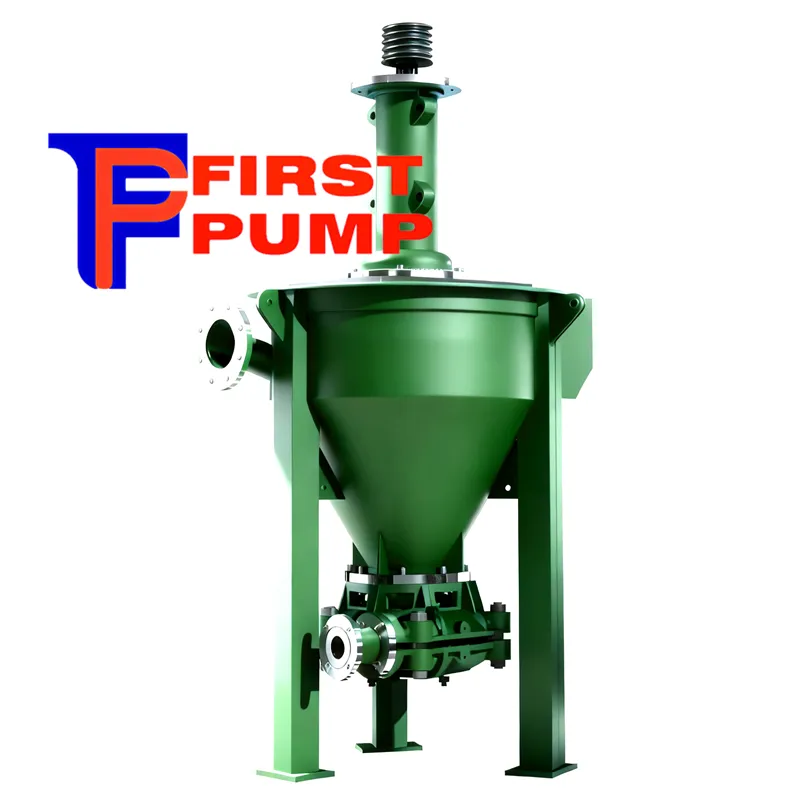

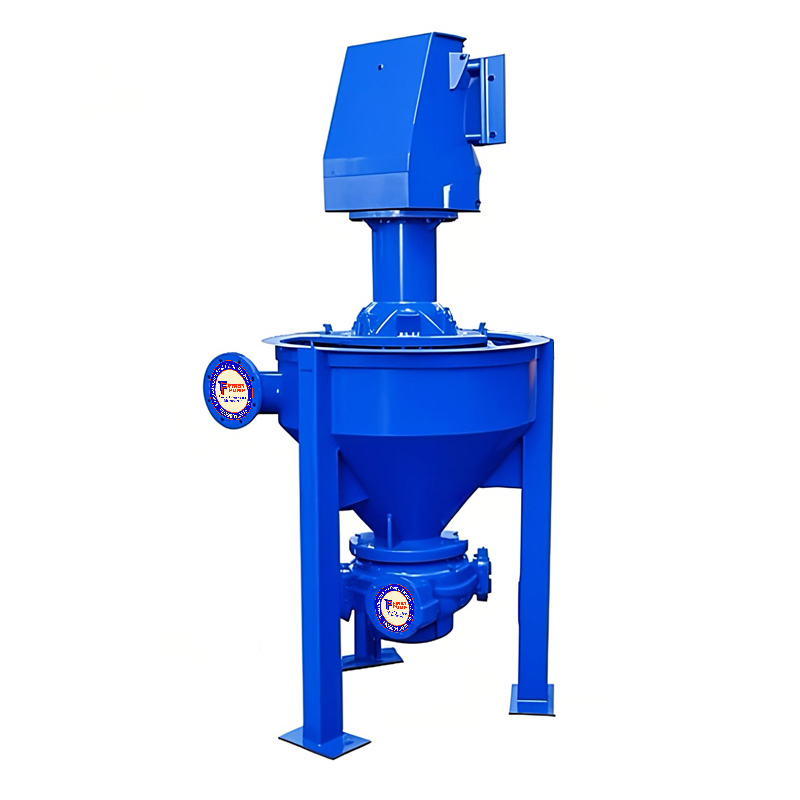

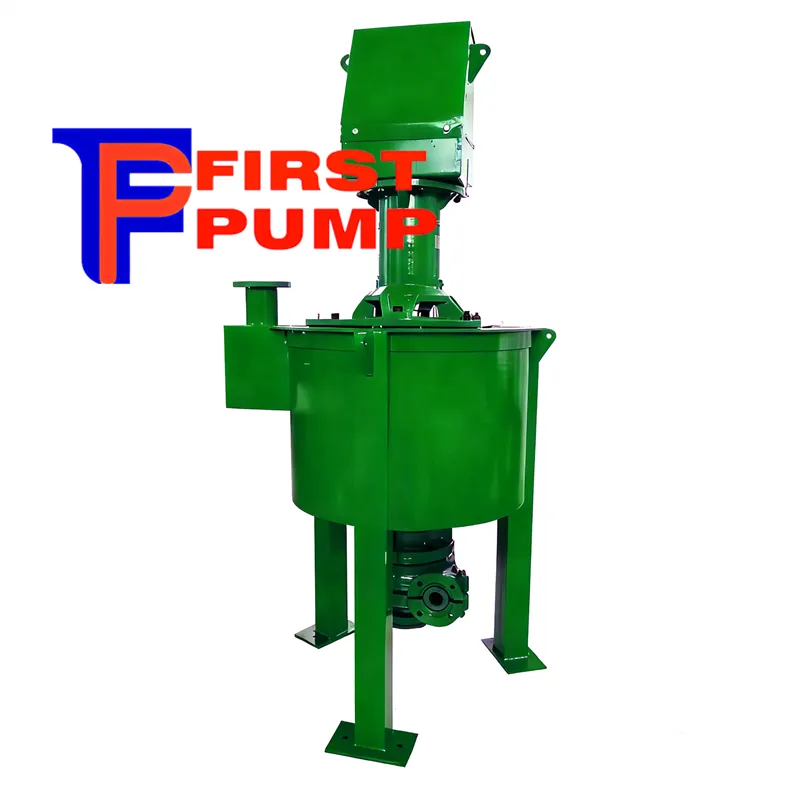

FAF Vertical Froth Pumps

FAF Series Vertical Froth Pumps represent the latest generation of froth handling technology, integrating advanced domestic and international innovations. Engineered to efficiently pump frothy slurries, these pumps utilize an induced vortex principle to de-aerate or partially de-aerate the froth before it enters the pump head, enhancing operational efficiency and reducing air-induced performance losses.

Designed as double-casing vertical pumps with a hopper, FAF models feature replaceable abrasion-resistant high-chrome white-iron or moulded rubber casing liners and impellers, ensuring durability in abrasive or corrosive environments. The hopper-tank, fabricated from steel plate, can be lined with specialized materials based on the medium being pumped, offering versatile adaptability to diverse industrial needs.

Typical Applications of FAF Vertical Froth Pumps

FAF Vertical Froth Pumps excel in industries requiring the transport of frothy, abrasive, or corrosive slurries, including:
Iron, copper, gold, and molybdenum ore dressing plants
Potash fertilizer and mineral processing facilities
Metallurgy, coal chemical, paper, and pulp industries
Flotation processes and other froth-intensive applications
Materials of Construction

Component	Standard Materials	Optional Materials
Liners	Chrome Alloy, Natural Rubber	Ferralium, Hastelloy C, 316 SS, W151, Polyurethane, Neoprene, Butyl, Viton, etc.
Impellers	Chrome Alloy, Natural Rubber	Ferralium, Hastelloy C, 316 SS, W151, Polyurethane, Neoprene, etc.
Casing	SG Iron	SG Iron (various grades), MS, Cast Iron
Base	SG Iron	MS (fabricated), Cast Iron
Expeller	Chrome Alloy, SG Iron	NI Resist, Ferralium, Hastelloy C, Polyurethane, 316 SS, etc.
Expeller Ring	Chrome Alloy, SG Iron	NI Resist, Ferralium, Hastelloy C, 316 SS, Rubber, etc.
Shaft Sleeve	SG Iron	EN56C, Ferralium, Hastelloy C, Titanium, 316 SS, 304 SS
Seals	Rubber, Nitrile	Ceramic, Stellite, Chrome Oxide, Nordel, Neoprene, Viton, etc.

Key Design Features of FAF Vertical Froth Pumps

Superior Performance & Reliability:

Easy assembly and disassembly for minimal maintenance.
No requirement for shaft seals or sealing water, reducing operational costs and complexity.

Flexible Drive Systems:

Available with direct connection or belt drive configurations.
Belt and pulley systems can be easily adjusted to modify pump speed, adapting to changing operational conditions.

Versatile Installation:

Discharge branches can be positioned at 45° intervals, offering eight orientation options to suit various installation setups.

Robust Construction:

Double-casing design with replaceable liners for extended service life.
Tangential inlet for smooth material flow and froth removal, paired with an overflow box to return excess material to the pond.

Model Explanation

Outlet Diameter Range: 50–200 mm

Capacity Range: 6–575 m³/h

Head Range: 5–30 m

Performance Parameters of FAF Vertical Froth Pumps

Model	Power (kW)	Capacity (m³/h)	Head (m)	Speed (r/min)	Efficiency (%)	Inlet Diam. (mm)	Outlet Diam. (mm)
2QV-AF	3–15	6–43	6–30	800–1800	45	100	50
3QV-AF	3–18.5	23–78	5–28	700–1500	55	150	75
4RV-AF	5.5–37	33–187	5–28	500–1050	55	150	100
6SV-AF	15–75	80–393	5–25	250–680	55	200	150
8SV-AF	37–110	126–575	5–26	350–650	55	250	200

Drive System
DC Direct Connection Drive
BD Vertical Belt Drive (enables easy speed adjustment via pulley replacement)

Product Advantages of FAF Vertical Froth Pumps

FAF Vertical Froth Pumps stand out for their ability to operate efficiently even under low-flow conditions, making them ideal for flotation processes and applications where froth management is critical. Their robust design, combined with customizable material options and flexible installation, ensures reliable performance in some of the most demanding industrial environments.

For detailed specifications or application-specific inquiries, contact our technical team for personalized solutions.
