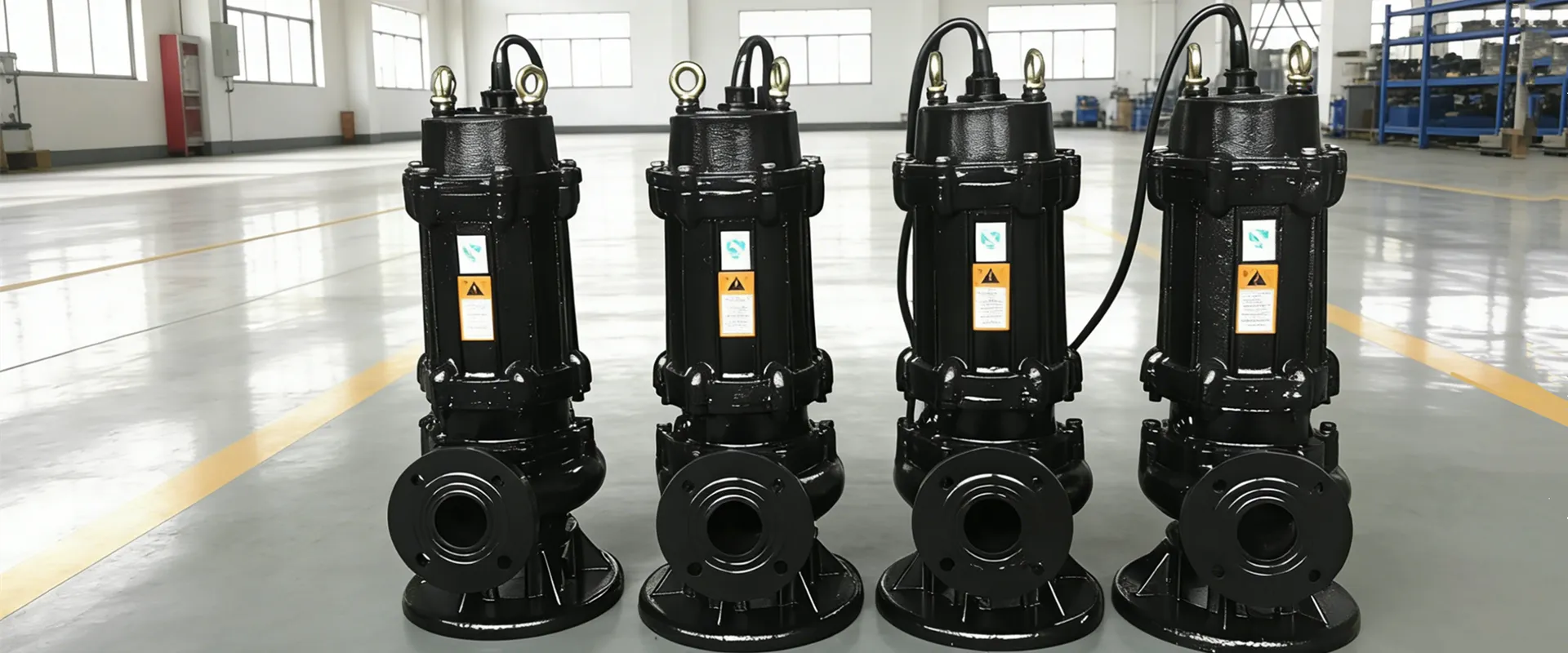

Types of Sewage Pumps

KSB KWP Non-clogging Centrifugal Pumps

Sewage Pump vs. Sump Pump: Choosing the Right Protection

The Key Differences

The Source of Water: A sump pump is your defense against nature. It handles "clear water" (rainwater or groundwater) that seeps into your foundation. A sewage pump handles "black water"—the waste from basement toilets, laundry, and sinks that must be pushed uphill to the main sewer line.

Solid Handling: This is the biggest mechanical distinction. Sump pumps are designed for liquid only; even small debris can ruin the impeller. Sewage pumps are robust "solids-handling" machines, often capable of passing waste up to 2 inches in diameter without clogging.

Basin Design: Because sewage contains hazardous gases and odors, sewage pumps must be installed in a hermetically sealed basin with a dedicated vent pipe leading outdoors. Sump pits are typically open or have a simple, non-airtight cover.

Signs You Need to Repair or Replace Your Sewage Pump

Unusual Noises: While no pump is silent, grinding, clanging, or thumping sounds often signal a jammed impeller or worn-out bearings.
Frequent Cycling or Continuous Running: If the pump turns on and off every few minutes, or never stops at all, you likely have a faulty float switch or a check valve that is stuck open.
Foul Odors: Persistent sewage smells near the basin suggest a breach in the airtight seal or a pump that is failing to move waste effectively, allowing solids to accumulate.
Slow Drains or Backups: If multiple toilets and sinks are draining slowly, the pump may have lost its "head" pressure or is partially clogged.
Age of the Unit: Most residential sewage pumps have a lifespan of 7 to 10 years. If yours is in this range and requires frequent repairs, replacement is usually the more cost-effective choice.

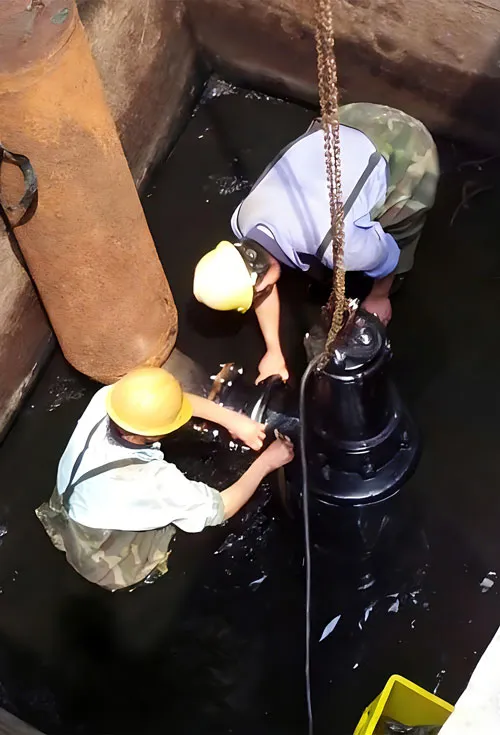

Reasons and Solutions for Submersible Sewage Pump Failing to Lift Water

Fault Phenomenon	Possible Causes	Troubleshooting Methods
No Water Output at All	1. Power Supply & Starting Fault: Power phase loss; low voltage; broken cable or winding; blown fuse or poor switch contact in control cabinet.	Check power connections, switches, and fuses. Use a multimeter to measure voltage and resistance. Repair broken circuits.
	2. Pump Not Primed / Air Pocket: Pump body or suction pipe not fully filled with water, containing air.	Stop the pump. Completely fill the pump body and suction pipe with water before restarting.
	3. Impeller Jammed or Pump Shaft Issue: Impeller jammed by entangled debris; bent pump shaft or seized bearing.	Hoist the pump out. Clean debris from the impeller. Disassemble for inspection; straighten or replace the pump shaft/bearing.
	4. Pump Running in Reverse: Incorrect power phase sequence causes impeller to rotate backward.	Swap any two of the three power supply wires.
Insufficient Flow Rate	1. Inlet Blockage or Leakage: Impeller, pump body, or foot valve blocked by debris; air leak in suction pipeline, flange, or seal.	Remove blockage. Inspect pipelines; apply sealant to leaks or tighten bolts.
	2. Worn Impeller or Seal: Impeller cavitation or wear; severely worn wear ring (seal ring) causing increased internal leakage.	Replace the worn impeller or wear ring.
	3. Improper Installation/Operating Conditions: Actual head exceeds pump's rated head; insufficient submersion depth of inlet.	Replace with a pump of higher head, or reduce the actual system head. Ensure the pump is installed below the dynamic water level.
	4. Medium Issue: Density or viscosity of the pumped liquid is too high.	Dilute the medium with water or replace with a more suitable pump model.

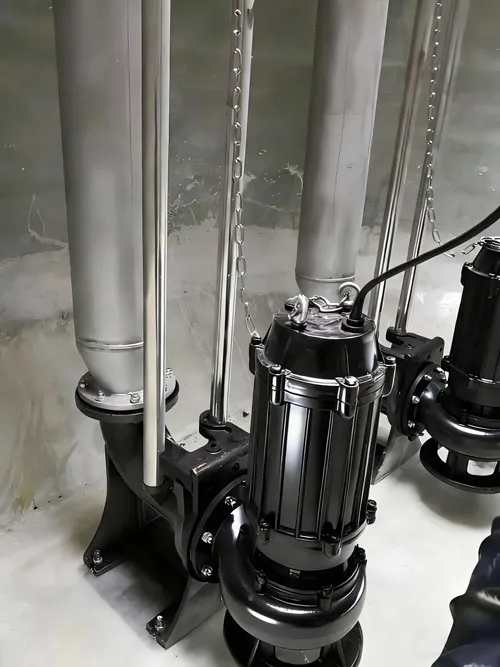

Introduction to Automatic Coupling Installation of Submersible Sewage Pumps

Submersible sewage pumps are mainly installed via the automatic coupling method, which uses precision components to realize quick, accurate and reliable pump installation and removal. Details are as follows:

I. Core Components

1. Quick-connect coupling: Connects the pump to the system with bolts for stability.

2. Discharge base plate: Supports the pump and discharge channel, fixed in the sump by anchor bolts for positioning.

3. Guide rails: Guide the pump to slide to the installation position smoothly.

4. Guide rail positioning brackets: Secure rails to ensure stability and alignment.

II. Installation Process

1. Fix the discharge base plate, guide rails and brackets in the sump.

2. Connect the pump to the quick-connect coupling with bolts.

3. Guide the pump to slide down the rails until it touches the base plate’s coupling sealing surface.

4. The pump’s own weight achieves automatic compression and sealing.

5. Complete flange connection and rely on rubber seal rings between the pump outlet and base plate for enhanced sealing.

III. Features & Advantages

1. Rational structure: Ingenious design ensures quick and accurate installation.

2. Easy assembly & disassembly: No complex tools, improving efficiency and reducing maintenance costs.

3. Reliable sealing: Rubber seal rings compressed by the pump’s weight prevent leakage.

4. Strong adaptability: Suitable for various sumps and confined spaces with a compact footprint.

Introduction to Automatic Coupling Installation of Submersible Sewage Pumps
